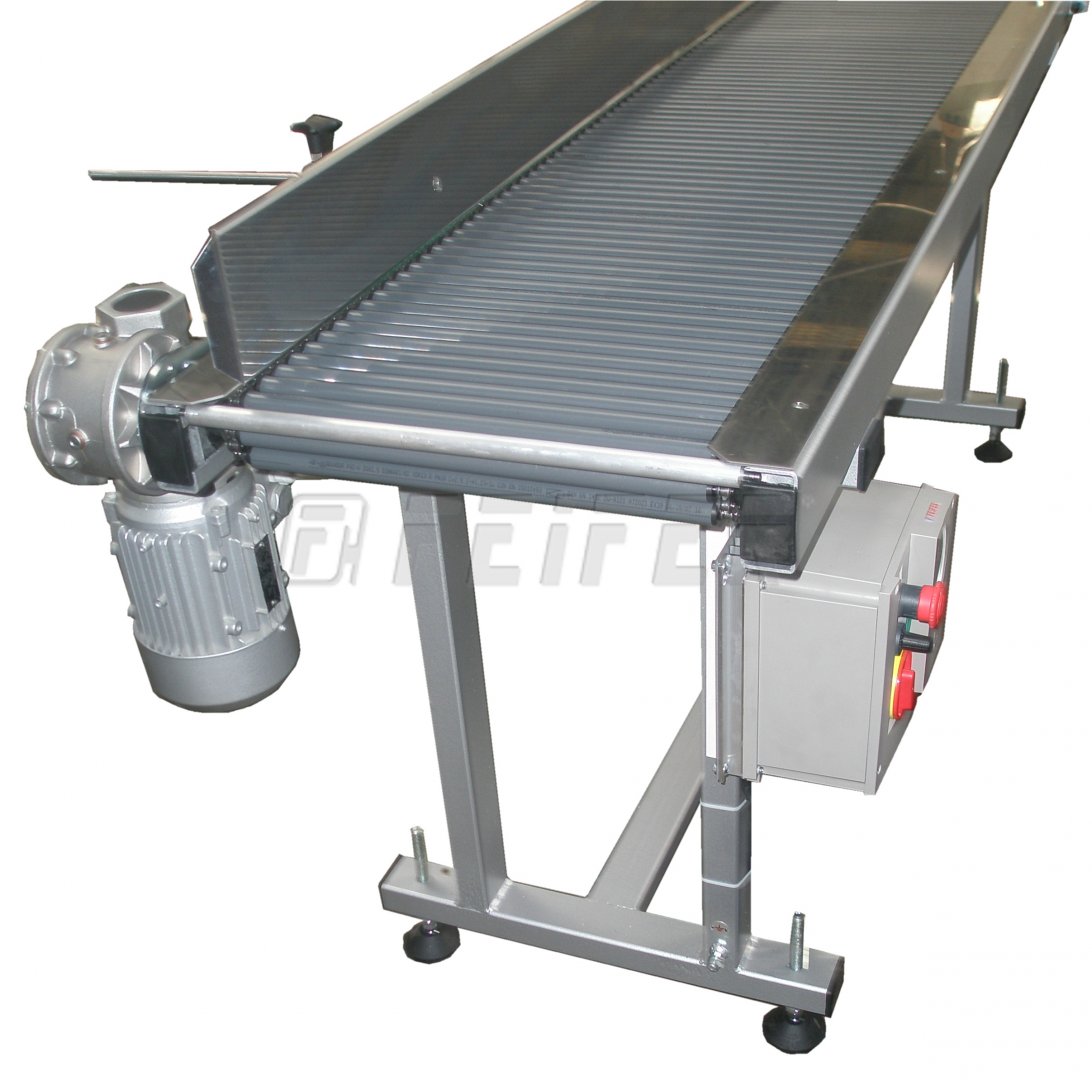

Driven roller conveyor 5000x400 mm

The roller conveyor except standard features of the motor driven conveyor with a chain drive. This type is equipped with soft slip of rollers, which enables fluent speed compensation among individual technical operations with different working speed or in clock mode. It is possible to use this conveyor for accumulation of goods in mode of vairable speed. On customer´s demand it is possible to equip the conveyor with an adjustable railing, speed range different from standard parameters or end stop of goods. It is possible to deliver this conveyor for electric power source 230V/50Hz. In standard modification the conveyor is equipped with plastic rollers - on customer´s demand the conveyor could be equipped with steel zinc rollers. It is also possible to deliver the conveyor with length and active width according to customer´s demand. Heigh of conveyor on input and output - according to customer requirements.

Technical parameters
Inquiry

Technical parameters

ordering code 600 000366
supply voltage 400V/50Hz
weight 180 kg
max. loading between 2 legs 40 kg
transporting speed 8 - 18 m/min.
conveyor length 5 000 mm
roller diameter 20 mm
working conveyor width 400 mm

Standard modifications
