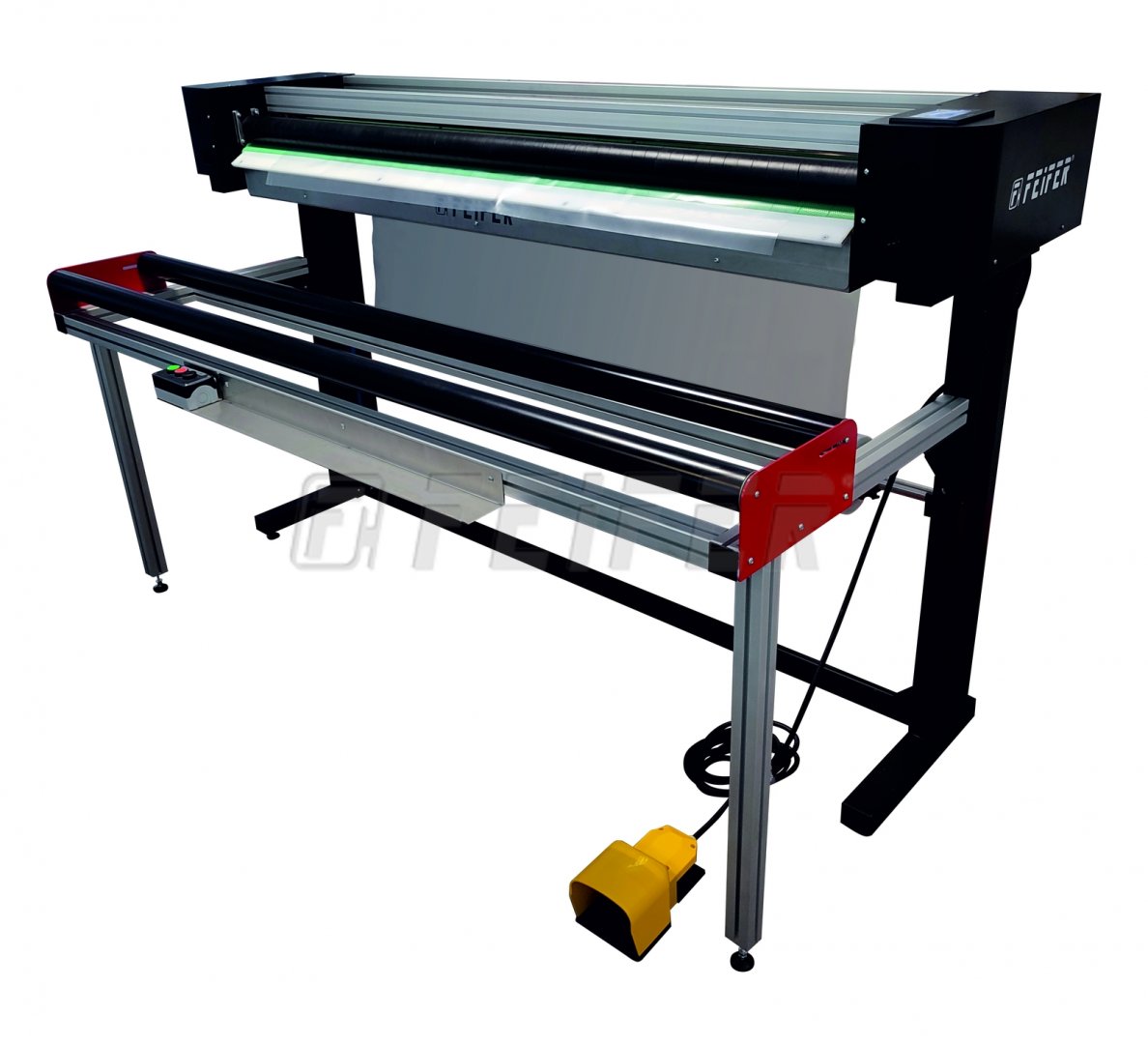

Electric cutting stand - RHE-1500 CrystalCut
The motorized cutting stand with unwinding and measuring for rolled packaging materials will find its application mainly in your packaging and despatching departments, with higher demands for cutting materials such as corrugated cardboard, packaging paper or different kinds of film (incl. bubble and foam films).
Features of the machine:
- motorized unwinding and cutting
- fast and precise cutting of various rolled materials
- simple and user-friendly control using the touch panel
- suitable for automatic production of sheets
- adjustable speed of unwinding and cutting
- five user adjustable programs
- quick replacement of blades
- quick adjustment to new production
- silent operation
- mechanical material unwinding brake
- designed for medium cutting capacity
- modular construction
- the possibility of modifications according to the customer's wishes
Options and modifications:
- different working widths (1250, 1500, 2000 mm)
- special blades for even better cutting or perforation of certain materials
- roller table for packing rolls
- casters for increased mobility
- modification with longitudinal cutting
Technical parameters
Product videos
Inquiry
Technical parameters
ordering code | 600 002723 |
max. working width | 1500 mm |
cutting accuracy | +/- 3 mm (platí pro plochou PE fólii nad tl. 0,06mm) |
thickness of the material | 6 mm |
max. diameter of roll | 800 mm |
max. roll weight | 100 kg |
dimension (l x w x h) | 2110 x 980 x 1275 mm |
working desk height | 900 mm |
supply voltage | 230 V / 50 Hz |
power input | 0,3 kW |
noise level of machine | ≤75 dB |
machine weight | 100 kg |
