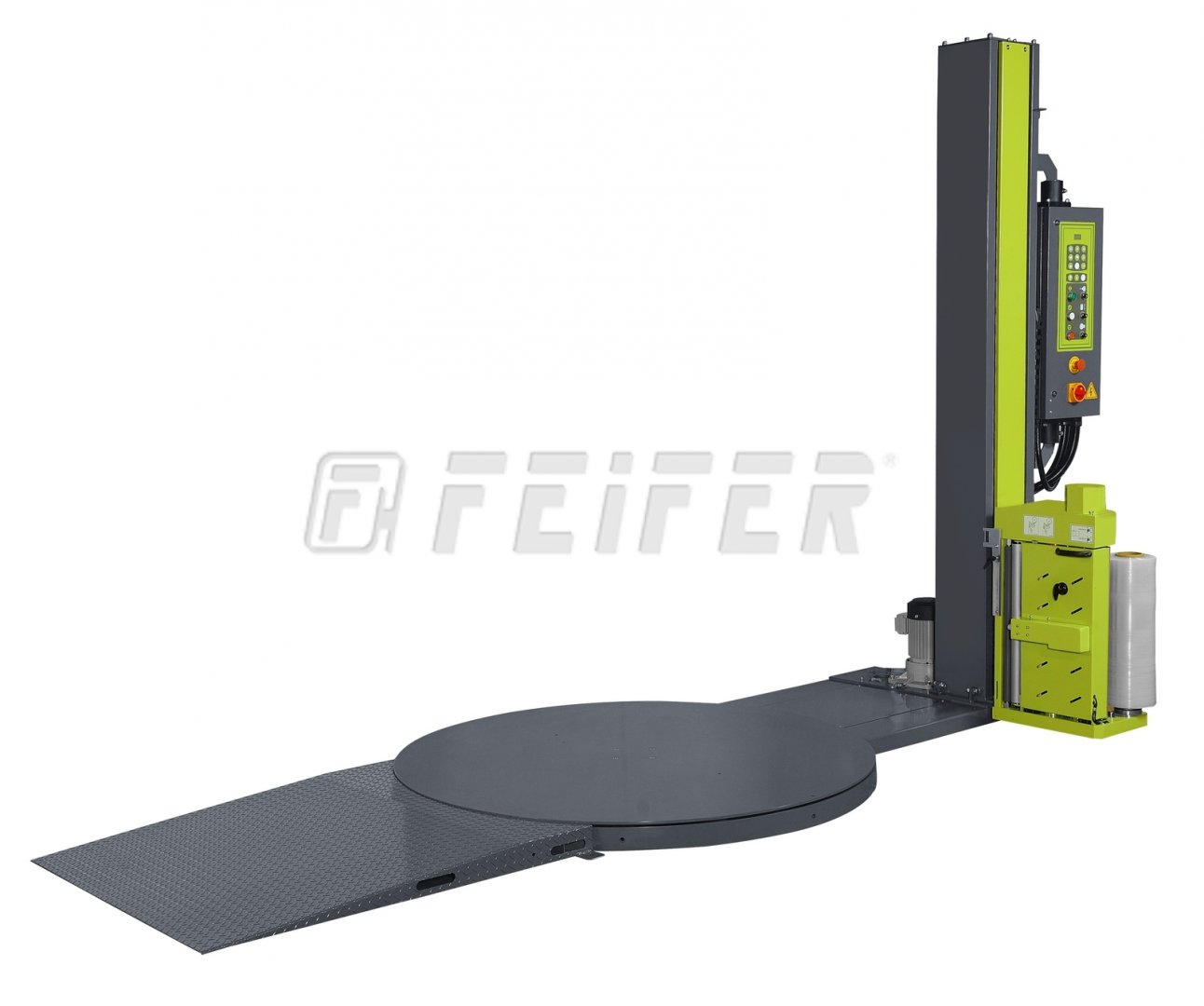

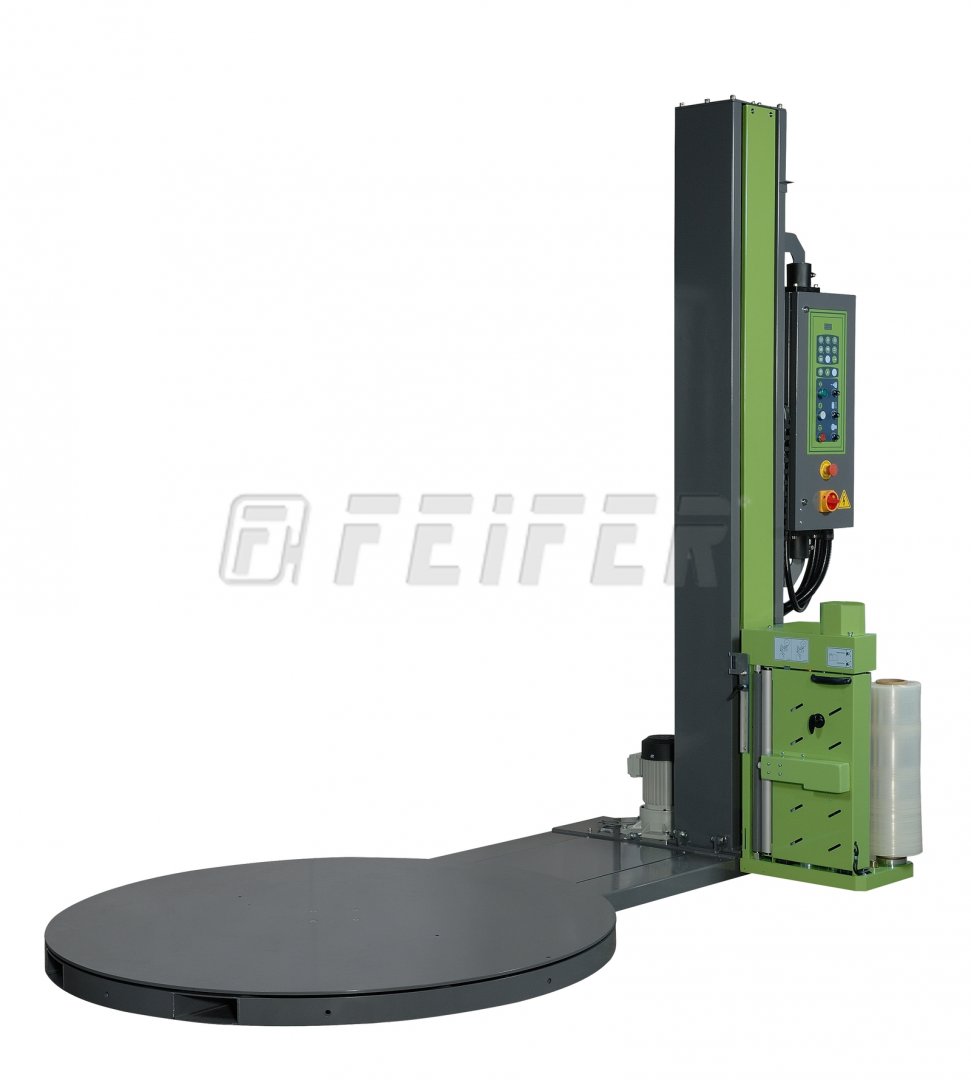

EXP-108 - pallet stretch wrapping machine

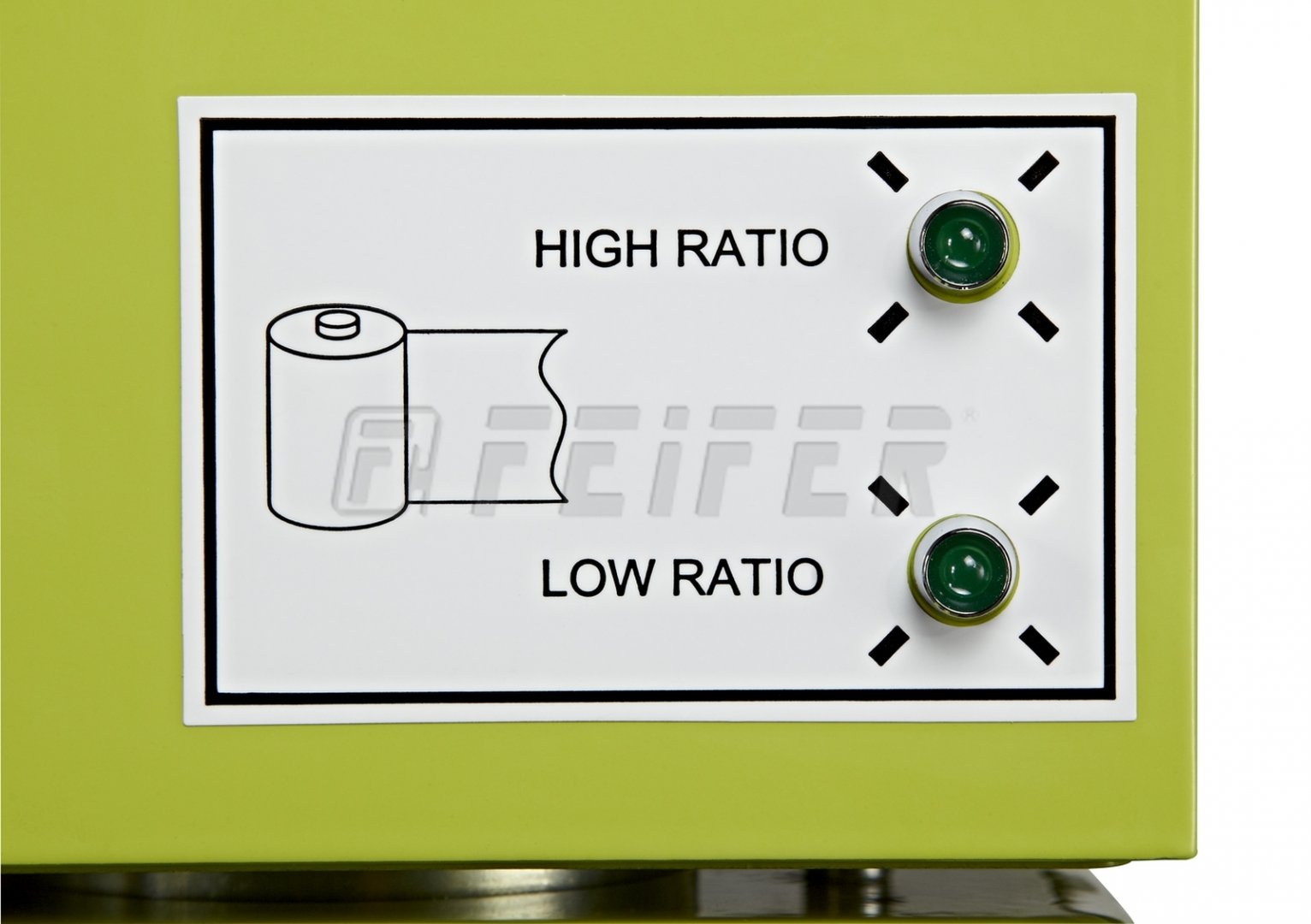

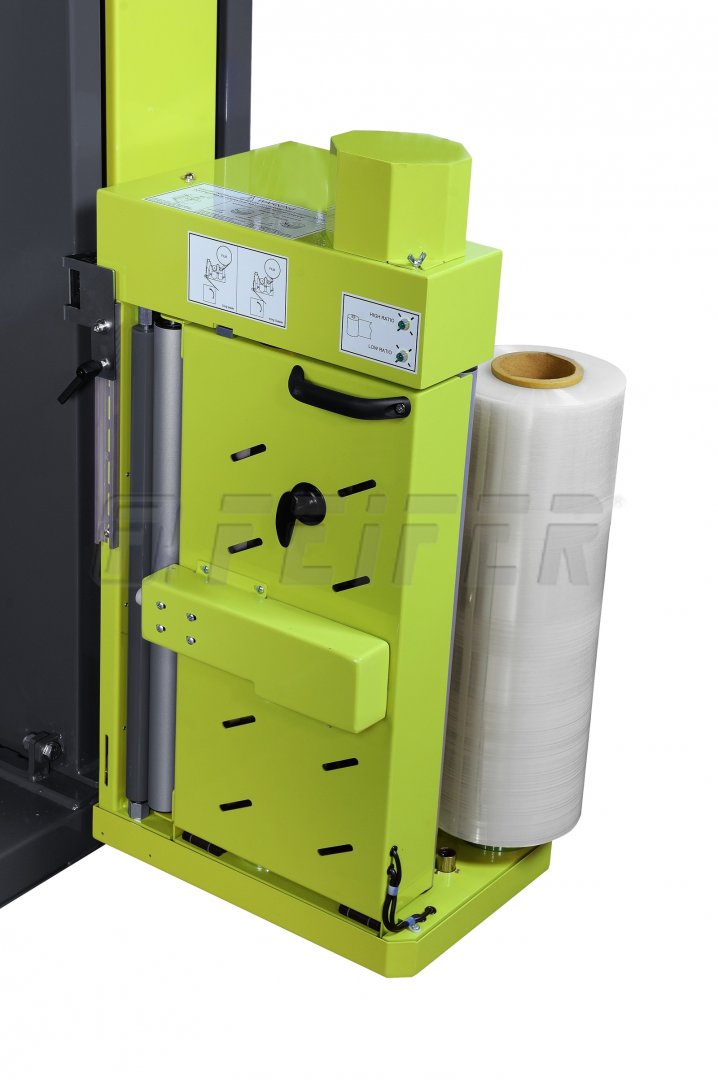

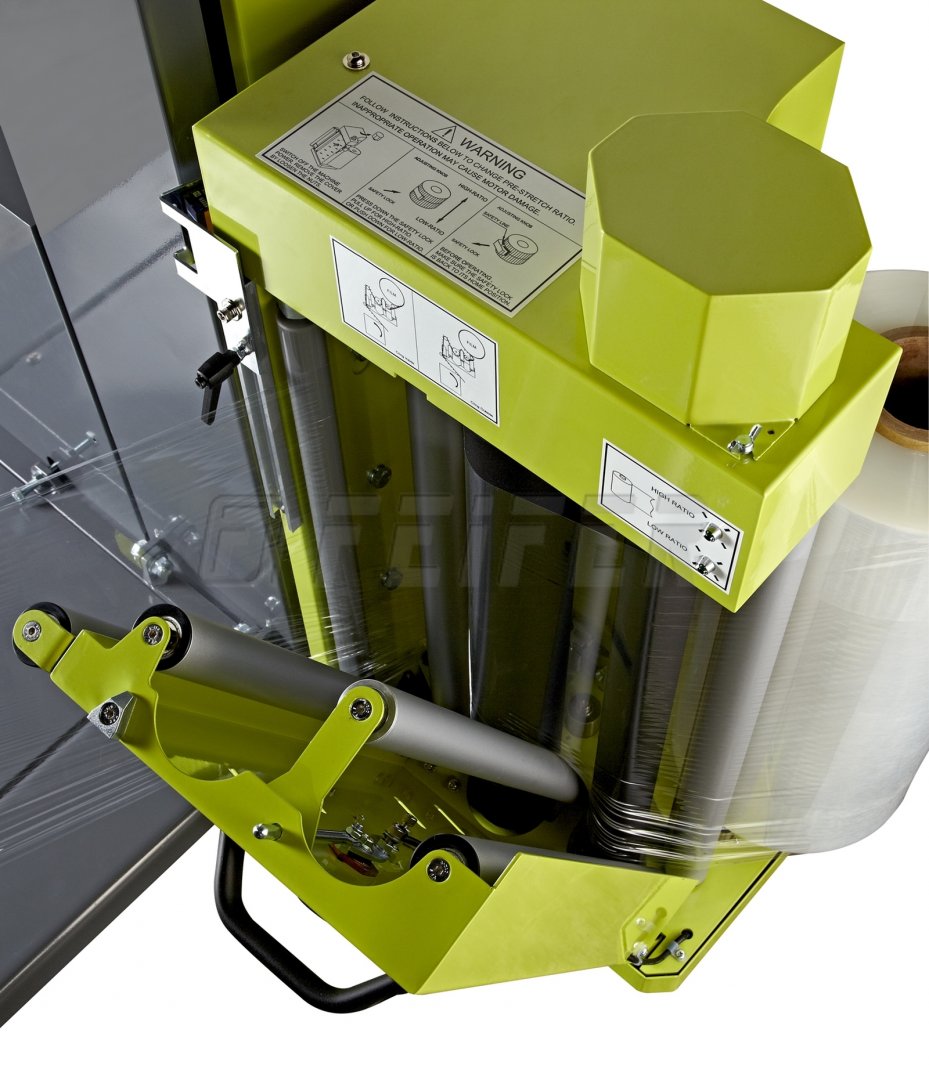

Automatic pallet stretch wrapping machine EXP-108 is suitable for medium or high frequency wrapping jobs (up to 30 pallet/hour). The machine is equipped in standard with 3 automatic programs “One Touch” and power pre-stretch of film with adjustable pre-stretch – 230% or 300% (1 meter film can be pre-stretched to 4 meters).
Other equipment includes:
- automatic film cut after finishing wrapping cycle
- built-in service diagnostics
- precise home position - the turntable always stops at the same position
- slow start and stop of the turntable

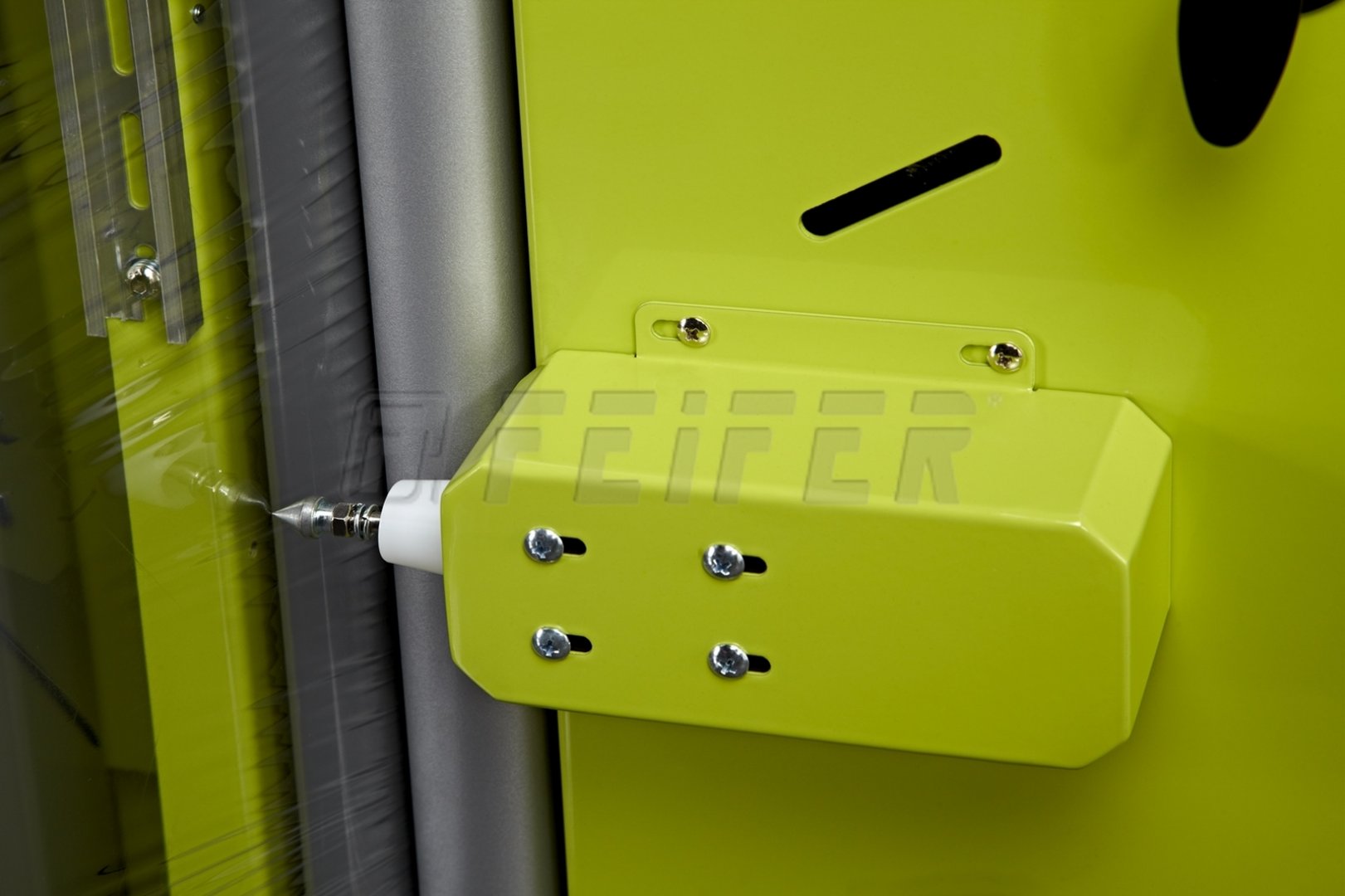

- pallet height seeking by photo sensor
- fluent regulation of speed of turntable and film elevator unit
- fluently adjustable film tension
- numbers of film turns are adjustable

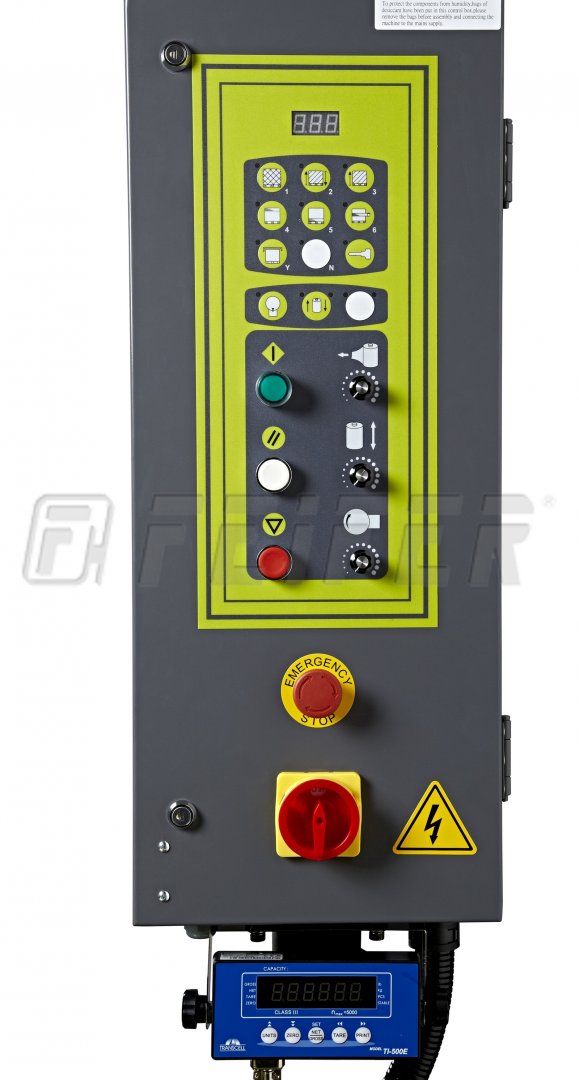

- programming and communication with control unit by mini-display and keyboard
Technical parameters
Modification
Packing material
Product videos
Inquiry

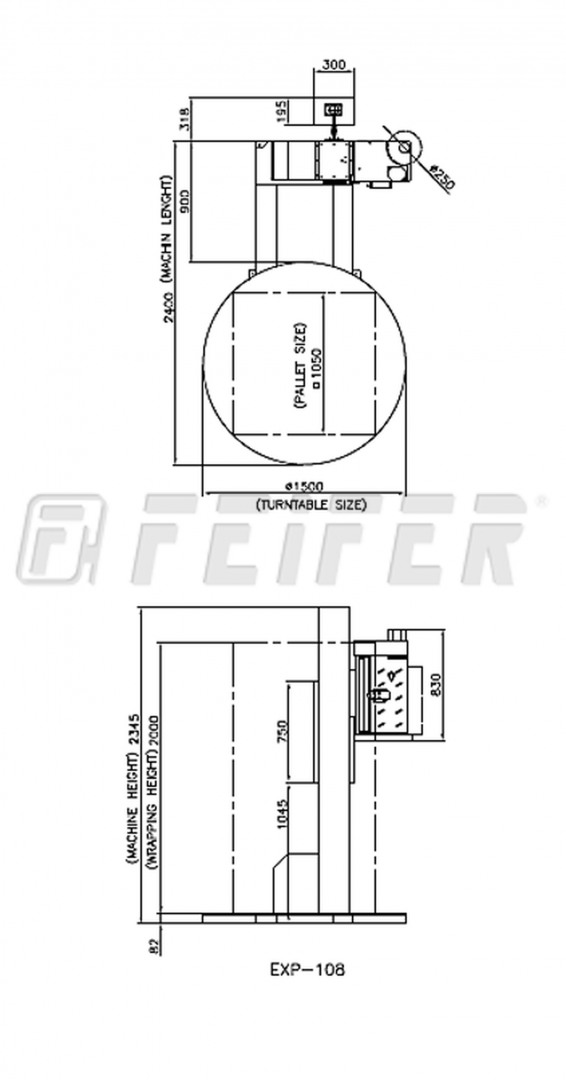

Technical parameters
| ordering code | 700 008321 |
| material - foil |
machine stretch |
| max. pallet dimensions (L x W) | 1200 x 800, 1050 x 1050 mm |
| max. pallet height | 2000 mm |
| max. pallet weight | 1650 kg |
| turntable turns | 12 turns/min. |
| turntable height | 82 mm |
| turntable diameter | 1500 mm |
| supply voltage | 230 V / 50 Hz |
| power input | 1,2 kW |
| machine height | 2345 mm |
| machine length | 2400 mm |
| machine width | 1500 mm |
| weight | 435 kg |

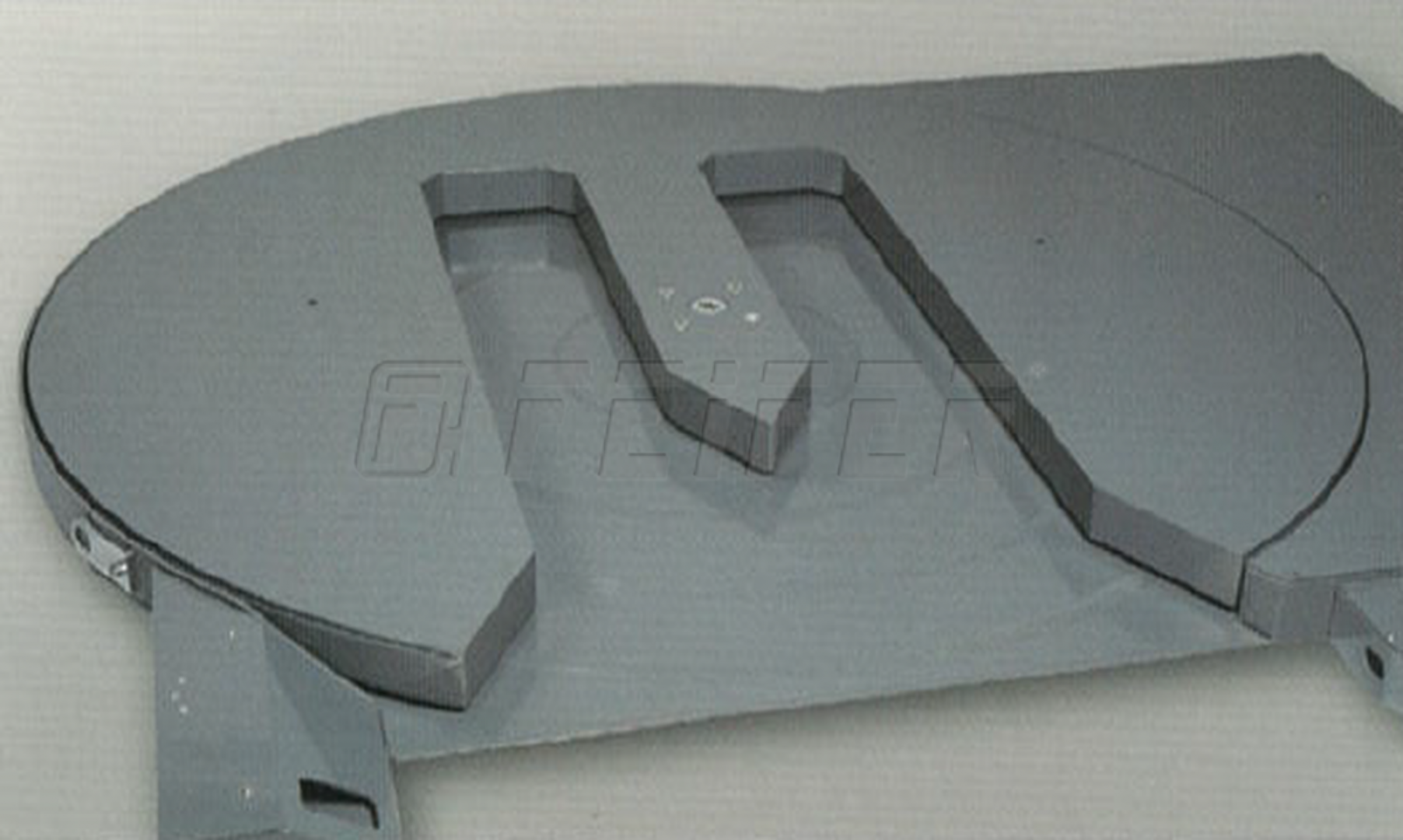

Standard modifications
EXP-308 - pallet stretch wrapping machine
- 3 pre-set wrapping programs
- film spring brake
- high level of automation
- for medium frequency jobs
Binding and packaging materials
Action

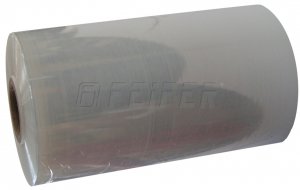

500 x 0,023 mm - machine stretch foil, elongation 220%
- width - 500 mm
- thickness - 23 my
- elongation 220%
- weight of roll approx. 18 kgs
Action
500 x 0,017 mm - machine stretch foil, elongation 280%
- width - 500 mm
- thickness 17 my
- elongation 280%
- weight of roll approx. 18 kgs
