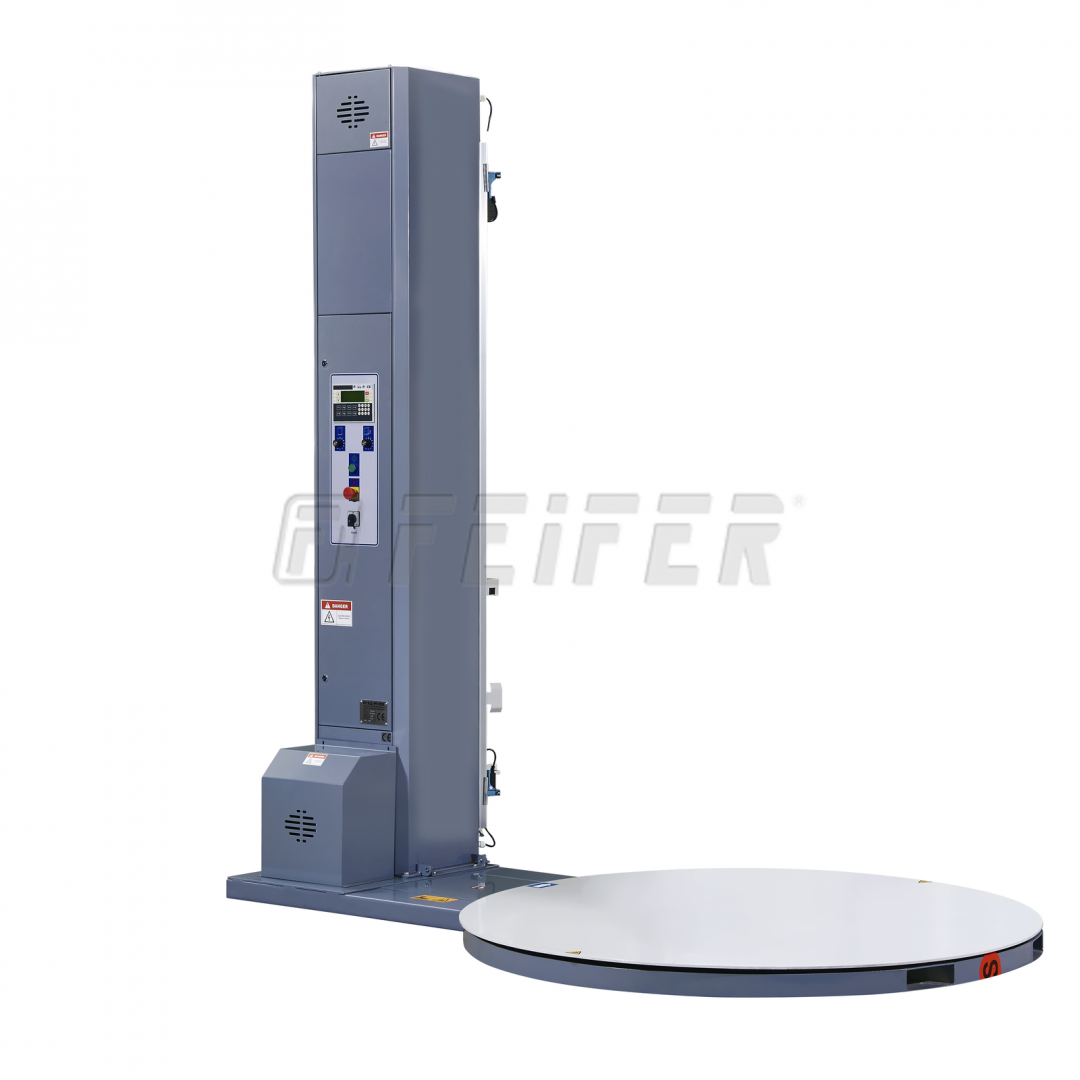

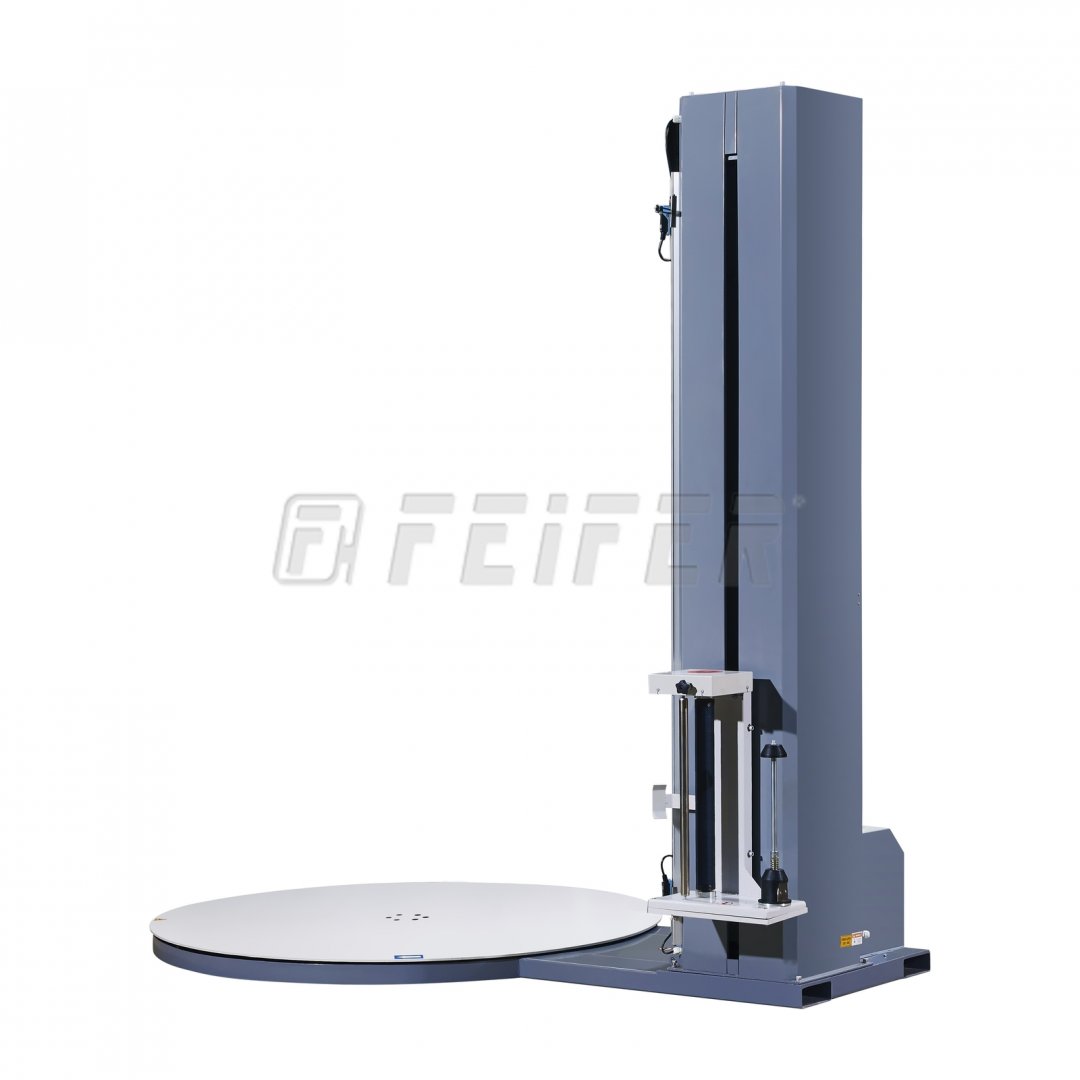

EXP-4505 B - pallet stretch wrapping machine
Automatic pallet stretch wrapping machine suitable for low and medium frequency wrapping jobs. The machine is equipped with 5 preset programs for fully automatic wrapping (operator only fixes film to a pallet before starting wrapping cycle and cuts film after finishing wrapping cycle). Standard machine stretch film is used for wrapping.
Among advantages of this machine belong:
- 5 preset programs for fully automatic wrapping (operator only fixes film to a pallet before starting wrapping cycle and cuts film after finishing wrapping cycle)

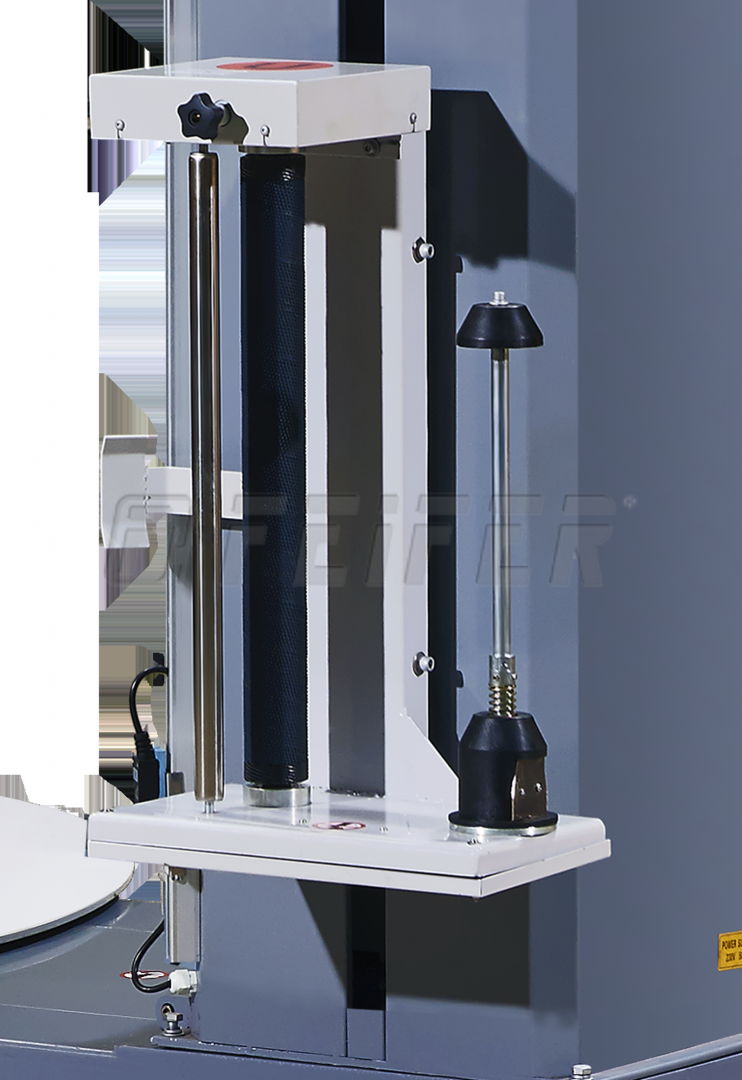

- spring brake of film with friction lining and possibility of stepless break adjustment directly on elevator
- fluent regulation of tightening power, speed of turntable and elevator unit
- intuitive control and setting of parameters on easily readable LCD display
- possibility to select the number of wrapping cycles at the bottom/top/middle of palletslow
- start and stop of the turntable
- slow start and stop of the turntable
- precise home position - the turntable always stops at the same position
- pallet height seeking by photo sensor
- hinged machine tower for easy operation
Options and non-standards:
- ramp - turntable Ø 1,5m
- ramp - turntable Ø 1,5m – extended – for electrical carts
- ramp - turntable Ø 1,8m
- ramp - turntable Ø 1,8m – extended – for electrical carts
- decoiler for cover film
- height seeking by photo sensor
- height seeking by photo sensor – dark products
- frame for fixing the machine to the floor -turntable diameter 1,5m
- frame for fixing the machine to the floor -turntable diameter 1,8m
- advanced wrapping height 2,5m (tower 2,9m)
- advanced wrapping height 3,0m (tower 3,4m)
- advanced turntable diameter 1,8m
- advanced turntable diameter 2,3m
- advanced turntable diameter 2,48m
- advanced loading capacity - 2000kg
- advanced loading capacity - 2500kg
- top pressure plate
- weighing system
- weighing system with output for printer or computer
- cut-out in turntable for pallet jack
Technical parameters
Inquiry
Technical parameters
ordering code | 700 024416 |
material - foil |
machine stretch |
max. pallet dimensions (L x W) | 1200 x 800, 1050 x 1050 mm |
max. pallet height | 2100 mm |
max. pallet weight | 1500 kg |
turntable turns | 0-13 turns/min. |
turntable height | 80 mm |
turntable diameter | 1500 mm |
supply voltage | 230V/50Hz |
power input | 1 kW |

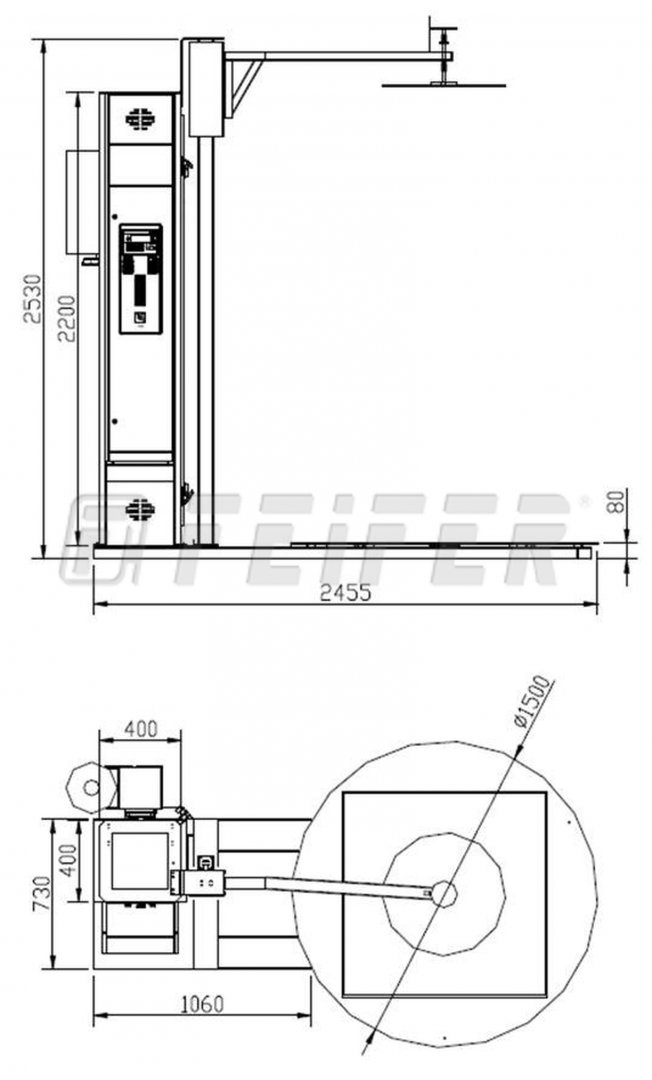

dimension (l x w x h) | 2455 x 1500 x 2280 mm |
weight | 360 kg |
