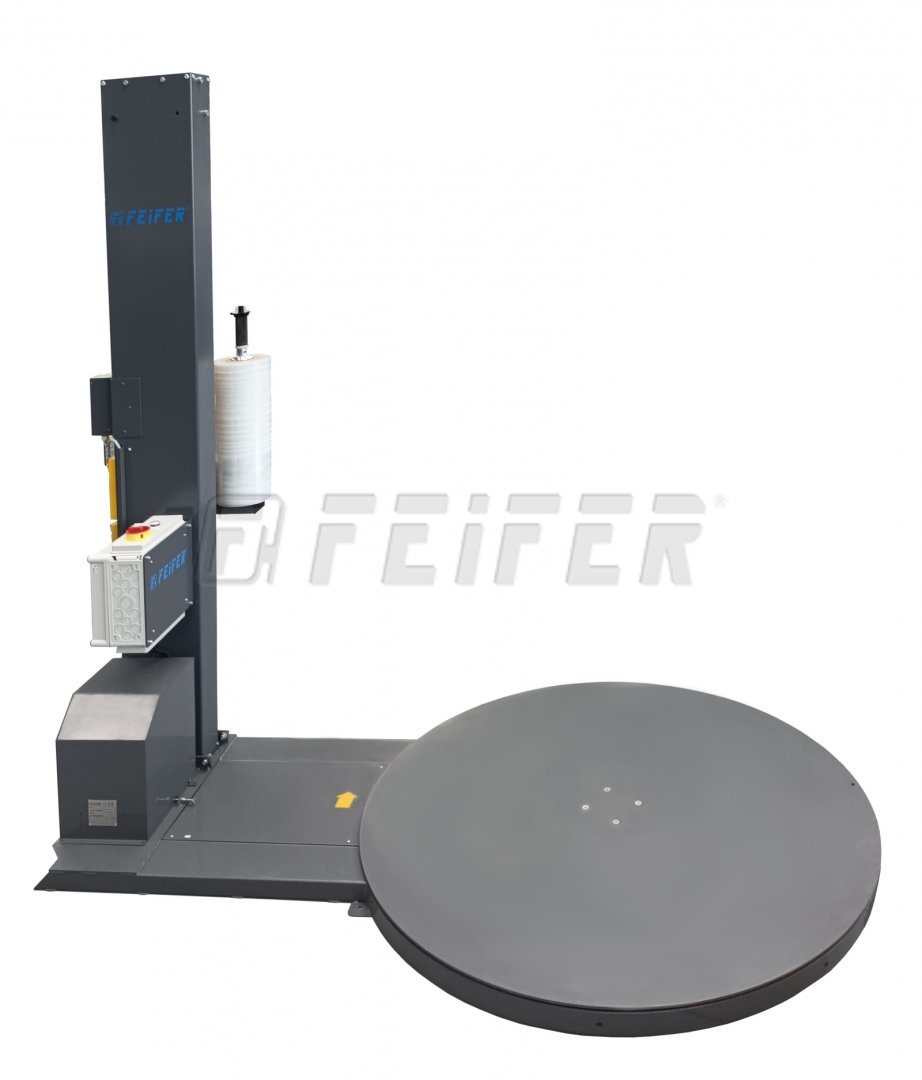

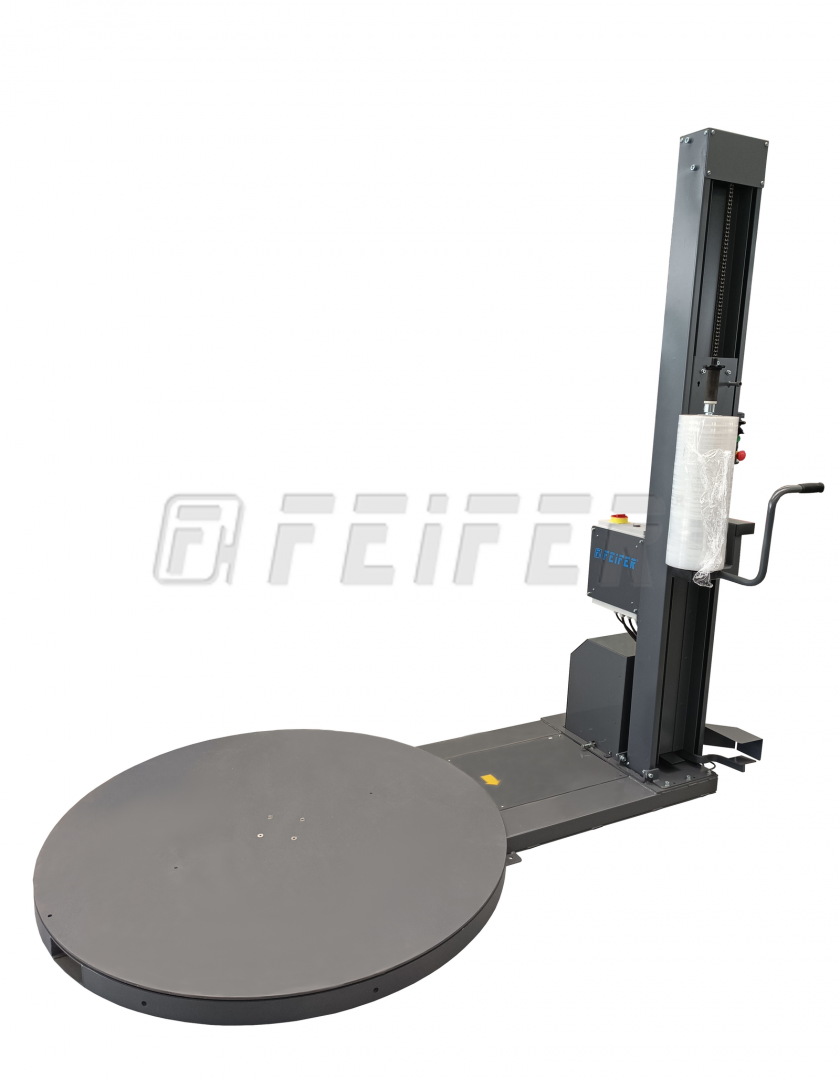

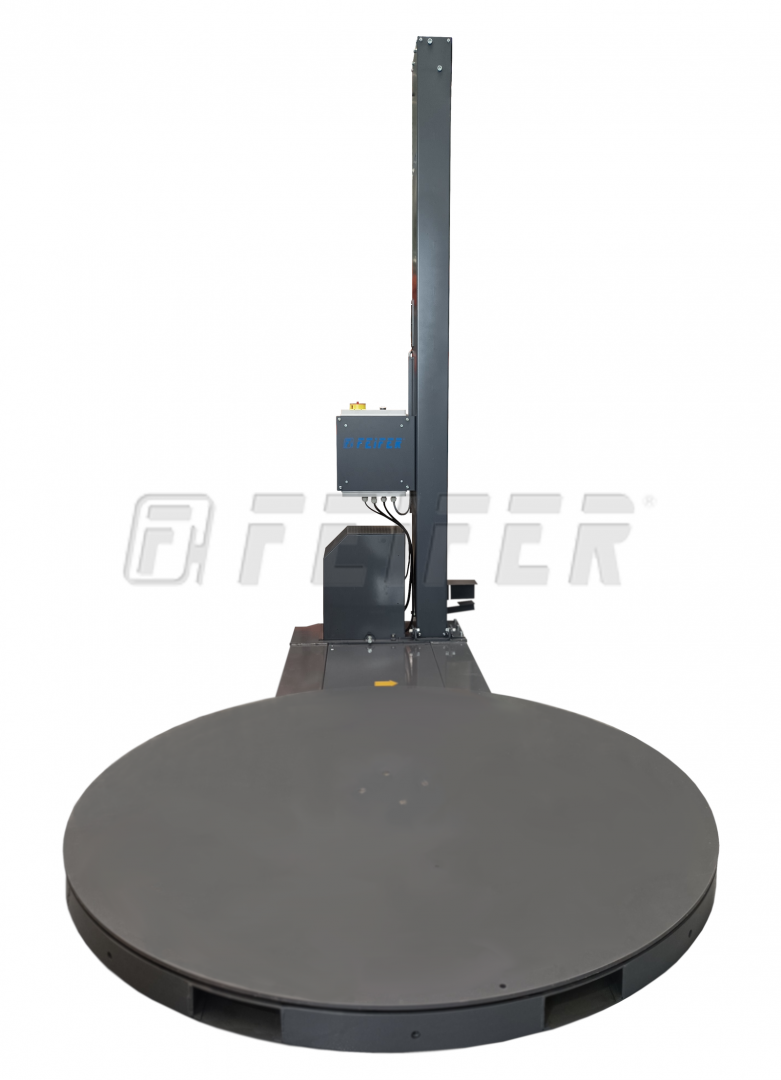

EXP-B PLUS - pallet stretch wrapping machine
Manual wrapping machine for wrapping pallets, suitable for low frequency wrappings jobs. The machine requires continuous presence of an operator during the packaging cycle (the film elevator is moved manually). For packaging, standard machine-wrapping film with appropriate tensile strength is used.
- suitable for low frequency wrappings jobs.
- manual packaging cycle (the machine requires continuous presence of an operator)
- very simple operation
- thanks to the minimum of electronics, it can also be used in unheated environment

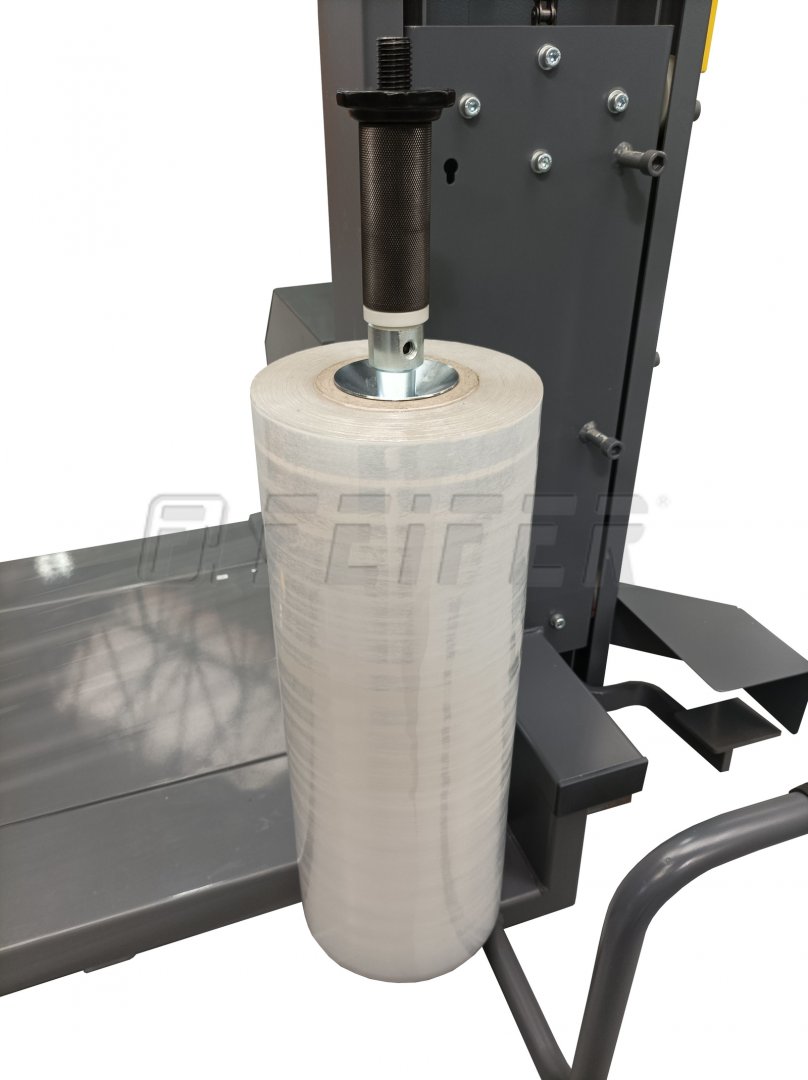

- a column with manually driven film elevator • adjustment of the height position of film elevator

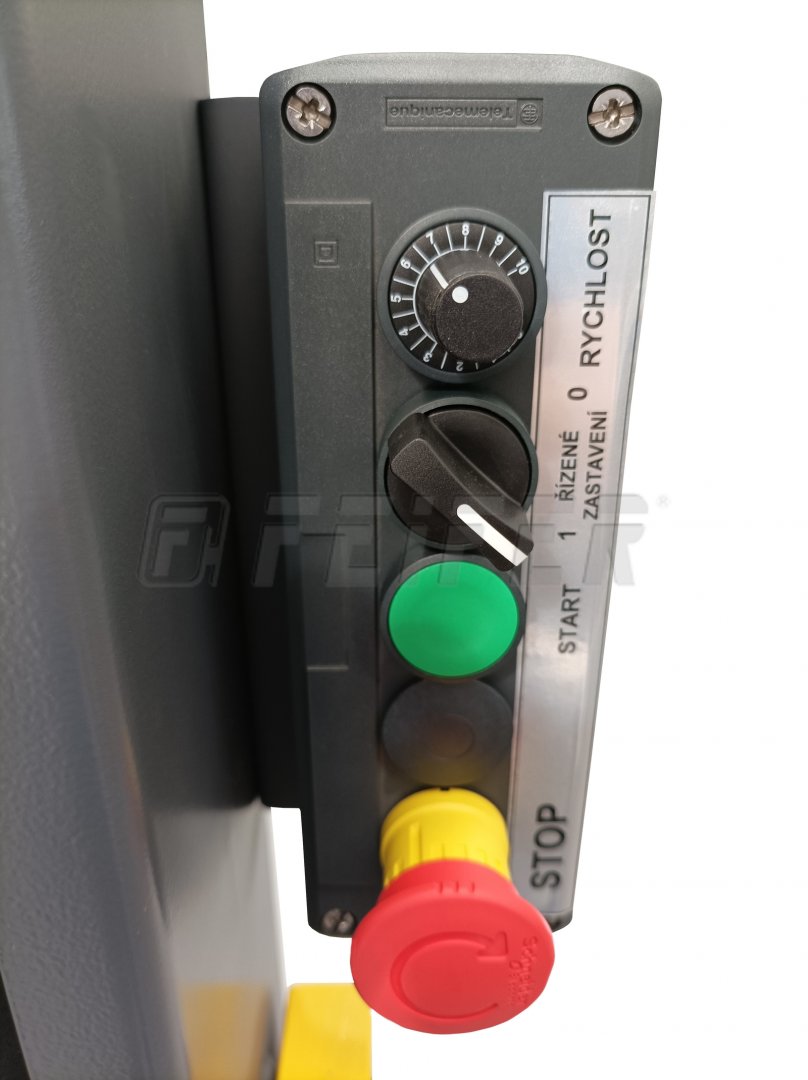

- mechanical film brake • stepless regulation of turntable rotation speed by frequency converter
- precise home position of the turntable (always stops at the same position)
- slow start and stop of the turntable
- easy transportation of the machine using a forklift
Technical parameters
Product videos
Inquiry
Technical parameters
ordering code | 600 000767 |
material - foil |
machine stretch |
max. pallet dimensions (L x W) | 1200 x 800, 1050 x 1050 mm |
max. pallet height | 1800 mm |
max. pallet weight | 1500 kg |
turntable turns | 0-10 turns/min. |
turntable height | 82 mm |
turntable diameter | 1500 mm |
supply voltage | 230V/50Hz |
power input | 1 kW |
machine height | 2200 mm |
