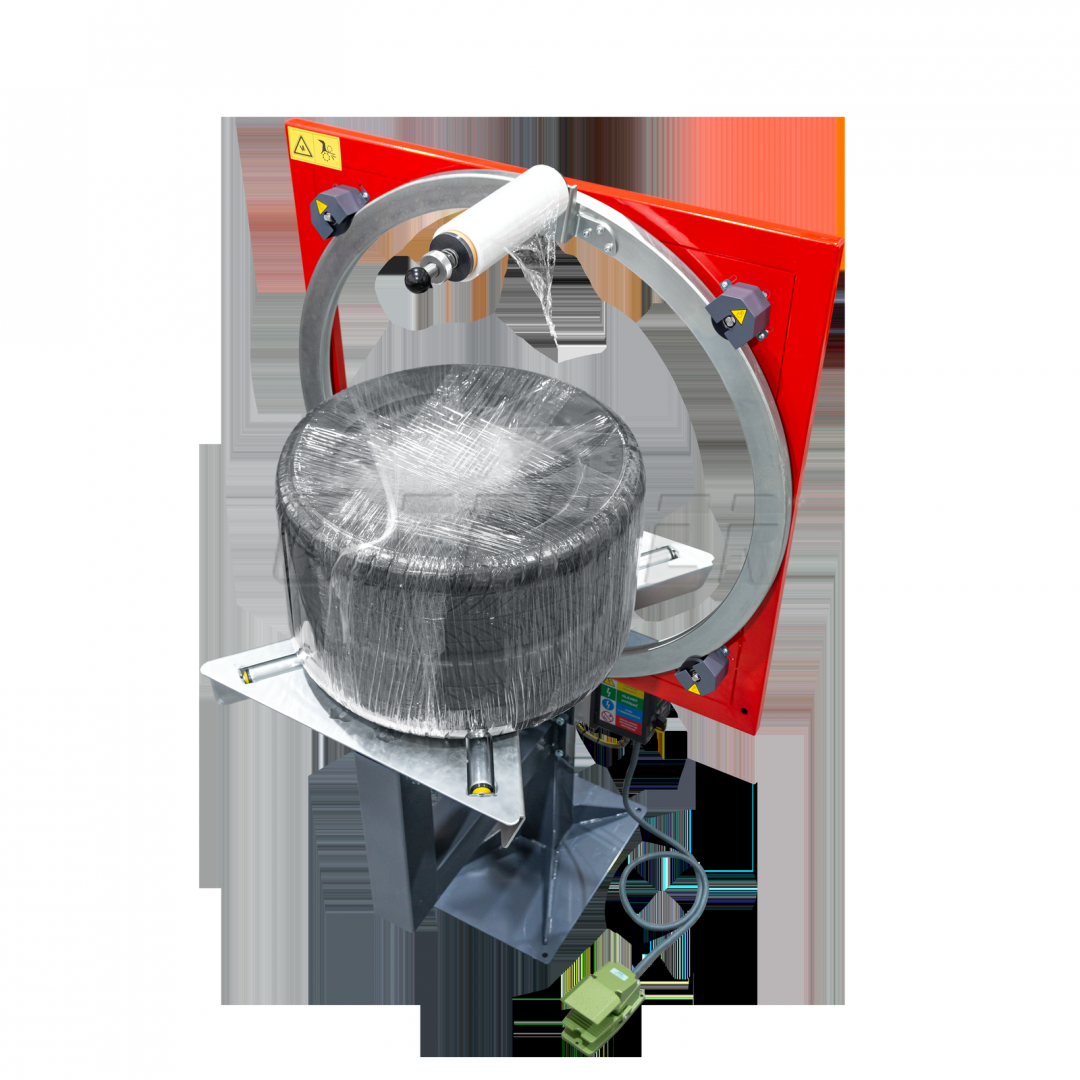

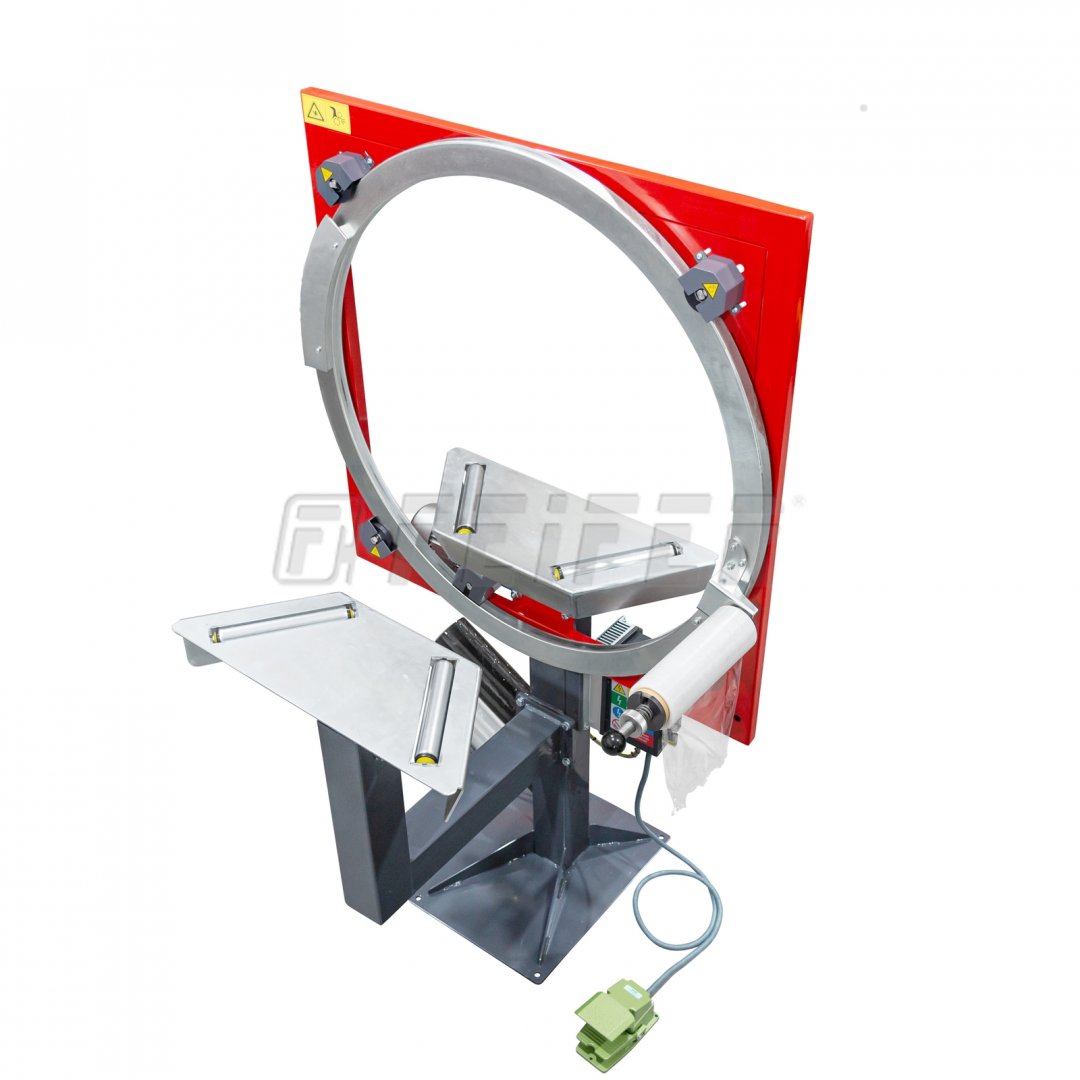

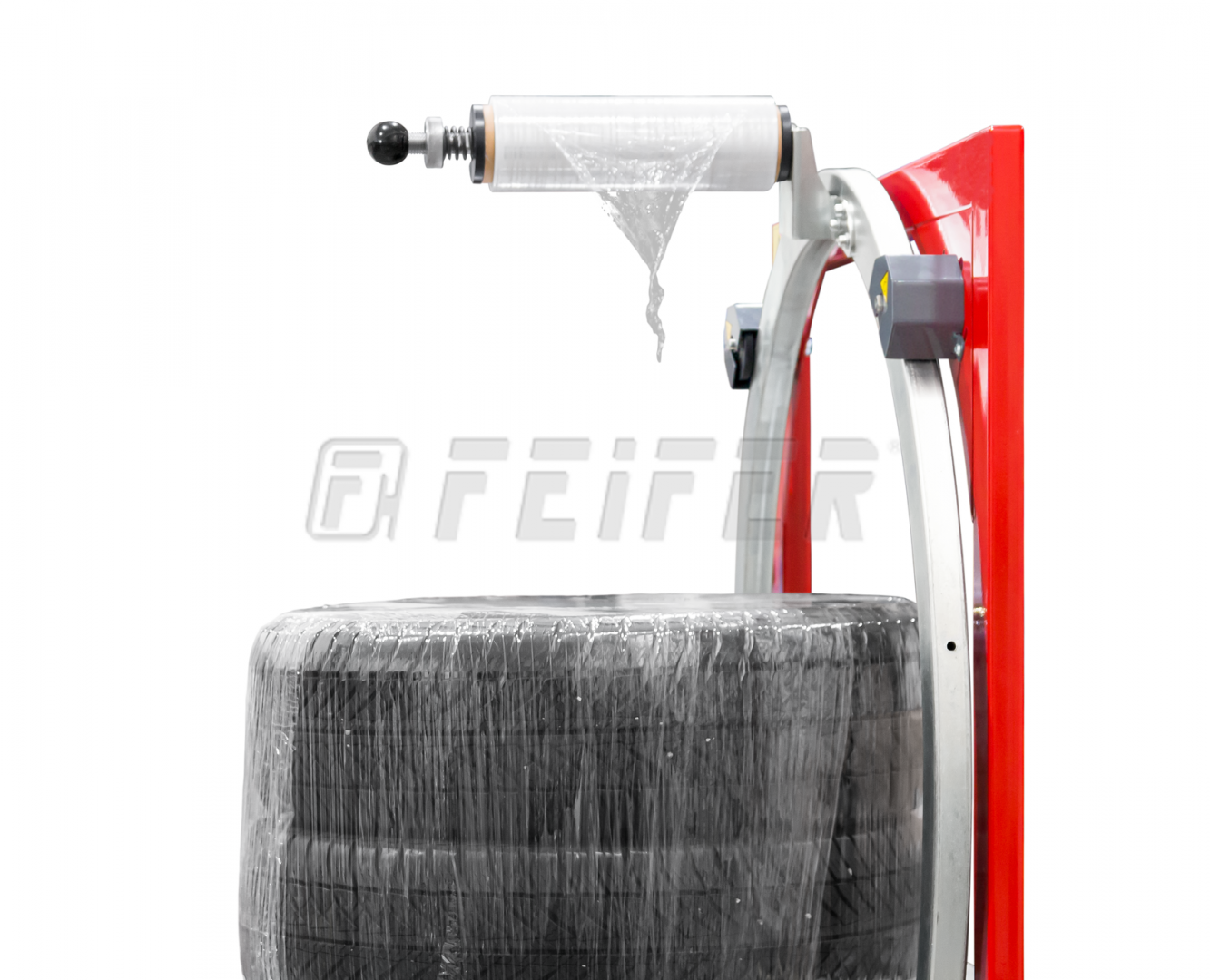

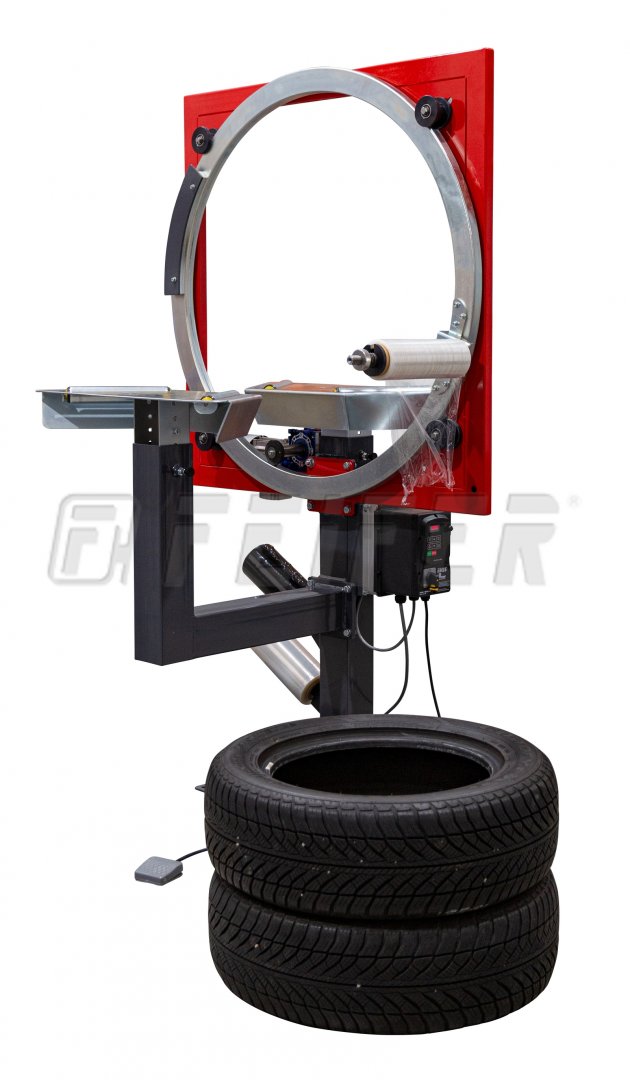

EXR-1050WR M WrapMate - horizontal wrapping machine

The machines of the EXR-WrapMate series are especially suitable for packing smaller items such as cardboard boxes and other shipments sent by post or courier service. They can also be used where it is not possible to use strapping, for example due to the small packed circumference or due to the need for even more gentle fixation.



Among main advantages of this wrapping machine belong:

  • the best-selling model suitable for operations with small to medium packaging capacity
  • easy and safe handling
  • robust steel frame
  • motor drive with stepless speed control and foot pedal control
  • height-adjustable working table
  • quick film change
  • durable surface finish

Max. size of wrapped object (W x H):

  • object of square / rectangular shape: 600 x 650 mm
  • tall and narrow object: 250 x 750 mm
  • wide and low object: 875 x 50 mm
  • object of circular shape: ø 880 mm



Options and non-standards:

  • narrow version of table for small packages
  • table extension backwards 250 or 500 mm
  • base plate if it is not possible to anchor the machine to the floor
  • film holder 125 mm or 500 mm*
  • adhesive tape holder
  • bubble wrap film holder 500 mm

* 500 mm wide film holder is only suitable for objects with a large cross-section. In addition, the comparable tightening force cannot be achieved as with a 250 mm wide film!

Technical parameters
Packing material
Product videos
Inquiry

Technical parameters

ordering code 700 024095
material - foil hand stretch foil
film width (250 standard, 125 nebo 500 opce) mm
film thickness 10-35 µm
max. film diameter 100 mm
inner diameter of roll 50 mm
min. size of wrapped object 250 x 50 mm
turns of rotating unit max. 30 turns/min.
temperature range 0 - 40 °C

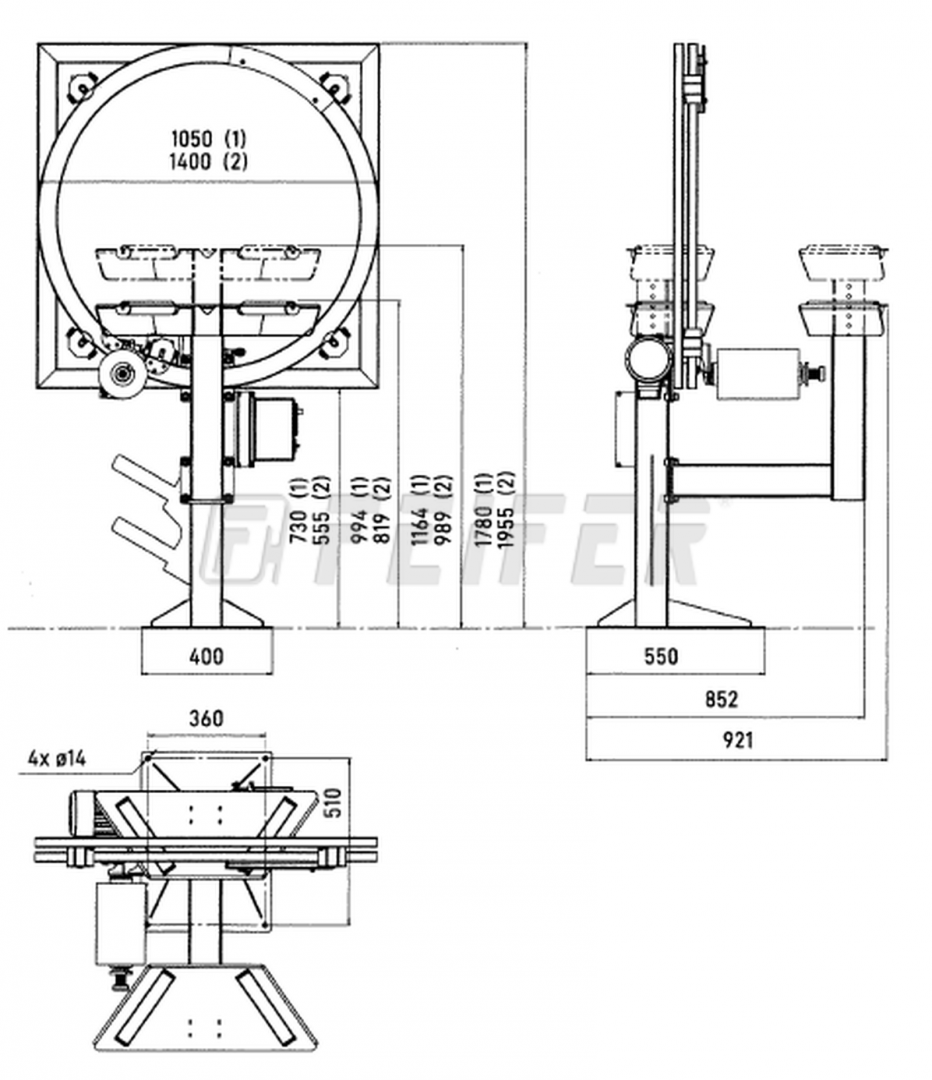

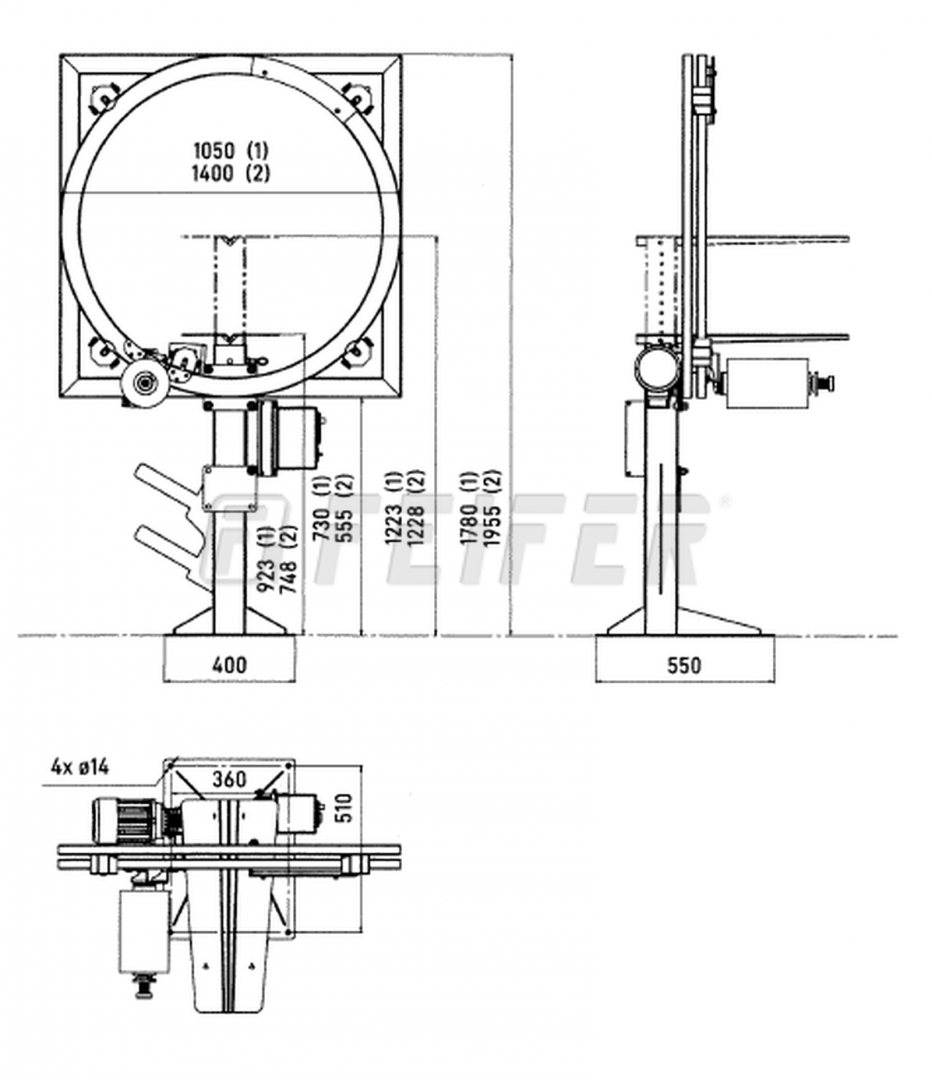

dimension (l x w x h) 774 x 1050 x 1780 mm
weight bez příslušenství cca 100 kg
supply voltage 230V/50Hz
power input 0,4 kW

Standard modifications

Binding and packaging materials

Action

250 x 0,012 mm - hand stretch foil

250 x 0,012 mm - hand stretch foil
  • width - 250 mm
  • thickness - 12 my
  • weight 1,8 kgs
  • transparent
Action

250 x 0,023 mm - hand stretch foil

250 x 0,023 mm - hand stretch foil
  • width - 250 mm
  • thickness - 23 my
  • weight 1,8 kgs
  • transparent
Action

250 x 0,023 mm - hand stretch foil, white

250 x 0,023 mm - hand stretch foil, white
  • width - 250 mm
  • thickness - 23 my
  • weight 1,8 kgs
  • white
