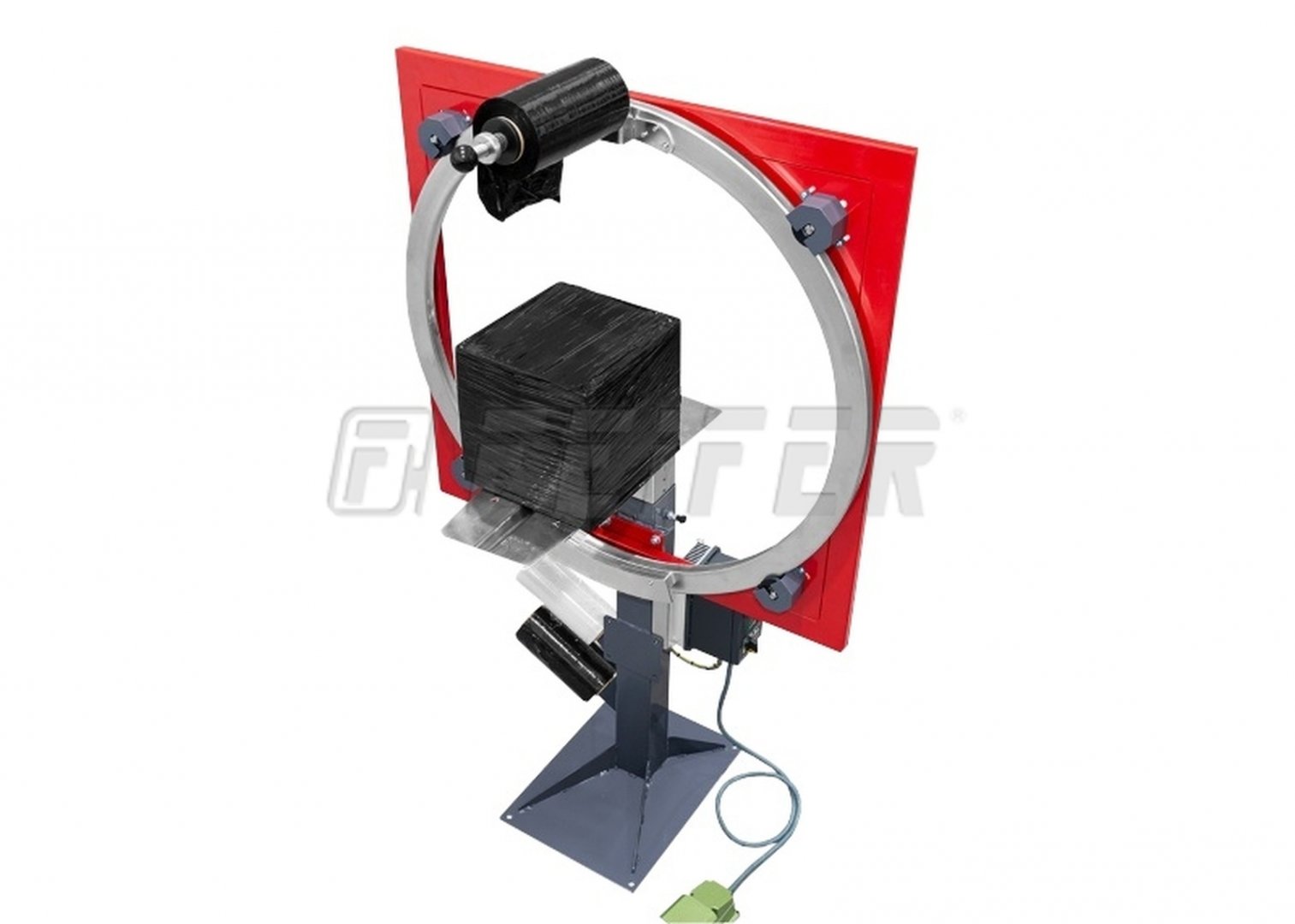

EXR-1600WR M WrapMate - horizontal wrapping machine
The machines of the EXR-WrapMate series are especially suitable for packing smaller items such as cardboard boxes and other shipments sent by post or courier service. They can also be used where it is not possible to use strapping, for example due to the small packed circumference or due to the need for even more gentle fixation.
Among main advantages of this wrapping machine belong:
- the best-selling model suitable for operations with small to medium packaging capacity
- easy and safe handling
- an increased diameter of the wrapping ring for packing larger shipments
- robust steel frame
- motor drive with stepless speed control and foot pedal control
- height-adjustable working table
- quick film change
- durable surface finish
Max. size of wrapped object (W x H):
- object of square / rectangular shape: 600 x 1000 mm
- tall and narrow object: 250 x 1000 mm
- wide and low object: 1200 x 50 mm
- object of circular shape: ø 1230 mm
Options and non-standards:
- narrow version of table for small packages
- table extension backwards 250 or 500 mm
- base plate if it is not possible to anchor the machine to the floor
- film holder 125 mm or 500 mm*
- adhesive tape holder
- bubble wrap film holder 500 mm
* 500 mm wide film holder is only suitable for objects with a large cross-section. In addition, the comparable tightening force cannot be achieved as with a 250 mm wide film!
Technical parameters
Product videos
Inquiry
Technical parameters
ordering code | 700 025213 |
material - foil |
hand stretch foil |
film width | (250 standard, 125 nebo 500 opce) mm |
film thickness | 10-35 µm |
max. film diameter | 100 mm |
inner diameter of roll | 50 mm |
min. size of wrapped object | 250 x 50 mm |
turns of rotating unit | max. 30 turns/min. |
temperature range | 0 - 40 °C |
dimension (l x w x h) | 1000 x 1600 x 2000 mm |
weight | bez příslušenství cca 120 kg |
supply voltage | 230V/50Hz |
power input | 0,5 kW |
