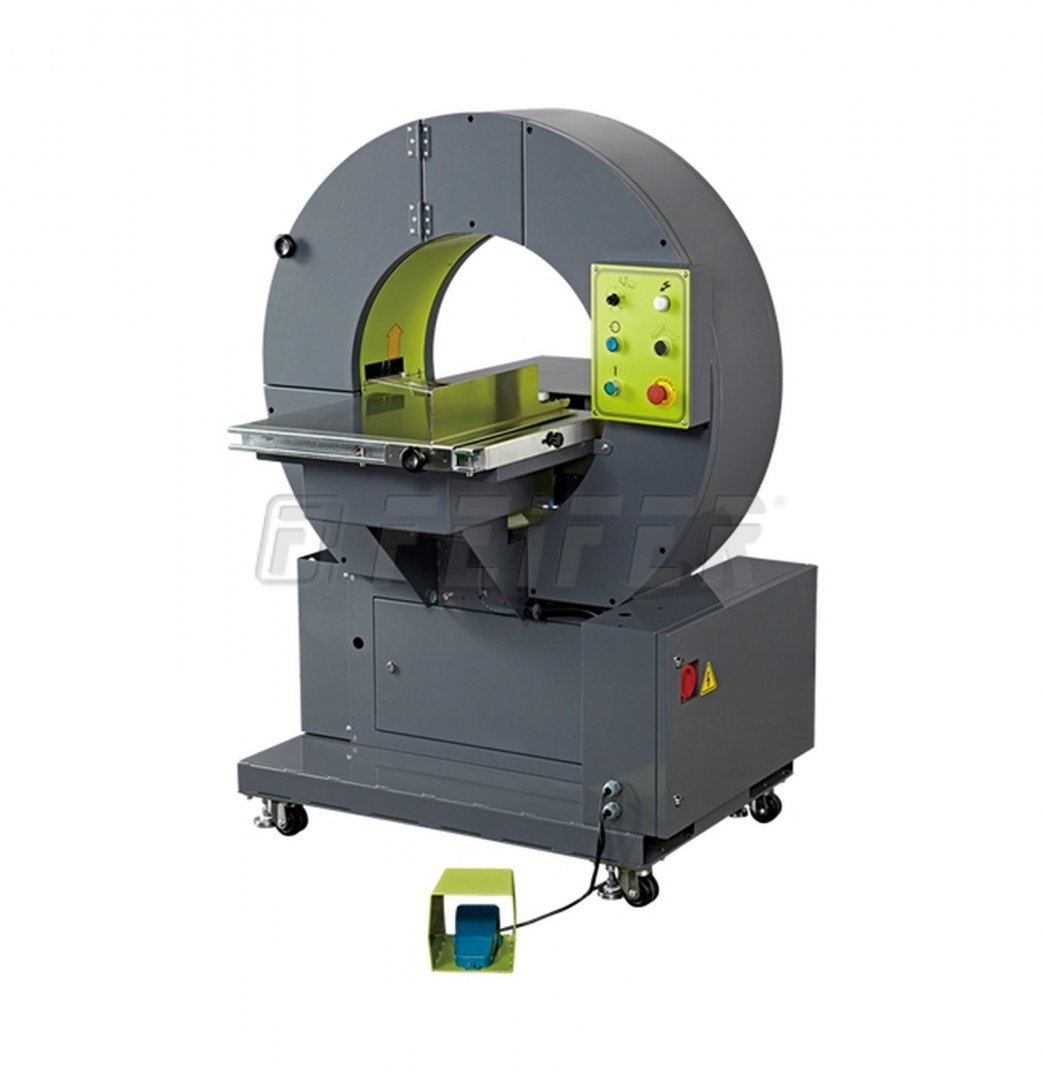

EXR-401 ORBIT - semi automatic horizontal wrapping machine
Semi-automatic horizontal machine EXR-401 ORBIT similar to EXR-301 type, but additional function of film fixing at the beginning of a cycle and cutting at the end of cycle. It is machine is designed for long objects wrapping, e.g. carpets, textiles, tubes, battens and other long profiles. Application is convenient also in case of impossible usage of another wrapping machine, e.g. for too small perimeter of wrapping good or if more careful fixation is necessary. The machine is suitable for medium frequency wrapping jobs. Stainless input and output work tables are included.
Among main advantages of this wrapping machine belong:
- easy operation – semi-automatic working mode (operator only cuts a film)
- low operating costs and low demands on machine maintenance
- simple and robust construction
- rotation of the moving wheel is controlled by frequency converter (slow start and stop, home position and fluent regulation of rotation speed)
- 2 working modes (A – adjustable number of wind from 3 to 11, B – continual wrapping)
- cycle start with foot pedal
- adjustable wrapping speed (max 100 winds/min)
- adjustable tightening power of foil
- adjustable film tightening and unique tightening system with fractional roller
Informations about dimensions of wrapped object:
Min. size: 100 x 50 mm or average - 100 mm
Max. size:
- square shape - 305 x 305 mm
- rectangle shape - 508 x 178 mm
- circle shape - average 330 mm
The resulting effect is strong and gentle fixation of packaged goods.
Technical parameters
ordering code | 700 009940 |
supply voltage | 230V/50Hz |
compressed air | 6 - 7 bar |
inner diameter of roll | 76 mm |
material - foil |
LDPE stretch |
max. film width | 76, 100, 125 mm |
turns of rotating unit | max. 100 turns/min. |
total track width | 560 mm |
conveyor height | 910 mm |
recommended length of wrapped object | > 500 mm |
min. size of wrapped object | 100 x 50 mm |
max. film diameter | 178 mm |

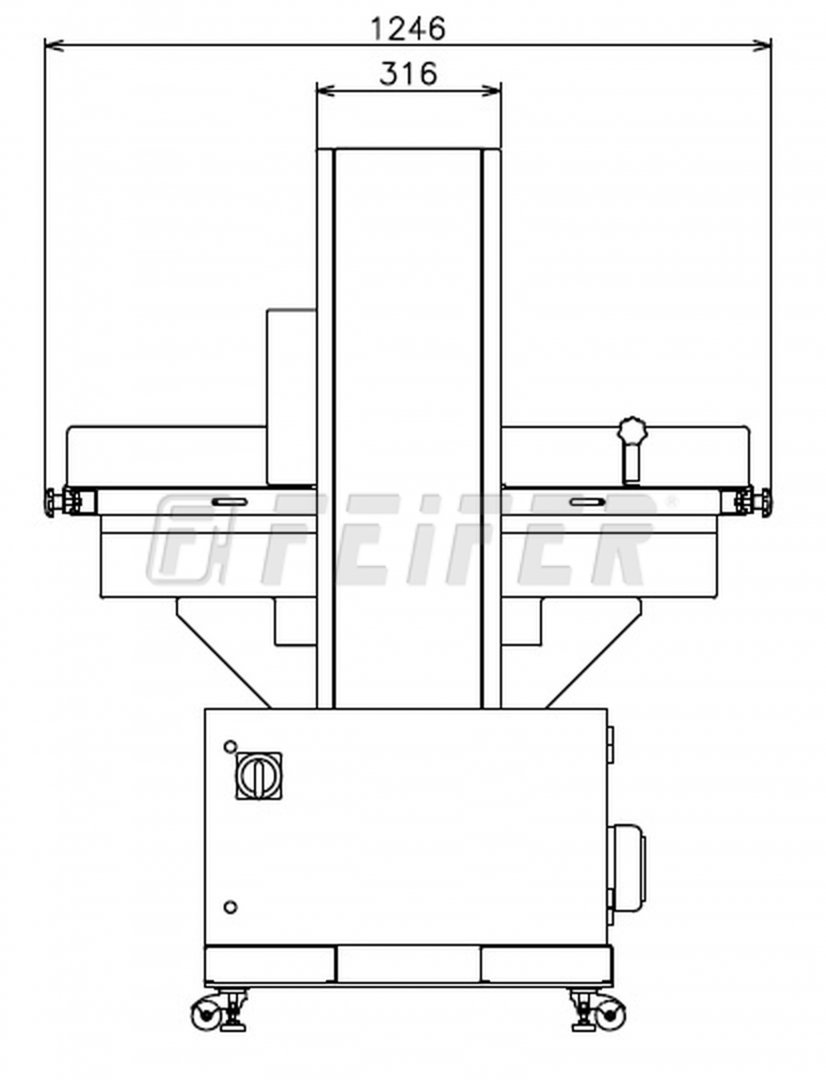

machine length | 1246 mm |

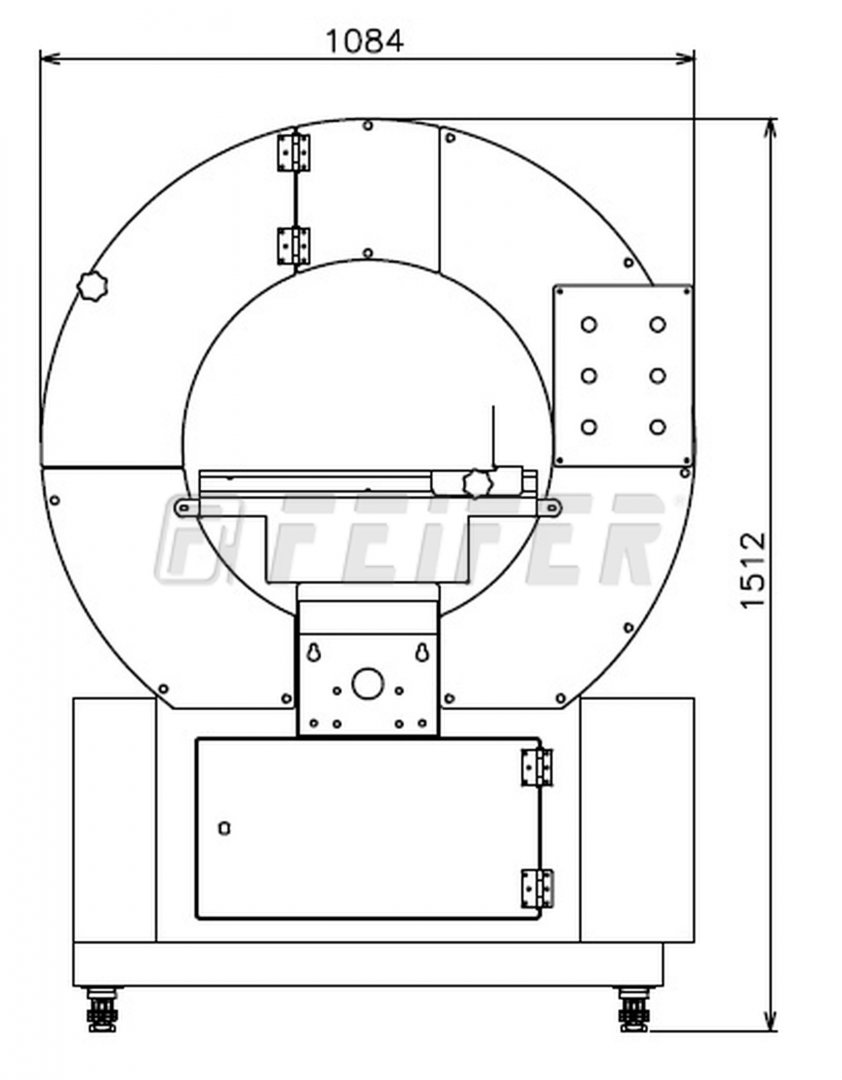

machine width | 1084 mm |
machine height | 1512 mm |
weight | 315 kg |
Standard modifications
EXR-201 ORBIT - semi automatic horizontal wrapping machine
- for long objects wrapping
- film cutting, possibility of welding
- max. speed - 100 turns/min
- for medium/high frequency jobs
EXR-301 ORBIT - semi automatic horizontal wrapping machine
- for long objects wrapping
- unique film tightening system
- max. speed - 100 turns/min
- for medium frequency jobs
Recommended accessories
Driven belt conveyor 4000x400 mm
- fluent speed regulation
- track width - 400 mm
- conveyor length - 4 m
