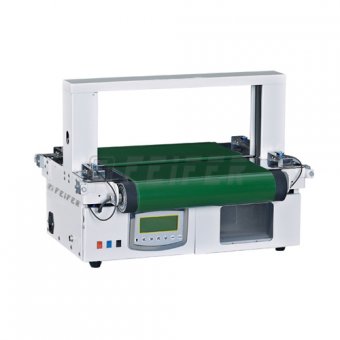

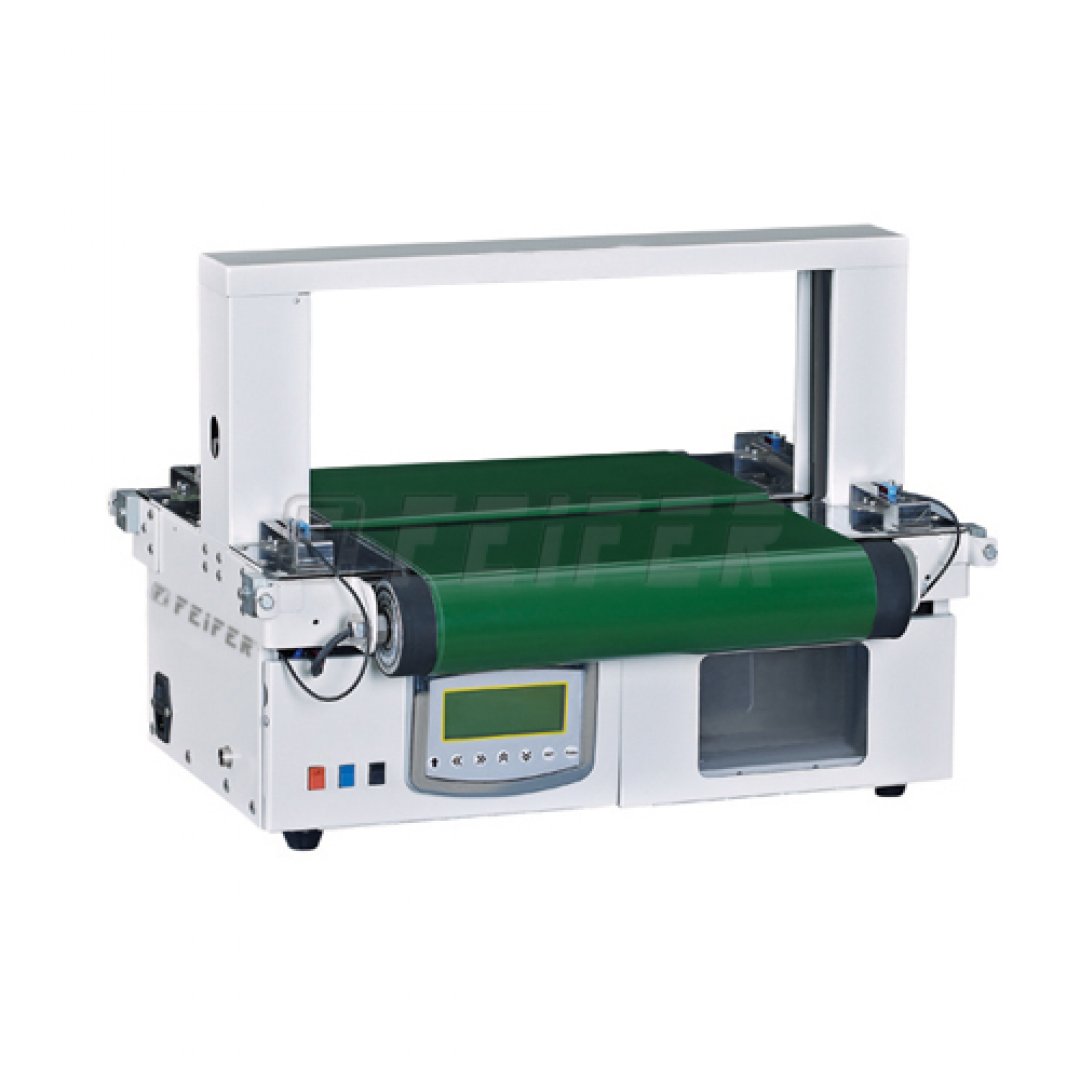

FCOM02-30A - automatic banding machine
FCOM02-30A automatic banding machine for film and paper tape, equipped with a belt conveyor, is widely used for gentle strapping of soft and sensitive items, eg.: banknotes, labels, envelopes, CDs, medicines, business cards, luxury prints, etc. .
Among advantages of this machine belong:
- soft and gentle tightening
- automatic welding and cutting of the strap
- PCB control panel with display
- compact design
Strapping cycle starts either automatically by placing the package on the counter or by pressing the Start button.
Technical parameters
Modification
Inquiry
Technical parameters
| ordering code | 700 010073 |
| strap - material |
paper foil |
| strap width | 30 mm |
| strap thickness | 0,1 - 0,12 mm |
| length per roll | 150 m |
| tightening power | 5-40 N |
| packing rate | 18-20 straps/min. |
| max. size of wrapped object | 460 x 200 mm |
| min. size of wrapped object | 30 x 10 mm |
| arch width | 470 mm |
| arch height | 220 mm |
| machine length | 575 mm |
| machine width | 314 mm |
| machine height | 507 mm |
| power input | 1,8 kW |
| supply voltage | 230V/50Hz |
| weight | 32 kg |
Standard modifications
FCOM02-30 - automatic banding machine
- desktop design
- for paper and film tape
- thickness of tape 100-120 my
- max. packing rate 18-20 straps/min.
FCOM02-30B - automatic banding machine
- stand design with dispenser
- for paper and film tape
- thickness of tape 100-120 my
- max. packing rate 18-20 straps/min.
FCOM02-30AB - automatic banding machine
- stand design with belt conveyor
- for paper and film tape
- thickness of tape 100-120 my
- max. packing rate 18-20 straps/min.
New
FCOM04-30B - automatic banding machine
- stand design with dispenser
- for paper and film tape
- thickness of tape 60-80 my (film), 80 - 120 my (paper)
- max. packing rate 32 straps/min.
