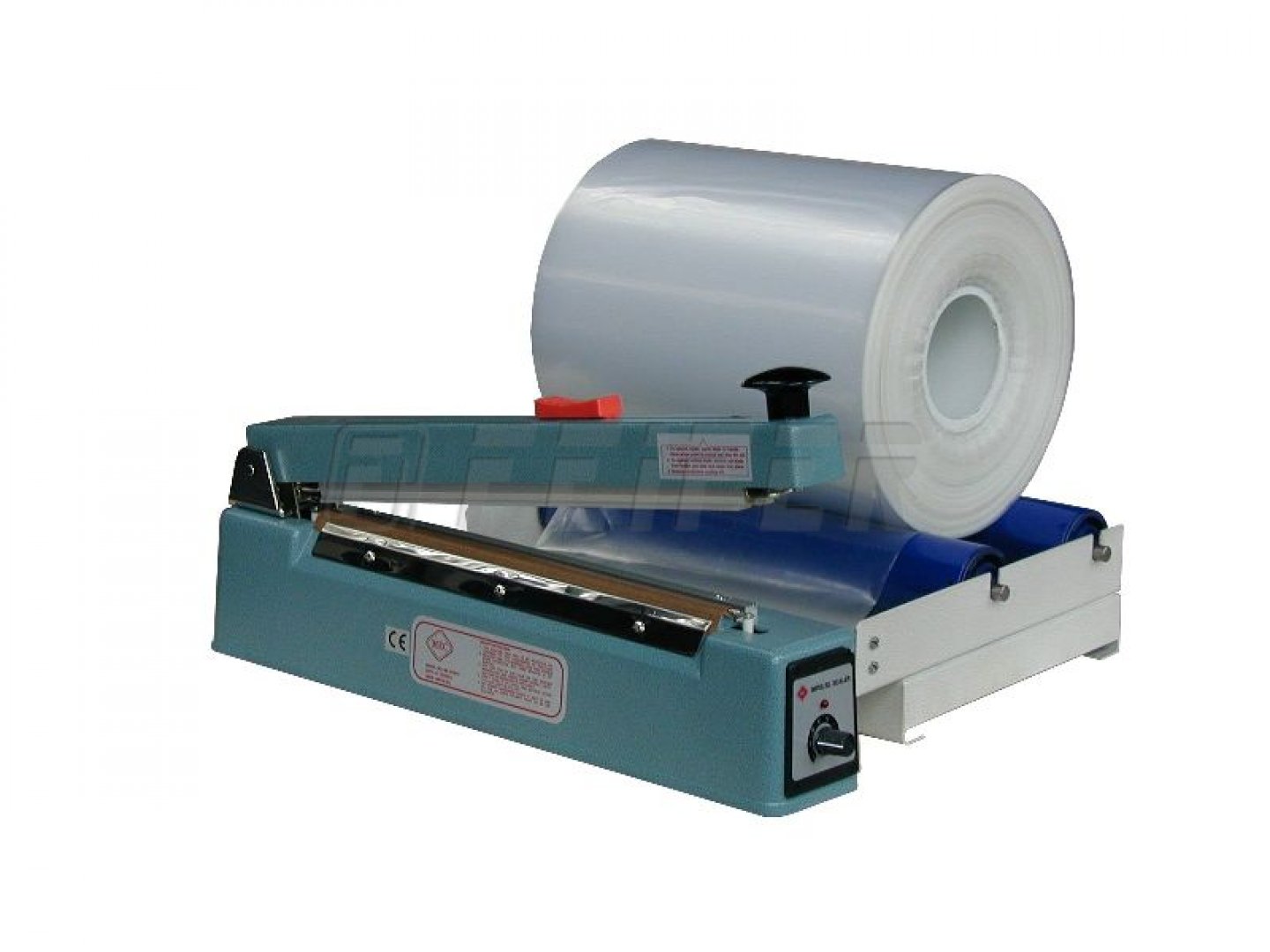

HC-500 - impulse sealer with built-in-blade
Impulce sealer HC-500 is a table model with cutting blade suitable for production and closing foil bags. Seal length is up to 500 mm. Seal is performed by kanthal sealing element of the width up to 2 mm. These sealers feature with high safety of an operator - the cutting blade is pushed out after pressing the upper sealing arm towards the lower sealing arm. Foil is cut approx. 6 mm behind the performed seal.
Table foil decoilers up to width of 300 or 600 mm are optional accessories for these sealers.
This model is intended for seals of length of 500 mm.
Technical parameters
Modification
Accessories
Spare part
Inquiry
Technical parameters
| ordering code | 700 009640 |
| power input | 0,8 kW |
| sealing arm holding | manual |
| weight | 8,25 kg |
| max. film thickness | 120 µm |
| max. sealing length | 500 mm |
| sealing width | 2 mm |
| built-in blade | yes |
Standard modifications
HC-300 - impulse sealer with built-in-blade
- sealing length 300 mm
- table model with cutting blade
- sealing width 2 mm
- for production and closing bags
HC-400 - impulse sealer with built-in-blade
- sealing length 400 mm
- table model with cutting blade
- sealing width 2 mm
- for production and closing bags
Recommended accessories
OF-300 - PE film decoiler
- for film width up to 300 mm
- fluent unwinding guide
- accessory for impulse sealers
