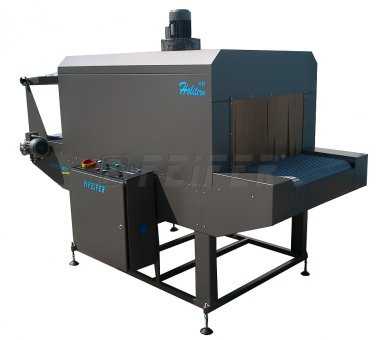

HR-6840 HOLITERM - industrial shrink tunnel
Industrial shrink tunnels HR-6840 series HR-HOLITERM are set for foil shrink around packaged objects. These tunnels are equipped with EXTRA JET technology enabling more effective hot-air flow inside shrinking chamber. This technology reduces energy demand markedly at keeping shrink performance.
These machines are equipped in standard version with:
- continuous conveyor control with soft start
- digital temperature control inside the shrinking chamber
- cooling-air fans on the output of the tunnel
Optionally, the machine can be delivered with a cooling and automatic switch off program.
Industrial shrink tunnels are intended especially for high frequency strapping jobs or for thicker foil shrinking.
Technical parameters
Modification
Inquiry
Technical parameters
| ordering code | 600 000296 |
| material - foil |
PVC POF LDPE |
| supply voltage | 400V / 50Hz |
| power input | 16,5 kW |
| conveyor height | 890 - 990 mm |
| transporting speed | 2 - 11 m/min. |
| passage width of tunnel | 680 mm |
| passage height of tunnel | 400 mm |
| max. packing width | 590 mm |
| max. packing height | 350 mm |
| total track width | 660 mm |
| chamber dimensions (H x W x L) | 400 x 710 x 1570 mm |
| machine length | 2460 mm |
| machine width | 1382 mm |
| machine height | 1880 mm |
| weight | 450 kg |
Standard modifications
HR-5023 HOLITERM - industrial shrink tunnel
- passage size - 500 x 230 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
HR-5040 HOLITERM - industrial shrink tunnel
- passage size - 500 x 400 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
HR-6823 HOLITERM - industrial shrink tunnel
- passage size - 680 x 230 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
