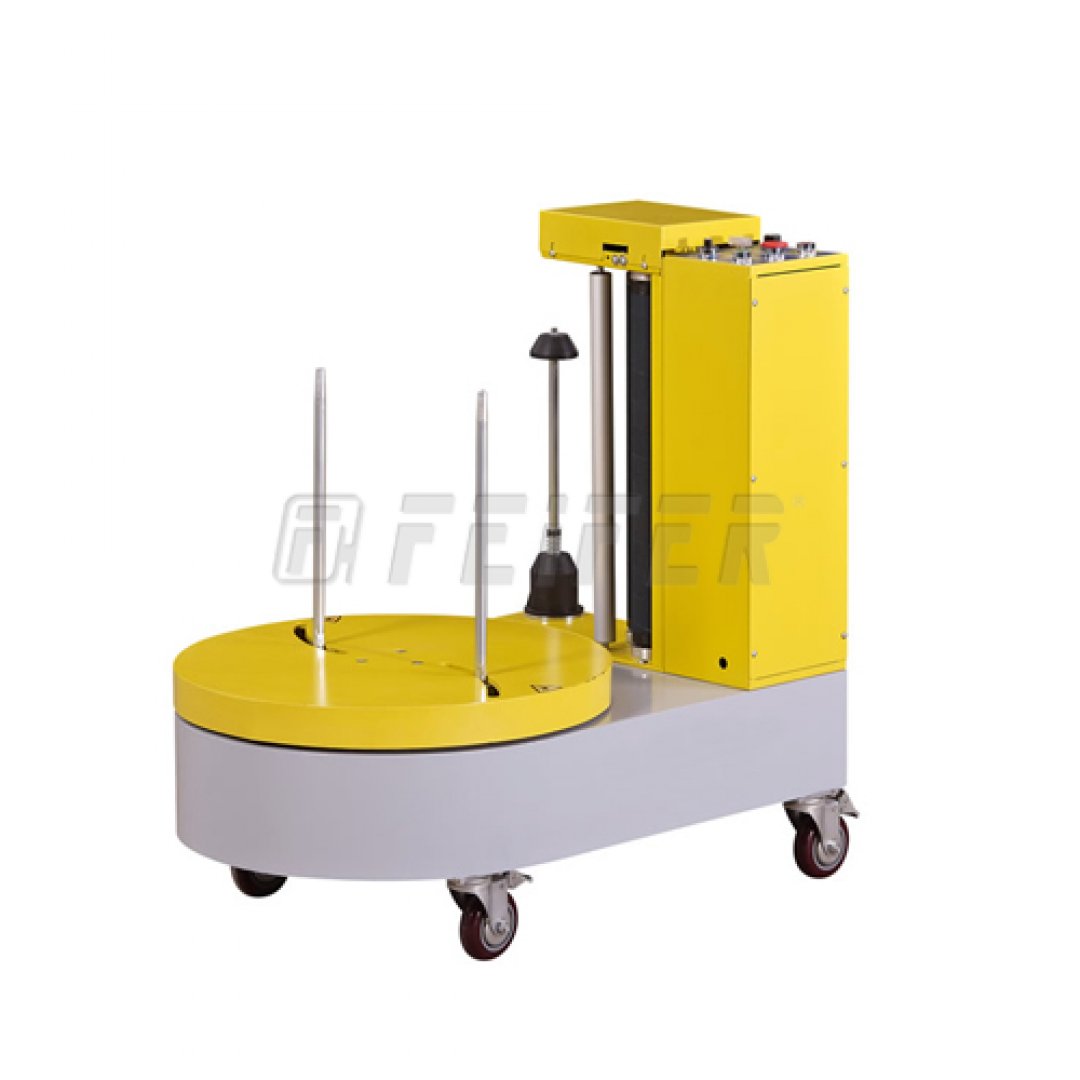

MINI WRAPPER "M"
Wrapping machine MINI WRAPPER "M" is intended for packing general cargo, eg. at e-shops. It provides protection against mechanical shipment damaged or stolen during transport. There is used machine wrapping stretch film with higher elongation for packaging. The machine is equipped with wheels for easy movement and two sliding pins to fix the shipment packaging.
The packaging cycle - the operator puts the package on the turntable and set sliding pin accordint to sizes of luggage. Then press the START button on the control panel and the machine wrap the package with 3-5 layers of stretch film. Then the operator cuts the film.
- stepless speed regulation of turntable
- motorized film pre-stretch 250%
- slow start and stop of the turntable
Technical parameters
Modification
Spare part
Inquiry
Technical parameters
| ordering code | 700 010078 |
| material - foil |
machine stretch |
| number of film layers | 3 - 10 |
| turntable turns | 20 turns/min. |
| dimension (l x w x h) | 900 x 600 x 930 mm |
| supply voltage | 230 V / 50 Hz |
| weight | 88 kg |
| power input | 1 kW |
| max. loading | max. 50 kg |
| min. size of wrapped object | 160 x 160 x 200 mm |
| max. size of wrapped object | 500 x 600 x 450 mm |
Standard modifications
MINI WRAPPER "XL"
- for luggage and cargo packaging
- stepless speed regulation
- motorized film pre-stretch 250%
