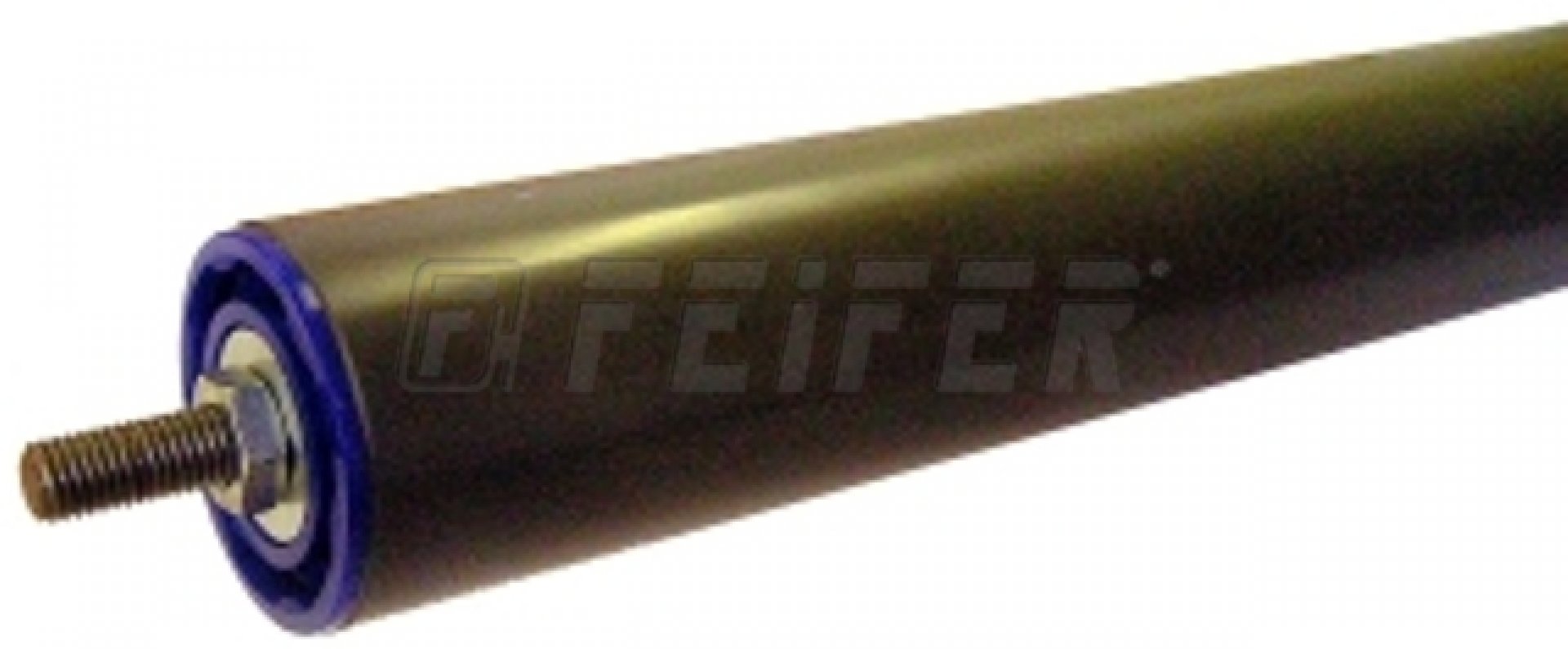

Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=500 mm, 20 kg
Technical parameters
Modification
Accessories
Spare part
Inquiry
Technical parameters
| ordering code | 500 009829 |
| max. loading | 20 kg |
| material of coat roller |
plastic |
| roller diameter | 50 mm |
| shaft diameter | 10 mm |
| thread | M10 |
| coat length | 500 mm |
| clamping roller length | 520 mm |
Standard modifications
Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=200 mm, 35 kg
- roller diam. 50 mm
- shaft diam. 10 mm
- lenght = 200 mm
- load. capacity 35 kg
Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=300 mm, 30 kg
- roller diam. 50 mm
- shaft diam. 10 mm
- lenght = 300 mm
- load. capacity 30 kg
Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=400 mm, 25 kg
- roller diam. 50 mm
- shaft diam. 10 mm
- lenght = 400 mm
- load. capacity 25 kg
Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=600 mm, 15 kg
- roller diam. 50 mm
- shaft diam. 10 mm
- lenght = 600 mm
- load. capacity 15 kg
Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=800 mm, 15 kg
- roller diam. 50 mm
- shaft diam. 10 mm
- lenght = 800 mm
- load. capacity 15 kg
Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=1000 mm, 8 kg
- roller diam. 50 mm
- shaft diam. 10 mm
- lenght = 1000 mm
- load. capacity 8 kg
Recommended accessories
NP-11 - tensioner for steel straps
- strap width 13 - 19 mm
- used together with a sealer UK
- for heavy irregular objects
- max. strength of joint 5000 N
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
OP-5 - decoiler for ribbon steel straps
- strap width 13-20 mm
- spring brake of strap
- inner diameter 260-310 mm
- robust construction
OP-7 - decoiler for oscillated steel straps
- strap width - 13 - 20 mm
- spring brake of strap
- for oscillated winding
- robust construction
