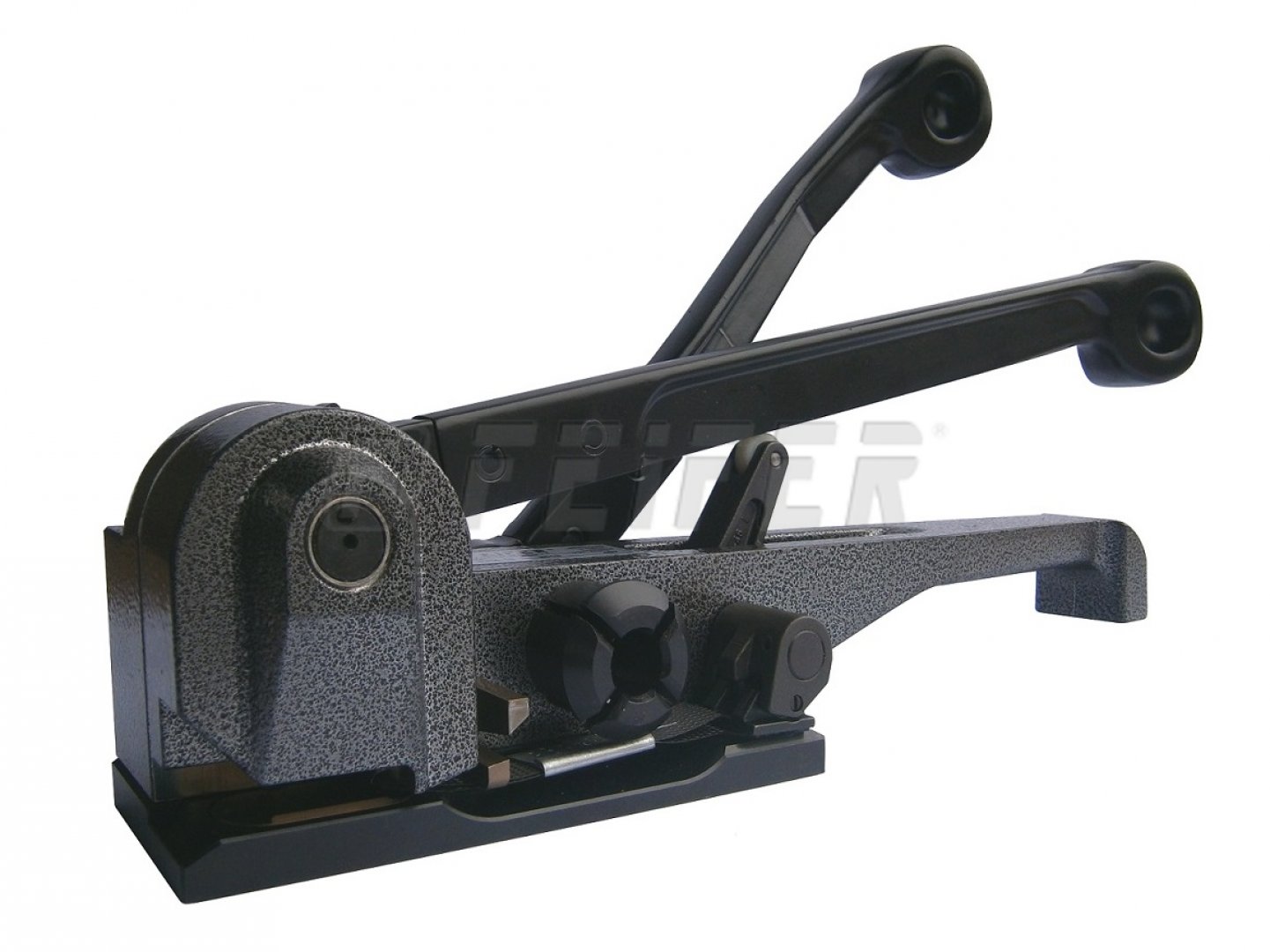

PPX-13 - strapping tool for PP straps
Hand-operated strapping tool PPX-13, which is intended for strapping pallets or larger flat objects. PP or PET strap and the special serrated seals PPX are used for strapping. This strapping tool is equipped with unique sealing system of closing the seal, by which it is possible to reach triple strength against the current strapping tools for PP strap (please, see strapping tools PP-F and PP-Best). This tool is equipped with very powerful tightening mechanism (tightening power is 2 500 N!!!) Among next advantages of this strapping tool belong: robust and ergonomic design and very easy operation and minimal maintenance. The strapping tool is delivered in modification for strap of the width of 11-12,5 mm or 15-16 mm. This modification is intended for strap of the width of 11-12,5 mm.
Technical parameters
Modification
Accessories
Packing material
Spare part
Inquiry
Technical parameters
| ordering code | 600 000036 |
| sealing method | seal type PPX-13 |
| strap - material |
PP PET |
| strap width | 11 - 12,5 mm |
| strap thickness | 0,5 - 0,9 mm |
| weight | 3,4 kg |
| dimension (l x w x h) | 400 x 110 x 210 mm |
Standard modifications
PPX-16 - strapping tool for PP straps
- strap width - 15 (16) mm
- sealing method -seal type PPX-16
- powerful tightening mechanism
- robust, easy operation
Recommended accessories
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
OP-6 - decoiler for PP straps
- inner diameter - 400 mm
- spring brake of strap
- extra robust construction
- for high frequency jobs
OP-6E - decoiler for PP straps
- inner diameter - 200 and 400 mm
- simple screw brake on axis
- for low frequency jobs
OP-6EB - decoiler for PP straps
- inner diameter - 200 and 400 mm
- spring brake of strap
- for low frequency jobs
OP-10EB - decoiler for PP straps
- inner diameter - 200 mm
- spring brake of strap
- for low frequency jobs
Strap lance
- max. strap width - 35 mm
- easy strap threading under pallet
- for plastic and textile strap
OP-8 - decoiler for PP, PET, oscillated steel straps
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
Binding and packaging materials
PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 200 mm, roll 3100 m
PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 200 mm, roll 3100 m
PP (polypropylen) strap 12 x 0,50 mm, 400/180 - 3000 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 400 mm, roll 3000 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, black
- width 12 mm, thickness 0,55 mm
- black color
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, white
- width 12 mm, thickness 0,55 mm
- natural color (white)
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,70 mm, 200/190 - 2500 m, 2200 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 2200 N
- tube 200 mm, roll 2500 m
PP strap 12 x 0,70 mm, 406/150 - 2200 m, 2000 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 2000N
- tube 406 mm, roll 2200 m
PP strap 12 x 0,70 mm, 406/150 - 2000 m, 1850 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 1850 N
- tube 406 mm, roll 2000 m
Steel seals PPX-13 (13 mm)
- seal width - 13 mm
- for PP and PET strap
- packaging - 1000 pcs
PET strap 12 x 0,60 mm, 406/145 - 2500 m, 2600 N, green
- width 12 mm, thickness 0,60 mm
- green color
- strength 2600 N
- tube 406 mm, roll 2500 m
