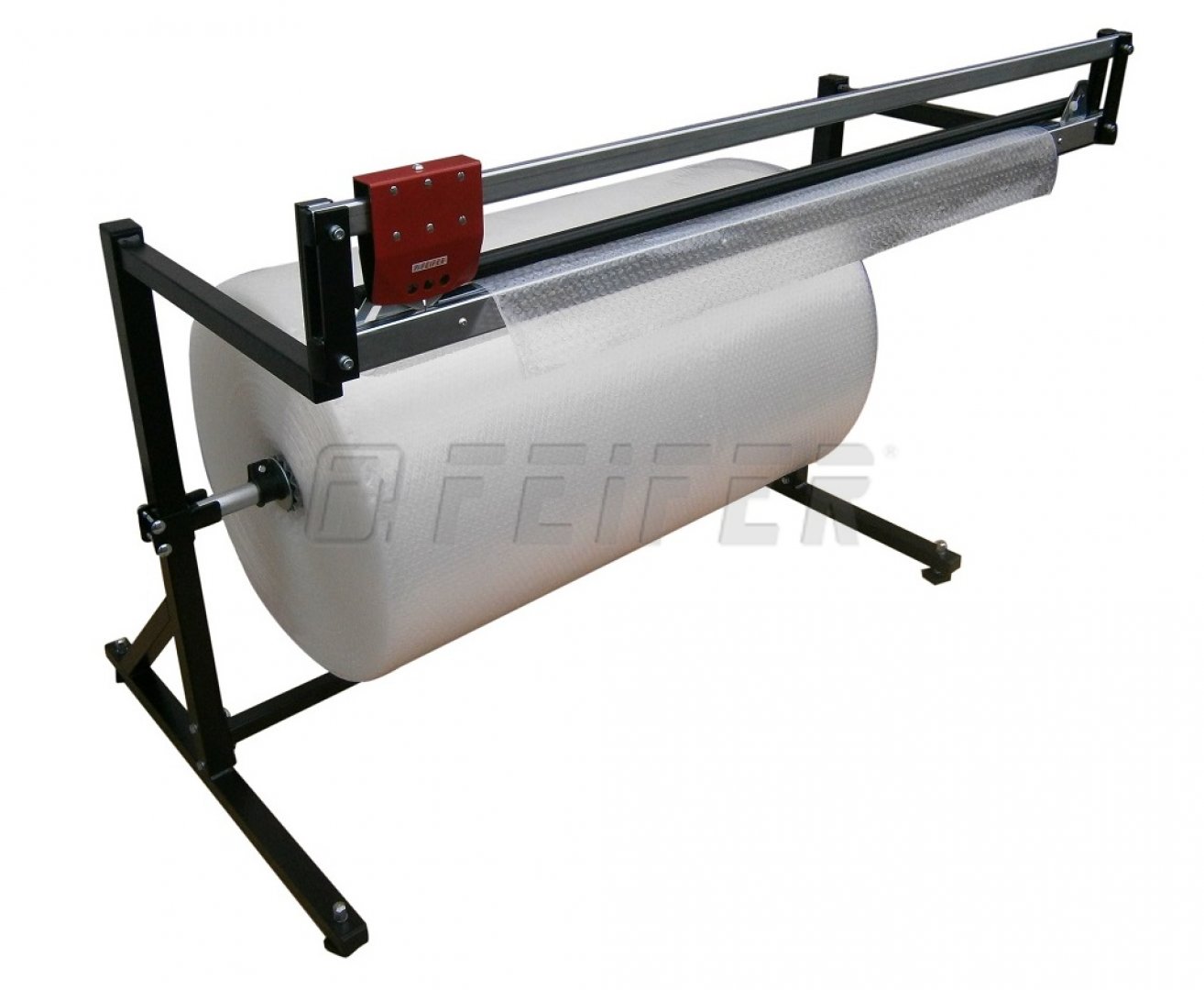

RH-1000 - cutting stand
Cutting stands are suitable accessories for your despatching departments. They can be used for cutting corrugated paper, wrapping paper, PP or PE films, bubble films, foams, etc. A wrapping material gripper and a cutting cassette enable you to cut easily and precisely demanded size of the wrapping material. These cutters are equipped with a universal plane blade, so they can be used for cutting most common materials (paper, corrugated paper, film, PE foam, bubble film...).
Non-standard modifications:
- equipped with wheels
- endwise longitudinal cutting
- special holder for cutting of light materials such as PE foam or bubble foil
- electronic measurement with an audio signal
- rewinding axis for rolls of packaging materials
Technical parameters
Modification
Spare part
Product videos
Inquiry
Technical parameters
ordering code | 600 000171 |
max. working width | 1000 mm |
max. diameter of roll | 1000 mm |
max. roll weight | 80 kg |
dimension (l x w x h) | 1400 x 950 x 1050 mm |
weight | 25 kg |
Standard modifications
RH-750 - cutting stand

- width 750 mm
- horizontal
- one roll
- for paper and film
RH-1250 - cutting stand

- width 1250mm
- horizontal
- one roll
- for paper and film
RH-1600 - cutting stand

- width 1600mm
- horizontal
- one roll
- for paper and film
RH-2000 - cutting stand

- width 2000 mm
- horizontal
- one roll
- for paper and film
