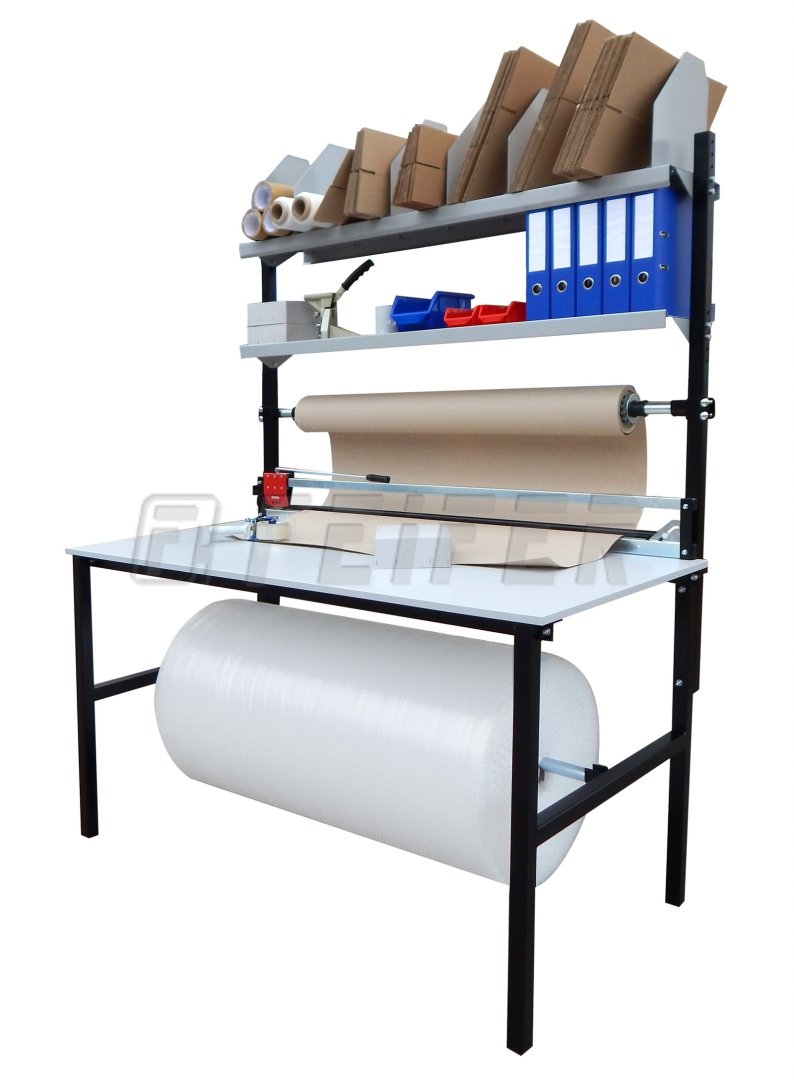

RHB-1000 - Packing workstation

This universal packing workstation is intended for packing areas and distribution centres where are used following roll wrapping materials: corrugated paper, wrapping paper, PE film, bubble film, PE film, etc.. Wrapping material gripper and a cutting cassette enable to cut easily and precisely demanded size of wrapping material. Reel bars are equipped with conical holders for optimal centring of roll core.

  • is possible to deliver in parts or add there some other components (lighting,...)
  • packing workstation optimizes whole wrapping process
  • it is used for goods completing and packets wrapping
  • minimized floor space
  • desk can be linked to a conveyor system
  • max. width of wrapping material - 1000 mm
  • cylindrical pulley for easier guidance of paper from upper roll
  • dimensions: 1420 x 980 x 2200 mm (l x w x h)
  • max. loading is 80 kg for lower decoiler and 25 kg for upper decoiler
  • set of extension legs for adjusting height of working desk on request
  • adjustable height upper shelf with dividers for packing material (boxes, envelopes,...)
  • robust working desk, adjustable height from 750 to 900 mm
  • superstructure with attachment for one roll and panel holder for other tools or accessories
Technical parameters
Accessories
Inquiry

Technical parameters

ordering code 600 001962
dimension (l x w x h) 1425 X 980 X 2220 mm
weight 80 kg
max. working width 1000 mm
max. diameter of the upper roll 300 mm
max. diameter of the under roll 700 mm
max. weight of the upper roll 25 kg
max. weight of the under roll 80 kg

Standard modifications
