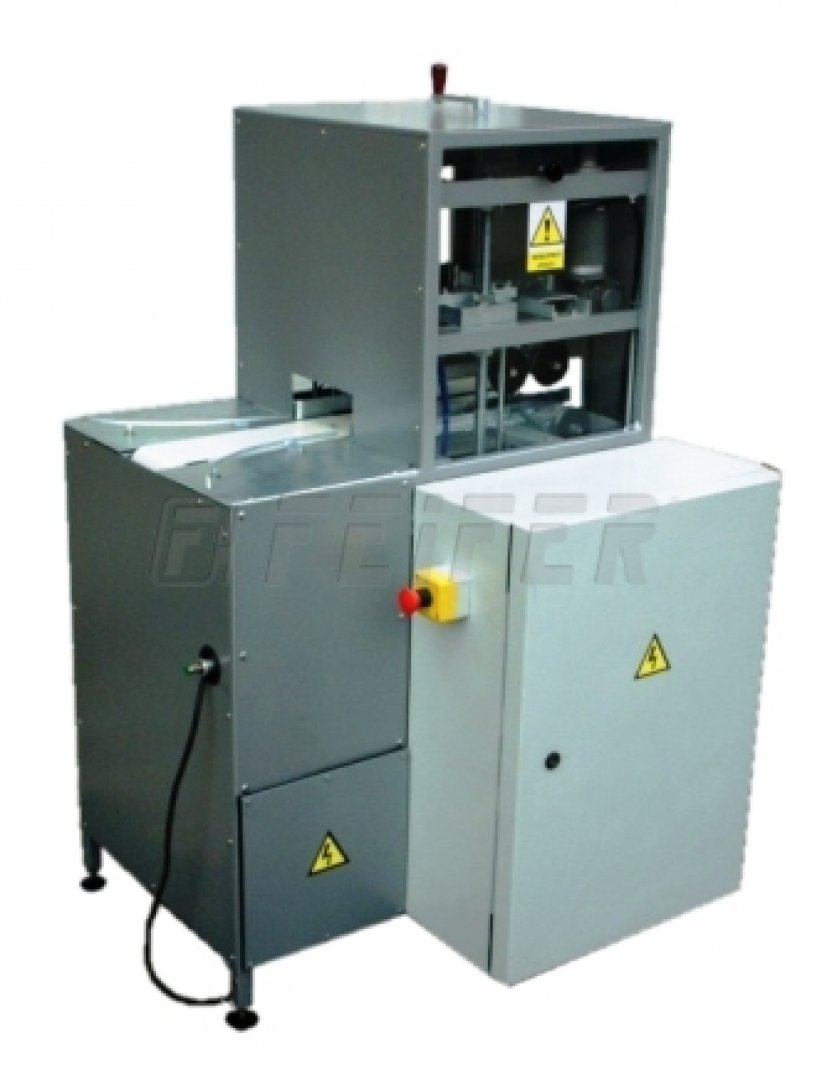

SK-14B polly cases sealer
This machine SK-14B is intended for sealing thermosealing packages used in food industry - e.g. frozen creams. Closing packages is performed by two points seal (joint of lower and upper part of a package on two opposite sides). The machine is in standard intended for use of types of packages (650 ml and 1000 ml), delivered by e.g. Technoplast and Mobal. The machine is equipped with advanced technology of ultrasonic sealing and with titanium working pike of sealing head. SK-14B is suitable for medium frequency sealing jobs (approx. 30 - 50 cycles / min.). The machine is delivered with zinc-chromium mechanics, machine covering is painted or stainless. Among next advantages belong min. maintenance and low operation costs. It is possible to modify the machine according to a customer´s demand.
Technical parameters
ordering code | 600 000061 |
dimension (l x w x h) | 845 x 700 x 1420 mm |
conveyor height | 900 mm |
weight | 160 kg |
supply voltage | 230V/50Hz |
compressed air | 4 - 6 bar |
