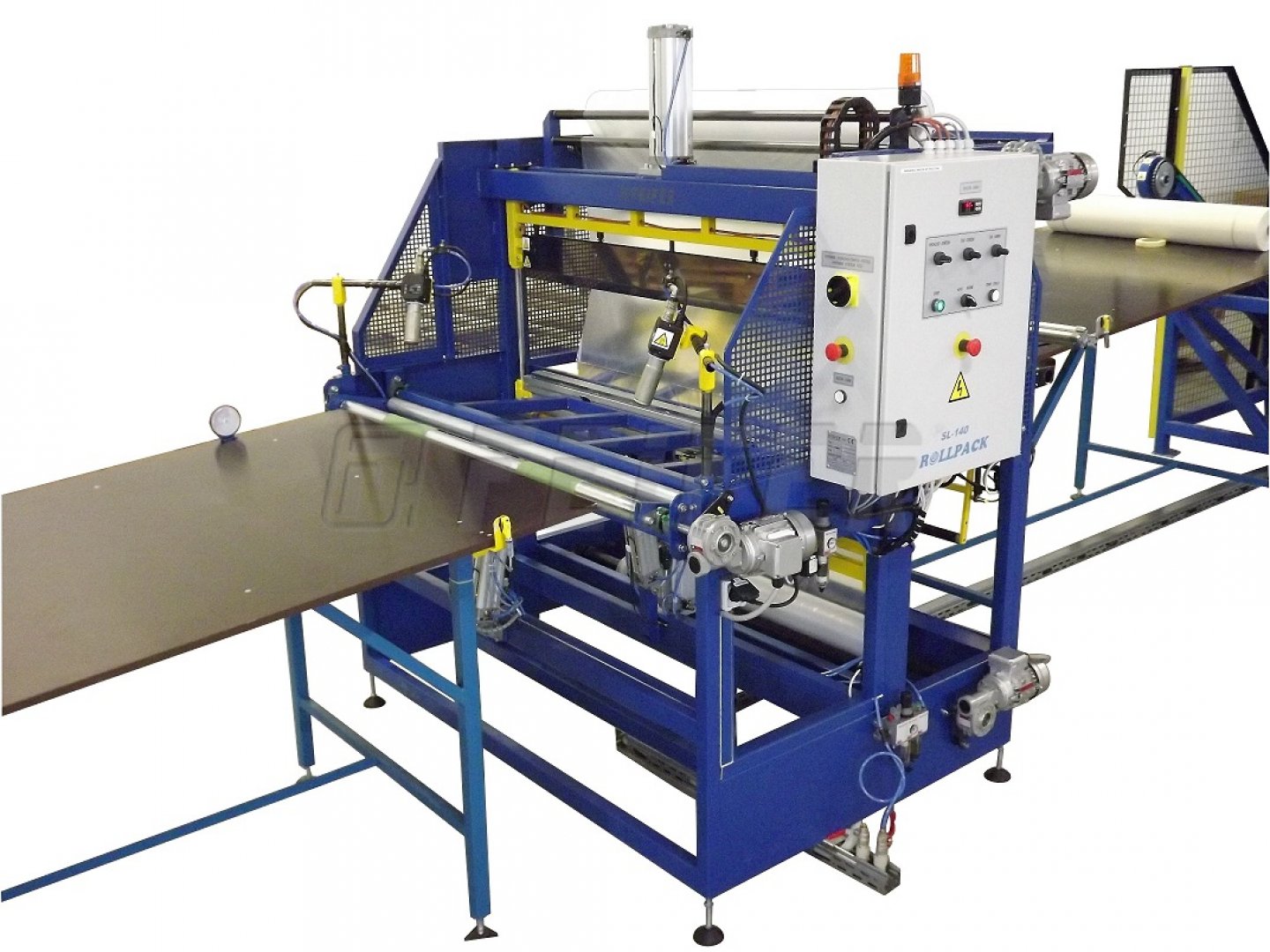

SL-140 PROFESSOR ROLLPACK - automatic film wrapping machine
Automatic wrapping machine SL-140 PROFESSOR ROLLPACK designed for rolled products. This machine is suitable for operations with medium packing capacity (up to 6 packs/min.). It is used mainly for packing in a hot-air shrinkable PE foil (LDPE) and designed for packing of rolled goods like wallpapers, classical and lattice fabrics. The machine can be equipped by hot-air nozzles for foil shrinking (using of shrink tunnel is not necessary), there is a possibility of manual loading of rolls or automatic loading. Customization of most parameters according to customer needs.
Among main advantages of this wrapping machine belong:
- maintenance-free, permanently heated sealing jaw
- electronic regulation of sealing temperature
- adjustable sealing time
- automatic unwinding of foil with braking function
The machine is designed for fully automatic or semi-automatic wrapping lines. Standard version is designed for rolls of diameter up to 250 mm and length 1300 mm.
Technical parameters
Inquiry
Technical parameters
| ordering code | 600 000748 |
| max. film dimension (width x diameter) | 1350 x 300 mm |
| material - foil |
PE |
| film thickness | 90 µm |
| max. packing width | 1300 mm |
| max. wrapping diameter | 250 mm |
| average air consumption | 440 l/min. |
| compressed air | 4 - 5 bar |
| power input | 2,5 / 8,5 kW |
| supply voltage | 400V/50Hz |
| machine length | 2320 mm |
| machine width | 1980 mm |
| machine height | 2100 mm |
| weight | 600 kg |
