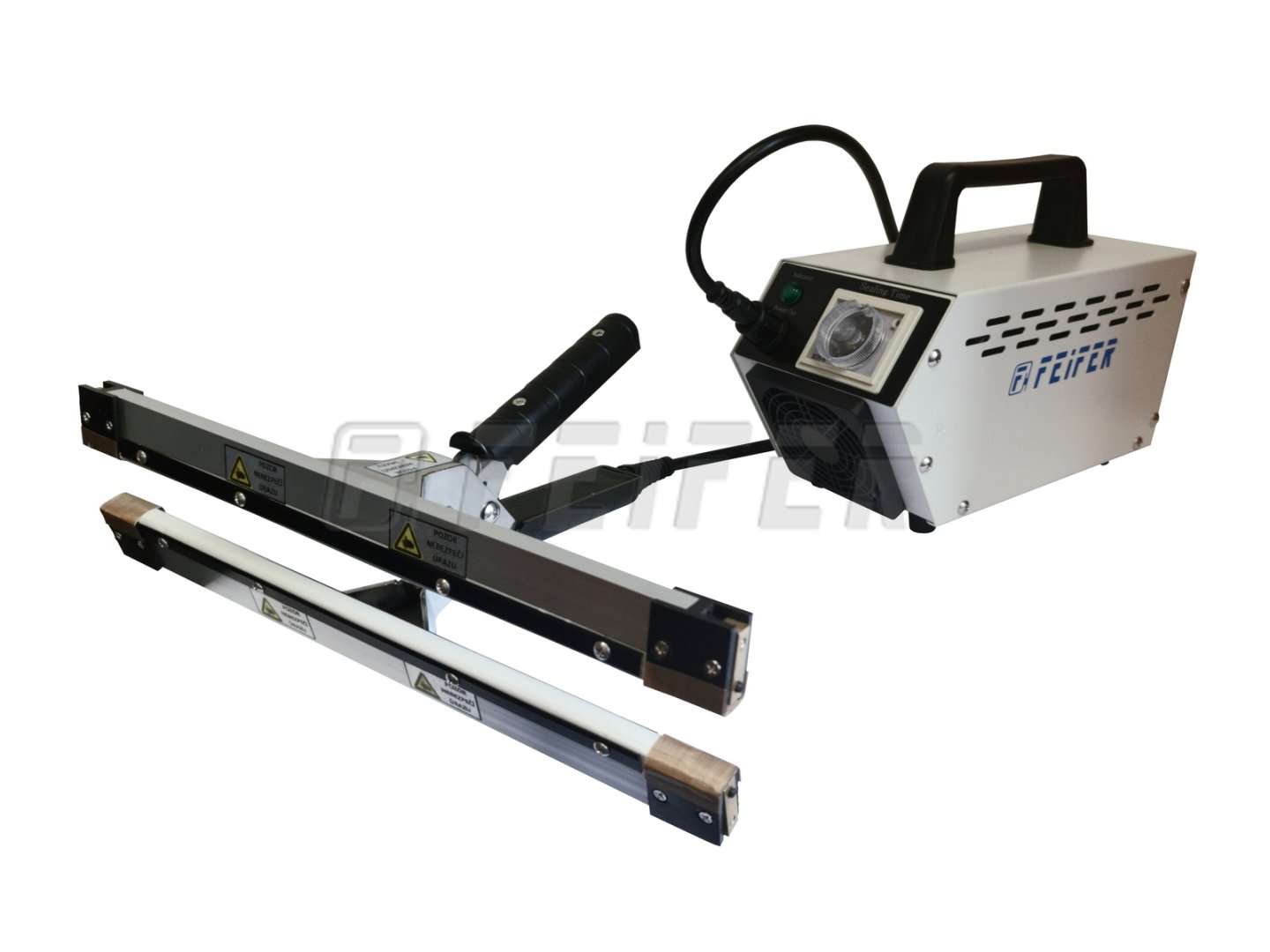

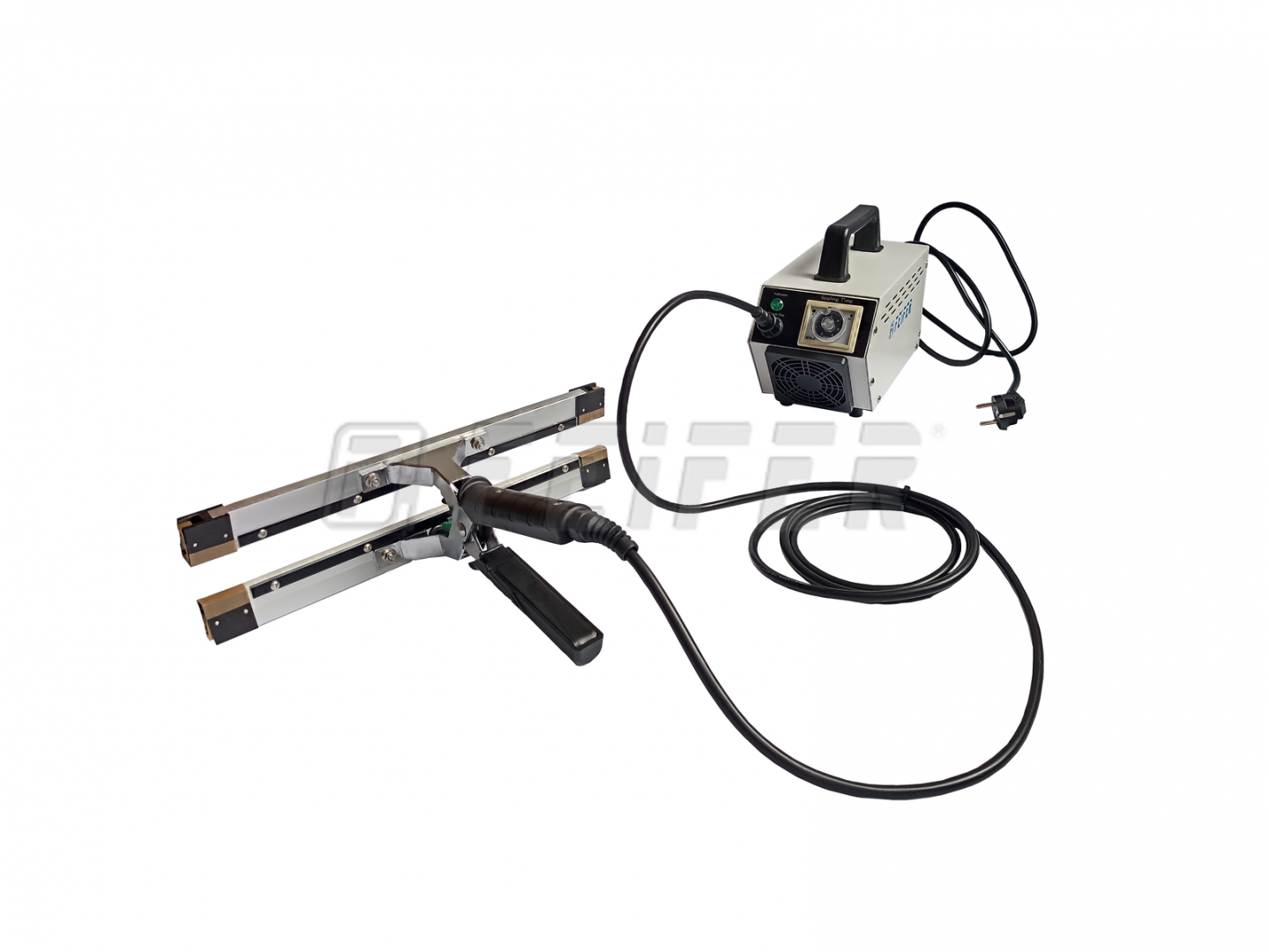

SO-30H II - welding jaw
The portable hand sealer SO-30H II is especially intended for sealing packaging foils arround large or heavy objects (e.g. overseas wrapping). This sealer is equipped with heated upper as well as lower jaw and with sealing time adjustment. PE and PP foil up to thickness of 0,25 mm is used for sealing.
Technical parameters
Modification
Accessories
Inquiry
Technical parameters
| ordering code | 700 025053 |
| supply voltage | 230V/50 Hz |
| power input | 0.45 kW |
| sealing slot | 30 mm |
| weight | 6 kg |
| material - foil |
PE PP |
| max. film thickness | 250 µm |
| max. sealing length | 310 mm |
| sealing width | 5 mm |
| sealing time | 0 - 6 s |
| roll type |
sleeve flat foil |
| electric box weight | 4.5 kg |
Standard modifications
SOC-30H - Constantly heated portable hand impulse sealer
- sealing lenght 300 mm
- for laminated materials, BOPP
- sealing width 12 mm
- constantly heated sealers
SO-30H - portable hand impulse sealer
- sealing length - 320 mm
- heated upper and lower jaw
- acoustic signal of sealing
- for large or heavy objects
HPW-600 - Portable I-Bar sealer
- sealing lenght 600 mm
- sealing width 3 mm
- for production of larger bags, plastic greenhouses
Recommended accessories
OF-300 - PE film decoiler
- for film width up to 300 mm
- fluent unwinding guide
- accessory for impulse sealers
