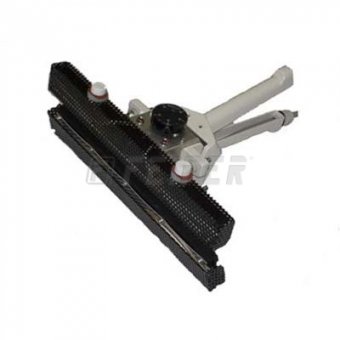

SOC-40H - Constantly heated portable hand impulse sealer
Constantly heated portable hand impulse sealer is used for welding cellophane & BOPP foil, laminated materials (waxed paper, aluminium barrier foil, by heat sealable labels), atc. It is equipped with constantly heated upper and lower (teflonized) heating sealer. Weld width is 12 mm, weld lenght is 400 mm. The weld is embossed. The maximum thickness of foil is 200 µm (AL-PE). The sealer is equipped with a temperature regulator (up to 200°C). This type is suitable for plants with low packaging capacity
Among main advantages of this sealer belong:
- mobile using (cable lenght is 3 m)
- low weight
- excellent ergonomics
- no requirement for special operator skills
Technical parameters
Modification
Accessories
Spare part
Inquiry
Technical parameters
| ordering code | 700 011146 |
| material - foil |
cellophane BOPP lamin.material (wax paper aluminum foil other foils heat sealable labels) |
| sealing width | 12 mm |
| max. sealing length | 400 mm |
| max. film thickness | 200 µm |
| power input | 0,42 kW |
| built-in blade | no |
| weight | 3,5 kg |
Standard modifications
SOC-30H - Constantly heated portable hand impulse sealer
- sealing lenght 300 mm
- for laminated materials, BOPP
- sealing width 12 mm
- constantly heated sealers
Recommended accessories
OF-300 - PE film decoiler
- for film width up to 300 mm
- fluent unwinding guide
- accessory for impulse sealers
OF-600 - PE film decoiler
- for film width up to 600 mm
- fluent unwinding guide
- accessory for impulse sealers
