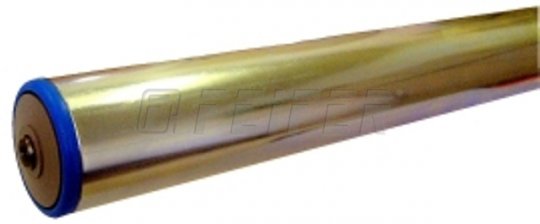

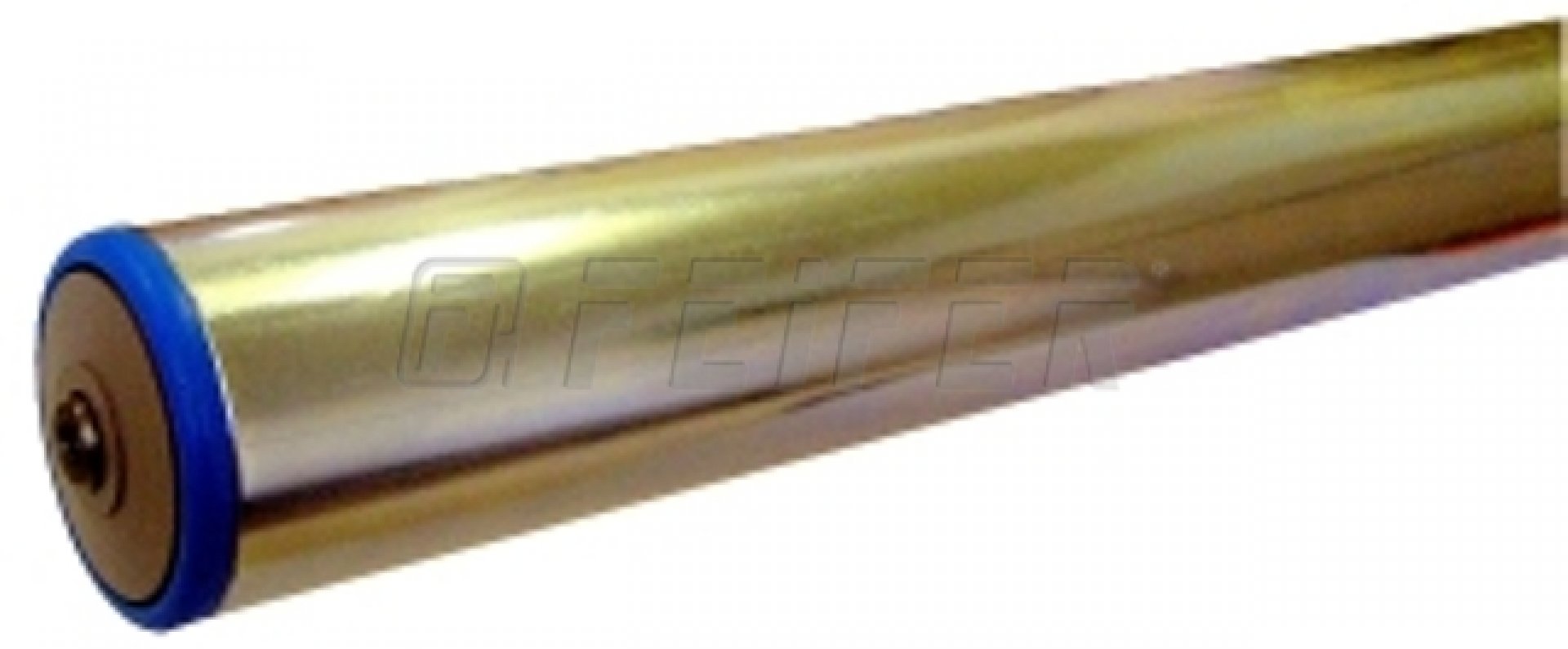

Steel roller type 5, diam. 50, axis 12 mm/outer M8, l=500 mm, 70 kg
Technical parameters
Modification
Accessories
Spare part
Inquiry
Technical parameters
| ordering code | 500 009823 |
| max. loading | 70 kg |
| material of coat roller |
steel |
| roller diameter | 50 mm |
| shaft diameter | 12 mm |
| thread | M8 |
| coat length | 500 mm |
| clamping roller length | 505 mm |
Standard modifications
Steel roller type 5, diam. 50, axis 12 mm/outer M8, l=200 mm, 100 kg
- roller diam. 50 mm
- shaft diam. 12 mm
- lenght = 200 mm
- load. capacity 100 kg
Steel roller type 5, diam. 50, axis 12 mm/outer M8, l=300 mm, 90 kg
- roller diam. 50 mm
- shaft diam. 12 mm
- lenght = 300 mm
- load. capacity 90 kg
Steel roller type 5, diam. 50, axis 12 mm/outer M8, l=400 mm, 80 kg
- roller diam. 50 mm
- shaft diam. 12 mm
- lenght = 400 mm
- load. capacity 80 kg
Steel roller type 5, diam. 50, axis 12 mm/outer M8, l=600 mm, 60 kg
- roller diam. 50 mm
- shaft diam. 12 mm
- lenght = 500 mm
- load. capacity 60 kg
Steel roller type 5, diam. 50, axis 12 mm/outer M8, l=800 mm, 40 kg
- roller diam. 50 mm
- shaft diam. 12 mm
- lenght = 800 mm
- load. capacity 40 kg
Steel roller type 5, diam. 50, axis 12 mm/outer M8, l=1000 mm, 20 kg
- roller diam. 50 mm
- shaft diam. 12 mm
- lenght = 1000 mm
- load. capacity 20 kg
