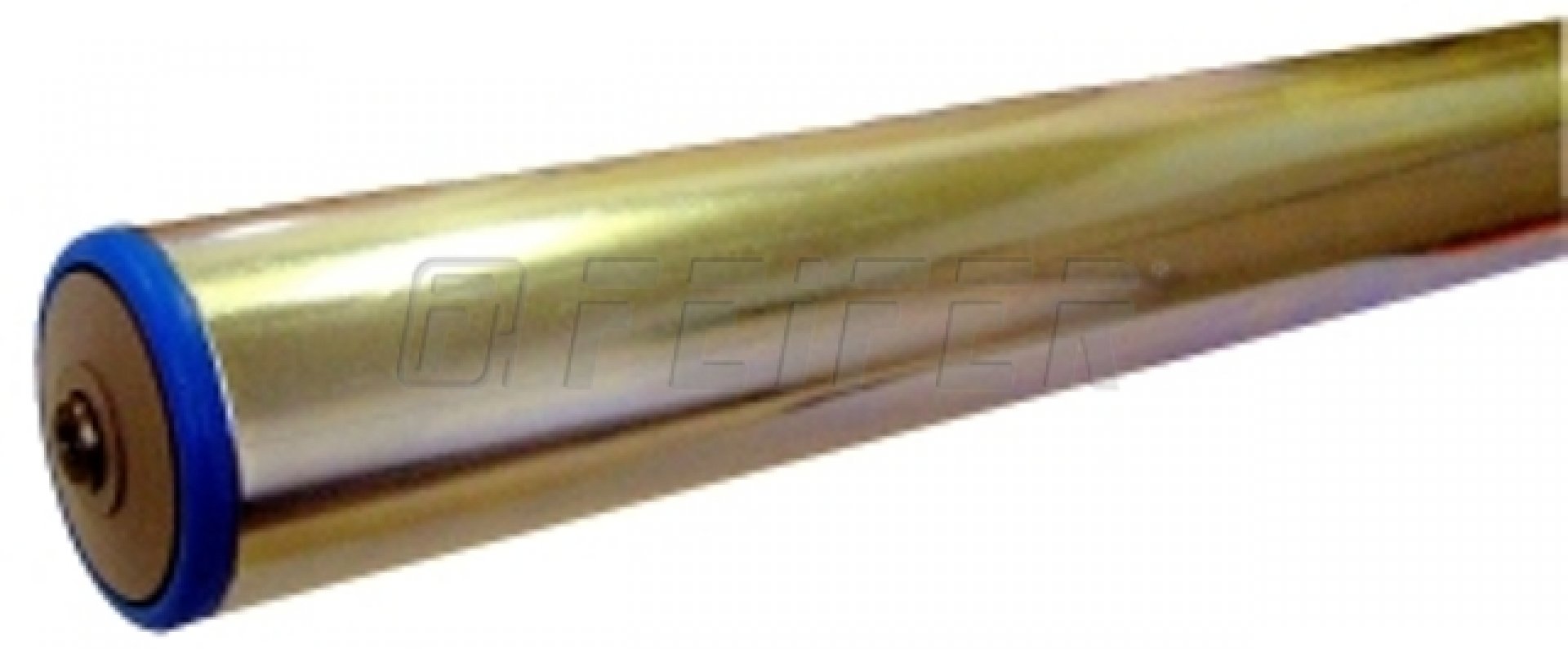

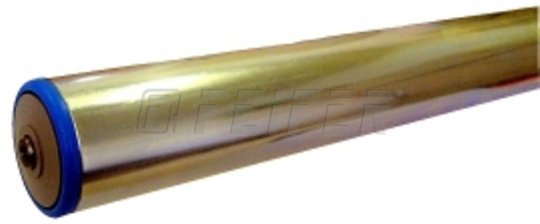

Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=500 mm, 250 kg
Technical parameters
Modification
Accessories
Spare part
Inquiry
Technical parameters
| ordering code | 500 009903 |
| max. loading | 250 kg |
| material of coat roller |
steel |
| roller diameter | 80 mm |
| shaft diameter | 20 mm |
| thread | M10 |
| coat length | 500 mm |
| clamping roller length | 505 mm |
Standard modifications
Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=200 mm, 250 kg
- roller diam. 80 mm
- shaft diam. 20 mm
- lenght = 200 mm
- load. capacity 250 kg
Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=300 mm, 250 kg
- roller diam. 80 mm
- shaft diam. 20 mm
- lenght = 300 mm
- load. capacity 250 kg
Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=400 mm, 250 kg
- roller diam. 80 mm
- shaft diam. 20 mm
- lenght = 400 mm
- load. capacity 250 kg
Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=600 mm, 250 kg
- roller diam. 80 mm
- shaft diam. 20 mm
- lenght = 600 mm
- load. capacity 250 kg
Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=800 mm, 200 kg
- roller diam. 80 mm
- shaft diam. 20 mm
- lenght = 800 mm
- load. capacity 200 kg
Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=1000 mm, 150 kg
- roller diam. 80 mm
- shaft diam. 20 mm
- lenght = 1000 mm
- load. capacity 150 kg
