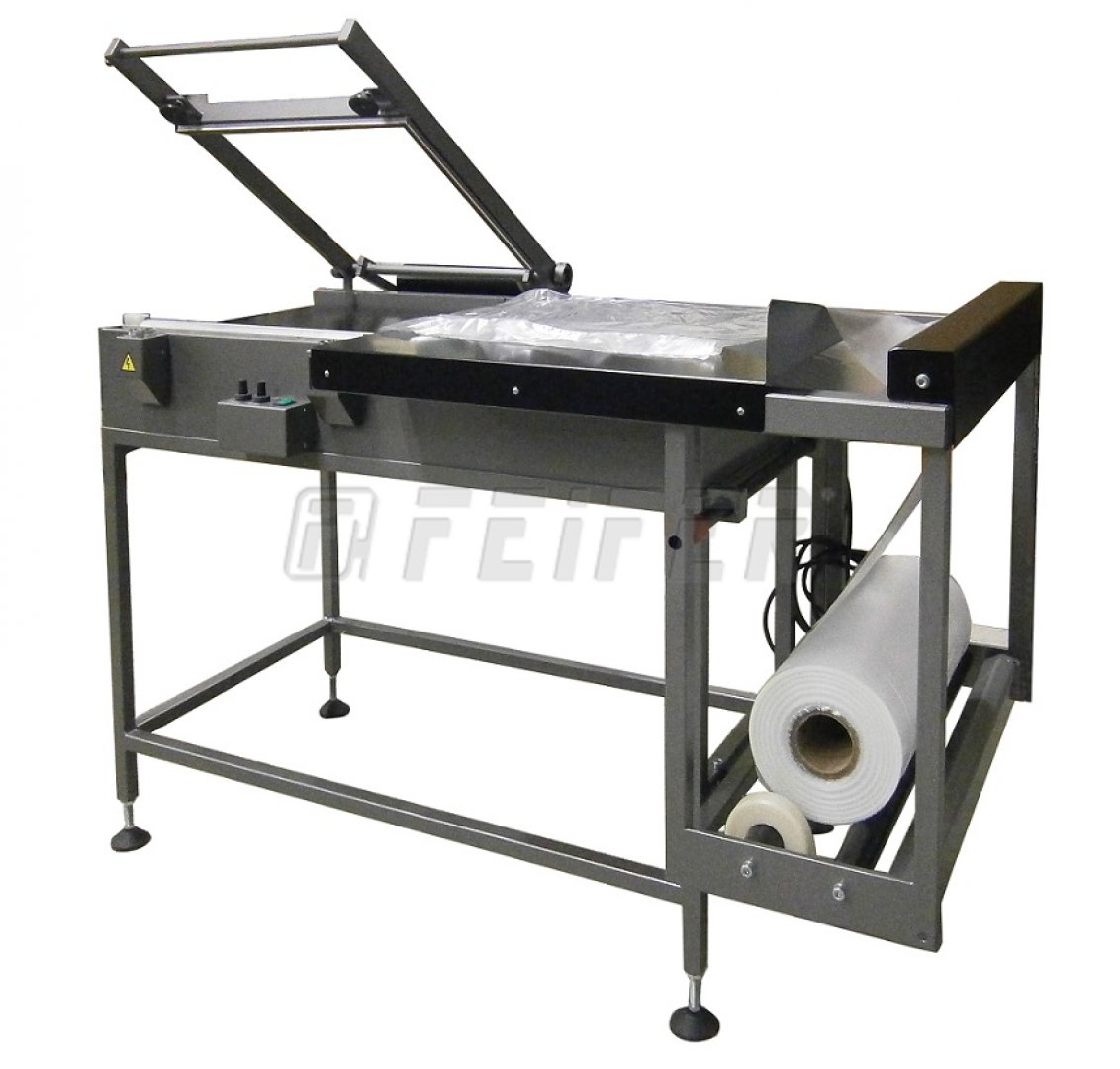

SU-2535 - industrial L-sealer
L-sealers SU-2535 are suitable for goods wrapping without necessity of foil shrink round a packaged object or are used together with shrink tunnels, for example HR-Holiterm. Thermo shrink foils designed as semi-tube (PVC, PP, POF,…) are used for wrapping. L-sealers - SU range are machines designed for industrial use.
Among main advantages of this sealer belong:
- jaw holding by means of electromagnet
- progressive foil impulse weld technology (canthal planchett laid in ceramic bed)
- two-transformer system and foil perforator
- infinitely adjustable welding and cooling time
- infinitely adjustable wrapping height according to height of wrapped item
These machines can be additionally equipped with the whole range of useful options for demanding customers, e.g.:
- motor driven foil unwinding and waste foil winding
- automatic conveyor
- pneumatic jaw tilting
- mechanic semi-tube foil opening, etc.
Easy operation: An operator inserts a packaged object between foils, shifts packet under the welding jaw and tilts the jaw. Foil welding happens automatically. Time during the jaw is automatically hold by means of electromagnet can by used by the operator to prepare another packet. As soon as the packet is sealed into foil, the magnet releases the jaw
Jaws dimensions of the type SU-2535 are 250 x 350 mm.
Technical parameters
Modification
Accessories
Packing material
Inquiry
Technical parameters
| ordering code | 600 000046 |
| material - foil |
PE PVC PP POF |
| roll type |
center folded foil |
| max. film thickness | 80 µm |
| sealing dimension | 250 x 350 mm |
| max. wrapping height | 150 mm |
| power input | 1,6 kW |
| average power consumption | 0,4 kW/hour |
| max. film dimension (width x diameter) | 500 x 250 mm |
| dimension (l x w x h) | 1030 x 1000 x 1100 mm |
| supply voltage | 230V/50Hz |
Standard modifications
SU-5050 - L-sealer
- sealing jaw - 500 x 500 mm
- for PE, PP, POF, PVC films
- easy operation
- for industrial use
SU-6040 - industrial L-sealer
- sealing jaw - 600 x 400 mm
- for PE, PP, POF, PVC films
- easy operation
- for industrial use
SU-7055 - industrial L-sealer
- sealing jaw - 700 x 550 mm
- for PE, PP, POF, PVC films
- easy operation
- for industrial use
SU-9080 - industrial L-sealer
- sealing jaw - 900 x 800 mm
- for PE, PP, POF, PVC film
- easy operation
- for industrial use
Recommended accessories
HR-5023 HOLITERM - industrial shrink tunnel
- passage size - 500 x 230 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
HR-5040 HOLITERM - industrial shrink tunnel
- passage size - 500 x 400 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
Binding and packaging materials
POF 200 x 0,015 mm, 1250 m - shrink foil, half tube
- width - 200 mm
- thickness - 0,015 mm
- design half-tube/half-sleeve
POF 250 x 0,019 mm, 1000 m - shrink foil, half tube
- width - 250 mm
- thickness - 0,019 mm
- design half-tube/half-sleeve
POF 300 x 0,019 mm, 1000 m - shrink foil, half tube
- width - 300 mm
- thickness - 0,019 mm
- design half-tube/half-sleeve
POF 350 x 0,015 mm, 1250 m - shrink foil, half tube
- width - 350 mm
- thickness - 0,015 mm
- design half-tube/half-sleeve
POF 350 x 0,019 mm, 1000 m - shrink foil, half tube
- width - 350 mm
- thickness - 0,019 mm
- design half-tube/half-sleeve
POF 350 x 0,025 mm, 750 m - shrink foil, half tube
- width - 350 mm
- thickness - 0,025 mm
- design half-tube/half-sleeve
POF 400 x 0,019 mm, 1000 m - shrink foil, half tube
- width - 400 mm
- thickness - 0,019 mm
- design half-tube/half-sleeve
POF 400 x 0,025 mm, 750 m - shrink foil, half tube
- width - 400 mm
- thickness - 0,025 mm
- design half-tube/half-sleeve
PVC 400 x 0,025 mm - shrink foil, half tube
- width - 400 mm
- thickness - 0,025 mm
- design half-tube/half-sleeve
