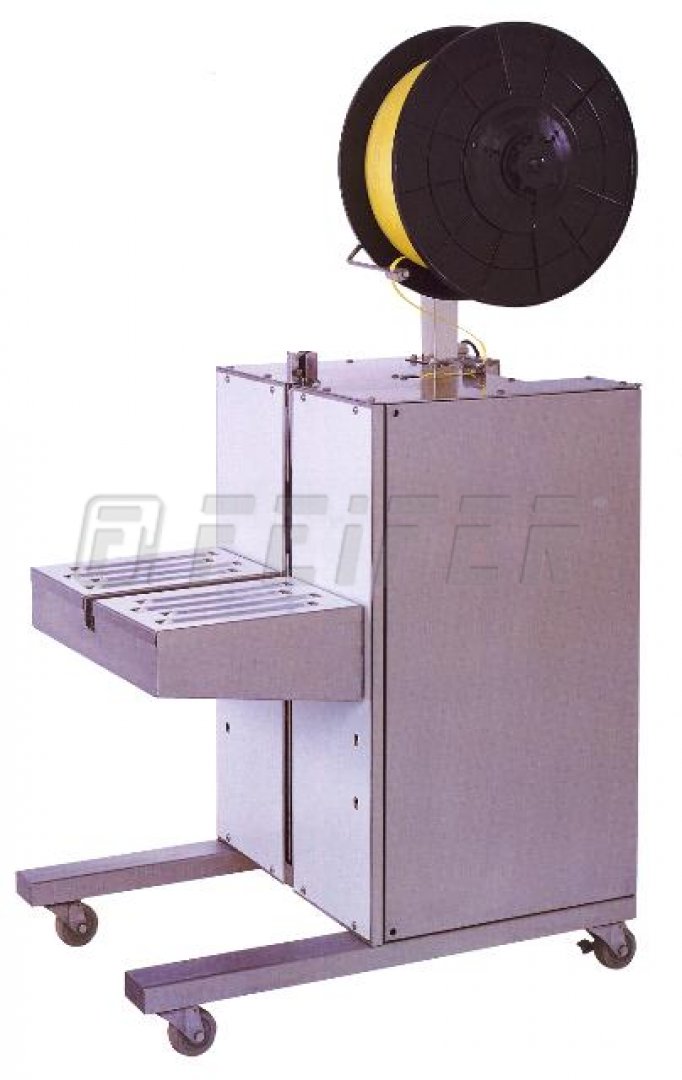

TP-205VS - semi-automatic strapping machine
Semi-automatic strapping machine TP-205VS for PP strap is designed for strapping goods with higher risk of impurity release or material fragment release. Adjusting and sealing device is situated on the side of machine, thereby machine damage by impurities is decreased. The machine is designed for medium frequency strapping jobs and is adjustable for PP strap of a width of 5,5-15mm.
Among main advantages of this tool belong
- easy operation
- adjustable tightening power
- side strapping mechanism
- electromagnetic clutch for cycles stepping in standard version
- low requirements for maintenance
- fluently adjusting work desk height
- innovated electronics
- time of motor run and time of cooling the strap weld are separately adjustable
Operation - The operator put the packaged item to the machine's work desk, get the strap aroung packaged item and insert the strap to the strapping slot. The strap is automatically tightened, welded and sticked out for new strapping.
Technical parameters
Packing material
Inquiry
Technical parameters
| ordering code | 700 008286 |
| strap - material |
PP |
| strap width | 5,5 - 15 mm |
| power input | 0,35 kW |
| supply voltage | 230V/50Hz |
| weight | 80 kg |
| packing rate | 14 straps/min. |
| dimension (l x w x h) | 570 x 750 x 200 mm |
| inner diameter of roll | 200 mm |
| tightening power | max. 550 N |
Standard modifications
Binding and packaging materials
PP strap 5,5 x 0,50 mm, 200/190 - 5000 m, 700 N, natural (white)
- width 5,5 mm, thickness 0,50 mm
- natural color (white)
- strength 700 N
- tube 200 mm, roll 5000 m
PP strap 10 x 0,40 mm, 200/190 - 3500 m, 1160 N, black
- width 10 mm, thickness 0,40 mm
- black color
- strenght 1160 N
- tube 200 mm, roll 3500 m
PP strap 10 x 0,40 mm, 200/190 - 3500 m, 1160 N, natural (white)
- width 10 mm, thickness 0,40 mm
- natural color (white)
- strenght 1160 N
- tube 200 mm, roll 3500 m
PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 200 mm, roll 3100 m
PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200 N, white
- width 15 mm, thickness 0,65 mm
- white, cross strapped
- strength 2200 N
- tube 200, roll 2000 m
PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200N, black
- width 15 mm, thickness 0,65 mm
- black color
- strength 2200 N
- tube 200, roll 2000 m
