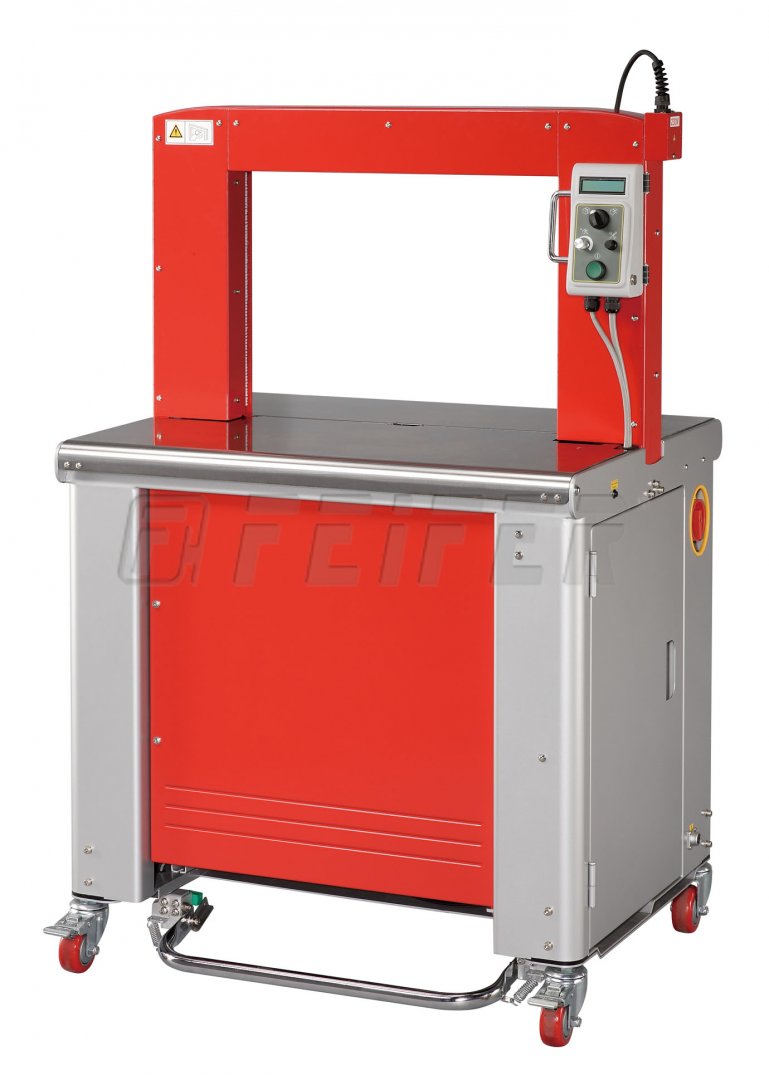

TP-702 MERCURY - automatic strapping machine
This strapping machine TP-702 MERCURY is suitable for strapping newspapers, cartons, textile products, etc. with PP strap. The machine is able to work in semi-automatic or automatic working mode.
Among main advantages of this strapping machine belong:
- high speed of strapping (65 cycles/min.!)
- high level of automatization
- easy operation
- min. outer dimensions
- high reliability
- automatic strap feeding into the machine
- loop-eject clears unwanted strap automatically, if the machine is strapped without any package
- automatic opening of arch in case of malfunction
- adjustable height of work desk
- adjustable tightening power
The machine works with strap of the width of 5 – 6 mm with inner diameter of coil of 200 mm. Error messages are displayed on LCD panel.
Non-standart options:
- arch size modification
- fully-automatic version with belt conveyor
- modification for PP strap with width of 8 - 9 mm, 12 mm.
Technical parameters
Modification
Accessories
Packing material
Inquiry
Technical parameters
| ordering code | 700 009562 |
| supply voltage | 230V/50Hz |
| power input | 0,5 kW |
| strap - material |
PP |
| strap width | 5,5 (5 - 6) mm |
| strap thickness | 0,35 - 0,65 mm |
| inner diameter of roll | 200 mm |
| weight | 157 kg |
| packing rate | 65 straps/min. |
| arch width | 550 mm |
| arch height | 400 mm |
| machine length | 840 mm |
| machine width | 650 mm |
| machine height | 1405 mm |
Standard modifications
TP-128 FORTE - automatic PP strapping machine - archives
- strap width - 10 - 15 mm
- max. packing rate 28 straps/min.
- built-in decoiler
- excelent value for money
Recommended accessories

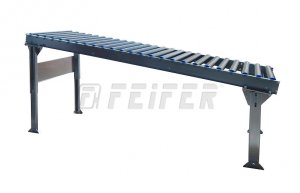

DP500 conveyor - plastic rollers, L=1000 mm, A=100 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 1 m
- roller axis pitch - 100 mm

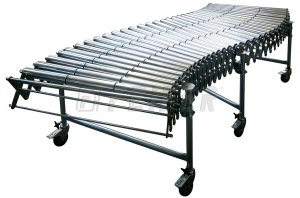

DH500 conveyor - 2 plastic rollers, extensible 2,92 - 7,36m
- for straight and curved routes
- 2 plastic rollers on axis
- conveyor length - 2,92 - 7,36 m
- conveyor width - 500 mm
DH500 conveyor - 2 plastic rollers, extensible 2,31 - 5,80m
- for straight and curved routes
- 2 plastic rollers on axis
- conveyor length - 2,31 - 5,80 m
- conveyor width - 500 mm
DH500 conveyor - 2 plastic rollers, extensible 1,70 - 4,24m
- for straight and curved routes
- 2 plastic rollers on axis
- conveyor length - 1,70 - 4,24 m
- conveyor width - 500 mm
DH500 conveyor - 2 plastic rollers, extensible 1,10 - 2,68m
- for straight and curved routes
- 2 plastic rollers on axis
- conveyor length - 1,10 - 2,68 m
- conveyor width - 500 mm
DH500 conveyor - 2 steel rollers, extensible 2,92 - 7,36m
- for straight and curved routes
- 2 steel rollers on axis
- conveyor length - 2,92 - 7,36 m
- conveyor width - 500 mm
DH500 conveyor - 2 steel rollers, extensible 2,31 - 5,80m
- for straight and curved routes
- 2 steel rollers on axis
- conveyor length - 2,31 - 5,80 m
- conveyor width - 500 mm
DH500 conveyor - 2 steel rollers, extensible 1,70 - 4,24m
- for straight and curved routes
- 2 steel rollers on axis
- conveyor length - 1,70 - 4,24 m
- conveyor width - 500 mm
DH500 conveyor - 2 steel rollers, extensible 1,10 - 2,68m
- for straight and curved routes
- 2 steel rollers on axis
- conveyor length - 1,10 - 2,68 m
- conveyor width - 500 mm
DP500 conveyor - plastic rollers, L=2000 mm, A=100 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 2 m
- roller axis pitch - 100 mm
DP500 conveyor - plastic rollers, L=2000 mm, A=80 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 2 m
- roller axis pitch - 80 mm
DP500 conveyor - plastic rollers, L=2000 mm, A=60 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 2 m
- roller axis pitch - 60 mm
DP500 conveyor - plastic rollers, L=1500 mm, A=100 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 1,5 m
- roller axis pitch - 100 mm
DP500 conveyor - plastic rollers, L=1500 mm, A=80 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 1,5 m
- roller axis pitch - 80 mm
DP500 conveyor - plastic rollers, L=1500 mm, A=60 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 1,5 m
- roller axis pitch - 60 mm
DH - driven extensible roller conveyor 500mm, track 1050-2200 mm
- track width - 500 mm
- extensible, track -1050-2200 mm
- 20 rollers
DP500 conveyor - plastic rollers, L=1000 mm, A=80 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 1 m
- roller axis pitch - 80 mm
DP500 conveyor - plastic rollers, L=1000 mm, A=60 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 1 m
- roller axis pitch - 60 mm
DP500 conveyor - steel rollers, L=2000 mm, A=100 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 2 m
- roller axis pitch - 100 mm
DP500 conveyor - steel rollers, L=2000 mm, A=80 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 2 m
- roller axis pitch - 80 mm
DP500 conveyor - steel rollers, L=2000 mm, A=60 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 2 m
- roller axis pitch - 60 mm
DP500 conveyor - steel rollers, L=1500 mm, A=100 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 1,5 m
- roller axis pitch - 100 mm
DP500 conveyor - steel rollers, L=1500 mm, A=80 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 1,5 m
- roller axis pitch - 80 mm
DP500 conveyor - steel rollers, L=1500 mm, A=60 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 1,5 m
- roller axis pitch - 60 mm
DP500 conveyor - steel rollers, L=1000 mm, A=100 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 1 m
- roller axis pitch - 100 mm
DP500 conveyor - steel rollers, L=1000 mm, A=80 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 1 m
- roller axis pitch - 80 mm
DP500 conveyor - steel rollers, L=1000 mm, A=60 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 1 m
- roller axis pitch - 60 mm
Driven belt conveyor 4000x400 mm
- fluent speed regulation
- track width - 400 mm
- conveyor length - 4 m
DH - driven extensible roller conveyor 500mm, track 2250-4950 mm
- track width - 500 mm
- extensible, track -2250-4950 mm
- 44 rollers
DH - driven extensible roller conveyor 500mm, track 1650-3570 mm
- track width - 500 mm
- extensible, track -1650-3570 mm
- 32 rollers
Binding and packaging materials
PP strap 5,5 x 0,50 mm, 200/190 - 5000 m, 700 N, natural (white)
- width 5,5 mm, thickness 0,50 mm
- natural color (white)
- strength 700 N
- tube 200 mm, roll 5000 m
Sale
PP strap 6 x 0,55 mm, 200/190 - 5500 m, 750 N, green
- width 6 mm, thickness 0,55 mm
- green color
- strength 750 N
- tube 200 mm, roll 5500 m
