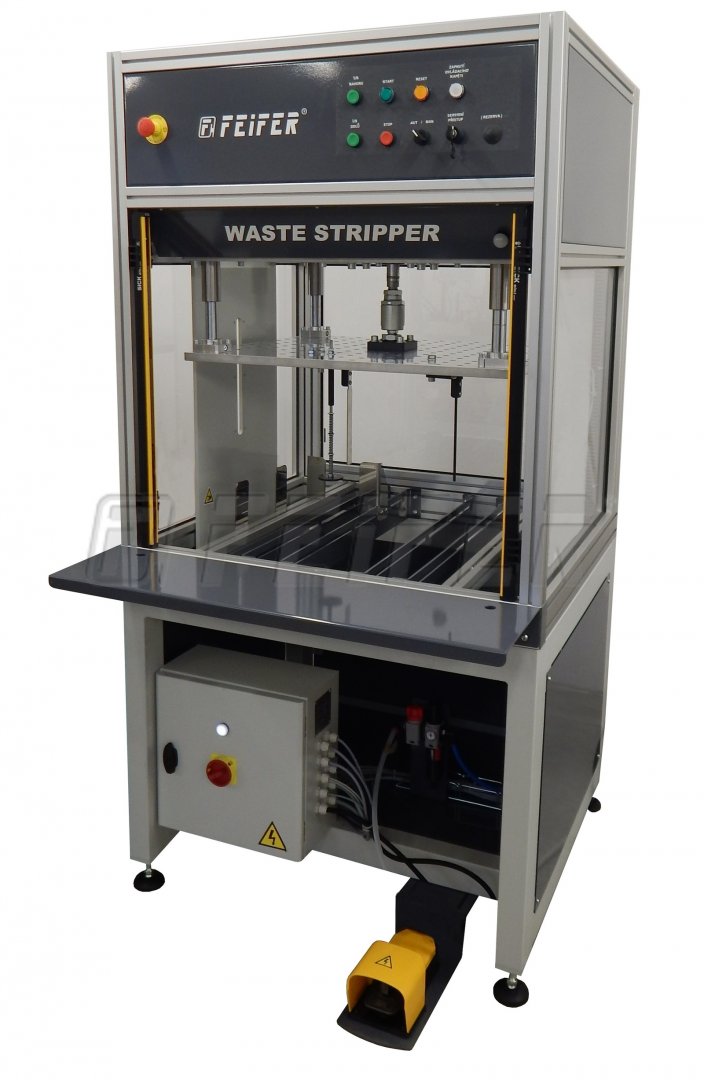

WASTE STRIPPER - pneumatic stripping machine
Pneumatic stripping machine is used to separate the excess part of paper, corrugated cardboard, foil, plastic, foam, or rubber. The design of the machine allows the attachment of various types and shapes of peeling tools and separation plate. The device has a precise vertical guidance of the stripping plate. The table is equipped with movable stops on the processed material.
- cycle start by foot pedal + active safety light barriers
- simple operation, all functions are controlled by the control panel
- light beacon to indicate the status of the device
- manual loading of the processed material
- quick adjustment to new production
- easy disposal of waste into a waste container
- the possibility of using universal or single-purpose peeling tools and boards
- soft holding of the material before the movement of the press - fixation of the material without the need for manual holding
- ideal also for smaller jobs thank to quick changeover time
- safety optical barrier preventing unauthorized starting of the machine by the operator
- service input from the rear of the machine
Technical parameters
Product videos
Inquiry
Technical parameters
ordering code | 600 002280 |
material |
paper corrugated cardboard film plastic foam rubber |
max. stack height | 100 mm |
max. sheet format | 800 x 650 mm |
working area size | 840 x 800 mm |
min. the size of the peeled product | 30 x 30 mm |
max. machine speed | 800 cycles/hour |
Press pressure | 8 kN |
supply voltage | 230/50 V/Hz |
power input | 0,7 kW |
compressed air | 6-8 bar |
dimension (l x w x h) | 1000 x 1150 x 2000 mm |
working height | 900 mm |
weight | 400 kg |
