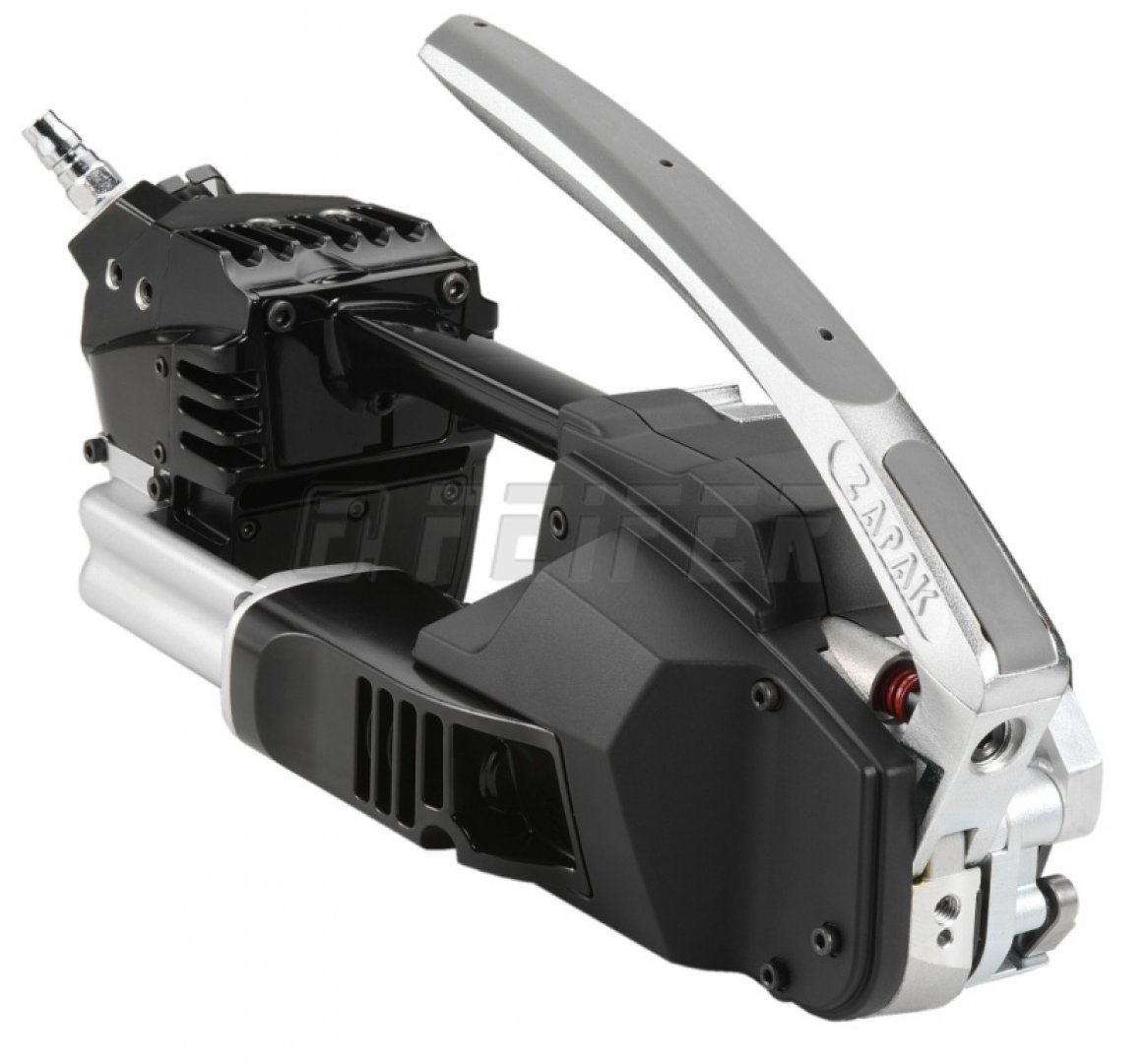

ZAPAK ZP28-6A - pneumatic strapping tool
Hand-operated strapping tools ZAPAK ZP28-6A with a pneumatic drive, which is suitable for strapping pallets or groups of goods with polypropylene or polyester strap. Against electric drive the pneumatic drive is advantageous especially because of its stable working, high level of safety and also because of ideal shock absorbing this tool has high lifetime. This strapping tool is equipped with automatic strap tensioning and sealing. Among main features of the tool belong high tightening power, ergonomic design, high reliability and excellent rate price / output.
Technical parameters
Modification
Accessories
Packing material
Inquiry
Technical parameters
| ordering code | 700 009163 |
| strap - material |
PP |
| strap width | 15 - 16 (PP), 12 - 16 (PET) mm |
| strap thickness | 0,75 - 1,05 (PP), 0,55 - 1,05 (PET) mm |
| weight | 4,3 kg |
| dimension (l x w x h) | 375 x 145 x 145 mm |
| compressed air | 6 - 7 bar |
| air consumption/cycle | 12 l/cyklus |
| tightening power | 1800 (PP), 3500 (PET) N |
Standard modifications
ZAPAK ZP28-9A - pneumatic strapping tool
- strap width - 16 - 19 mm
- pneumatic
- high tightening power (3500 N)
- stable working, high lifetime
PNP-19 - pneumatic strapping tool
- strap width - 13 - 19 mm
- pneumatic
- tightening power 3000 N
- stable working, high lifetime
Recommended accessories
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
OP-6 - decoiler for PP straps
- inner diameter - 400 mm
- spring brake of strap
- extra robust construction
- for high frequency jobs
OP-6E - decoiler for PP straps
- inner diameter - 200 and 400 mm
- simple screw brake on axis
- for low frequency jobs
OP-6EB - decoiler for PP straps
- inner diameter - 200 and 400 mm
- spring brake of strap
- for low frequency jobs
OP-10EB - decoiler for PP straps
- inner diameter - 200 mm
- spring brake of strap
- for low frequency jobs
Strap lance
- max. strap width - 35 mm
- easy strap threading under pallet
- for plastic and textile strap
ZP-5 - spring balancer for loading
- max. loading - 1-5 kg
- robust metal model (alloy)
- pre-tensioning by ergonom. rose
- safety device in case of break
OP-8 - decoiler for PP, PET, oscillated steel straps
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
Binding and packaging materials
PP strap 15 x 0,80 mm, 400/150 - 1500 m, 2700 N, black
- width 15 mm, thickness 0,80 mm
- black color
- strength 2700 N
- tube 400 mm, roll 1500 m
PET strap 12 x 0,60 mm, 406/145 - 2500 m, 2600 N, green
- width 12 mm, thickness 0,60 mm
- green color
- strength 2600 N
- tube 406 mm, roll 2500 m
PET strap 15,0 x 0,80 mm, 406/150 mm - 1400 m, 4550 N, EMBOSS 20%
- width 15 mm, thickness 0,80 mm
- green color
- strength 4550 N
- tube 406 mm, roll 1400 m
PET strap 15,5 x 0,70 mm, 406/145 - 1750 m, 3860 N, green
- width 15,5 mm, thickness 0,70 mm
- green color
- strength 4500 N
- tube 406 mm, roll 1750 m
PET strap 16 x 0,80 mm, 406/150 - 1200 m, 5200 N, EMBOSS 20%
- width 16 mm, thickness 0,80 mm
- green color
- strenght 5200 N
- tube 406 mm, roll 1200 m
PET strap 16 x 1,00 mm, 406/145 - 1200 m, 5700 N, green, EMBOSS 15%
- width 16 mm, thickness 1,00 mm
- green color
- strength 5700 N
- tube 406 mm, roll 1200 m
