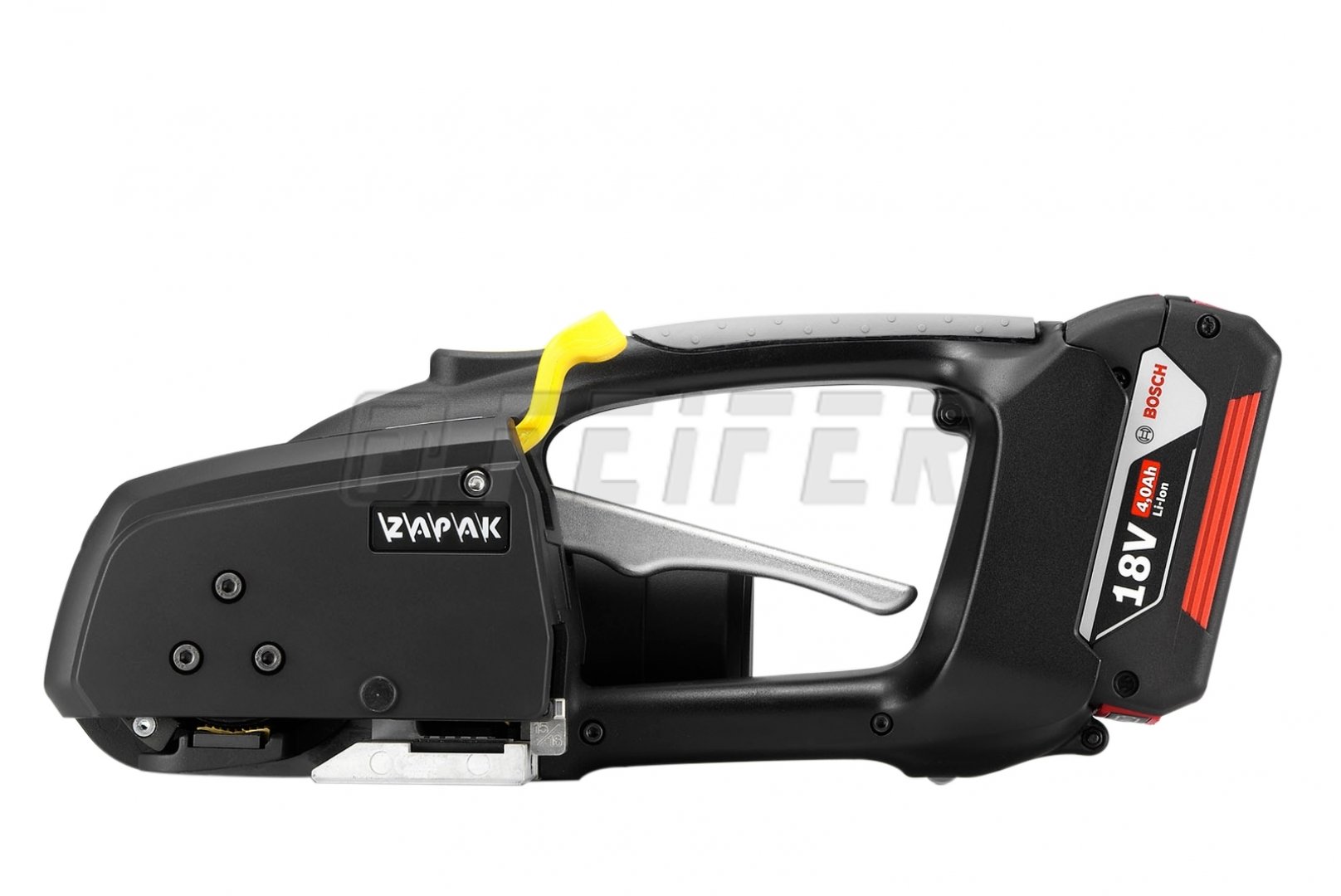

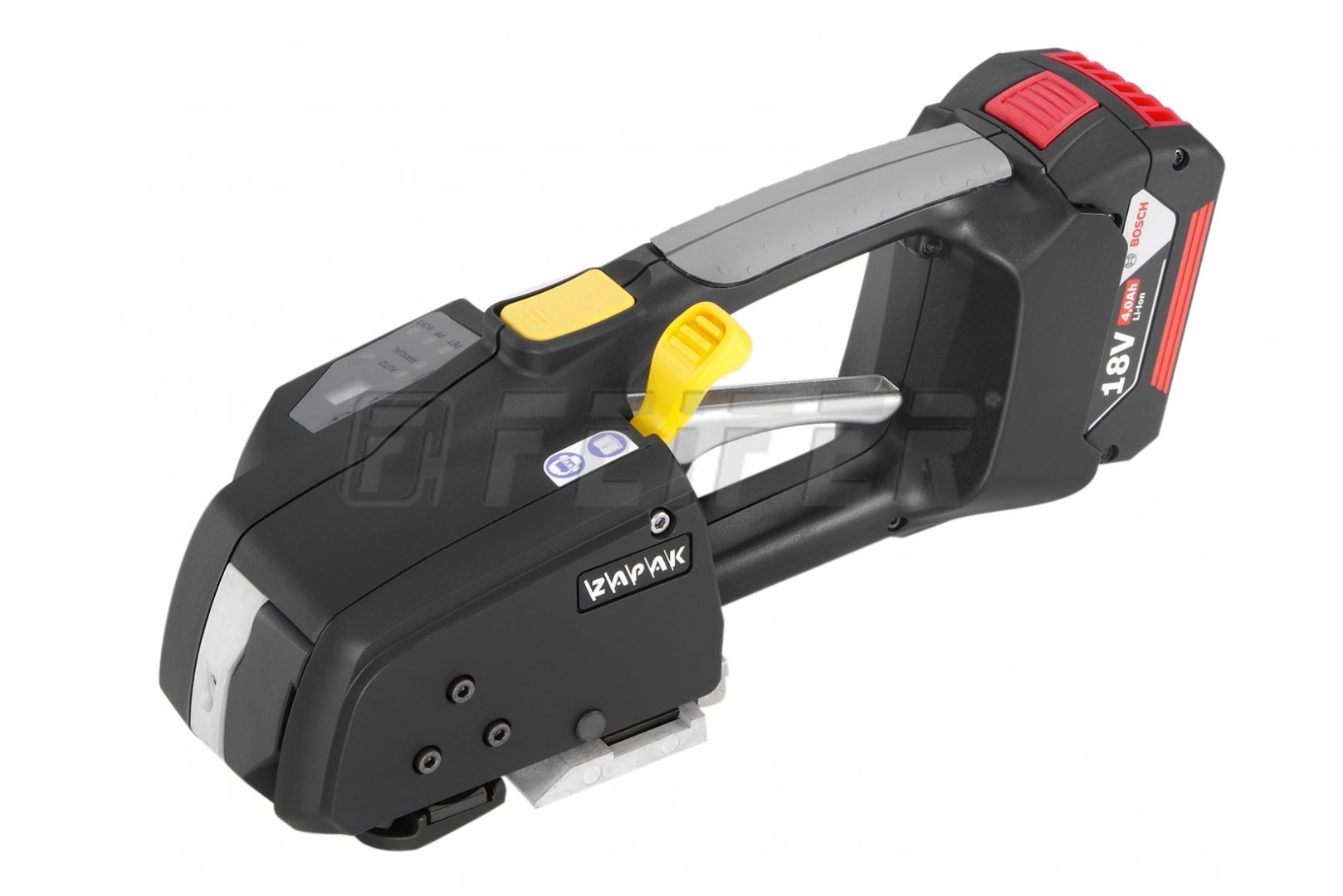

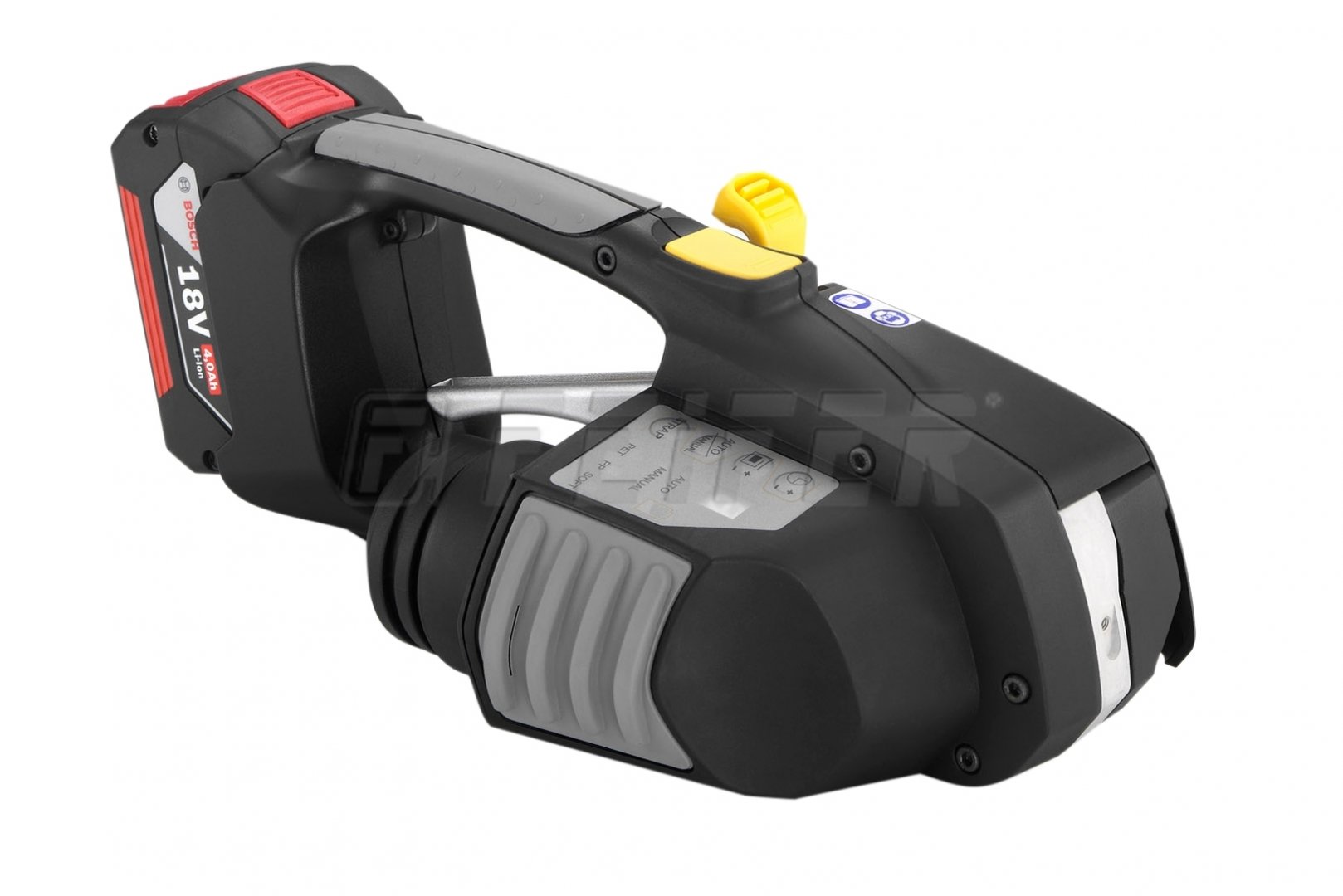

ZAPAK ZP97 - battery strapping tool for PP, PET

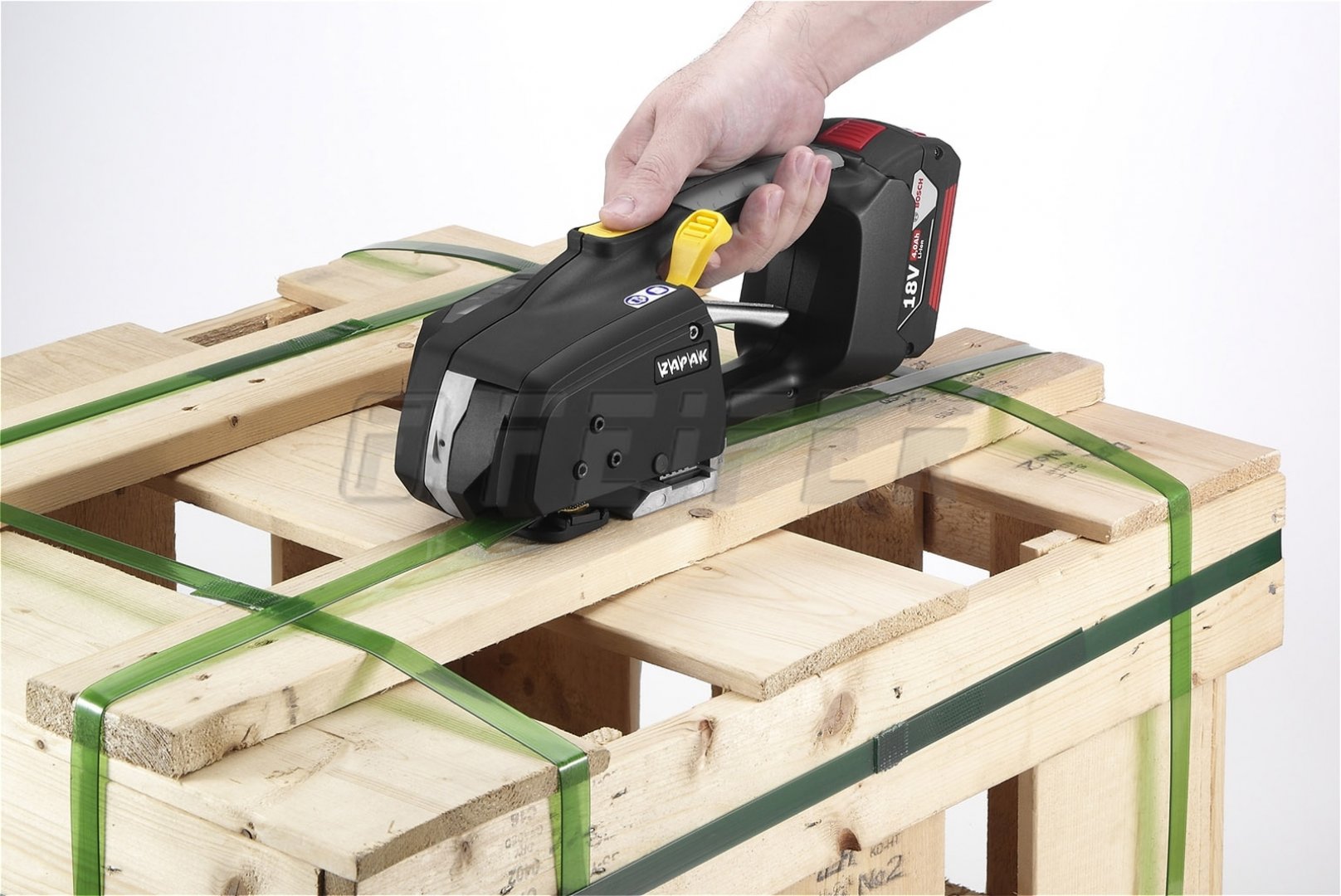

Hand-operated battery strapping tool ZAPAK ZP97 which is suitable for strapping pallets or groups of goods. PP and PET straps are used for strapping. This strapping tool is suitable for places, where it is not possible to connect to power supply, and is equipped with automatic tightening and sealing straps.
Among main advantages of this strapping tool belong:
- high tightening power
- extremely low weight
- ergonomic design
- excellent value for money
- fluently adjustable tightening power

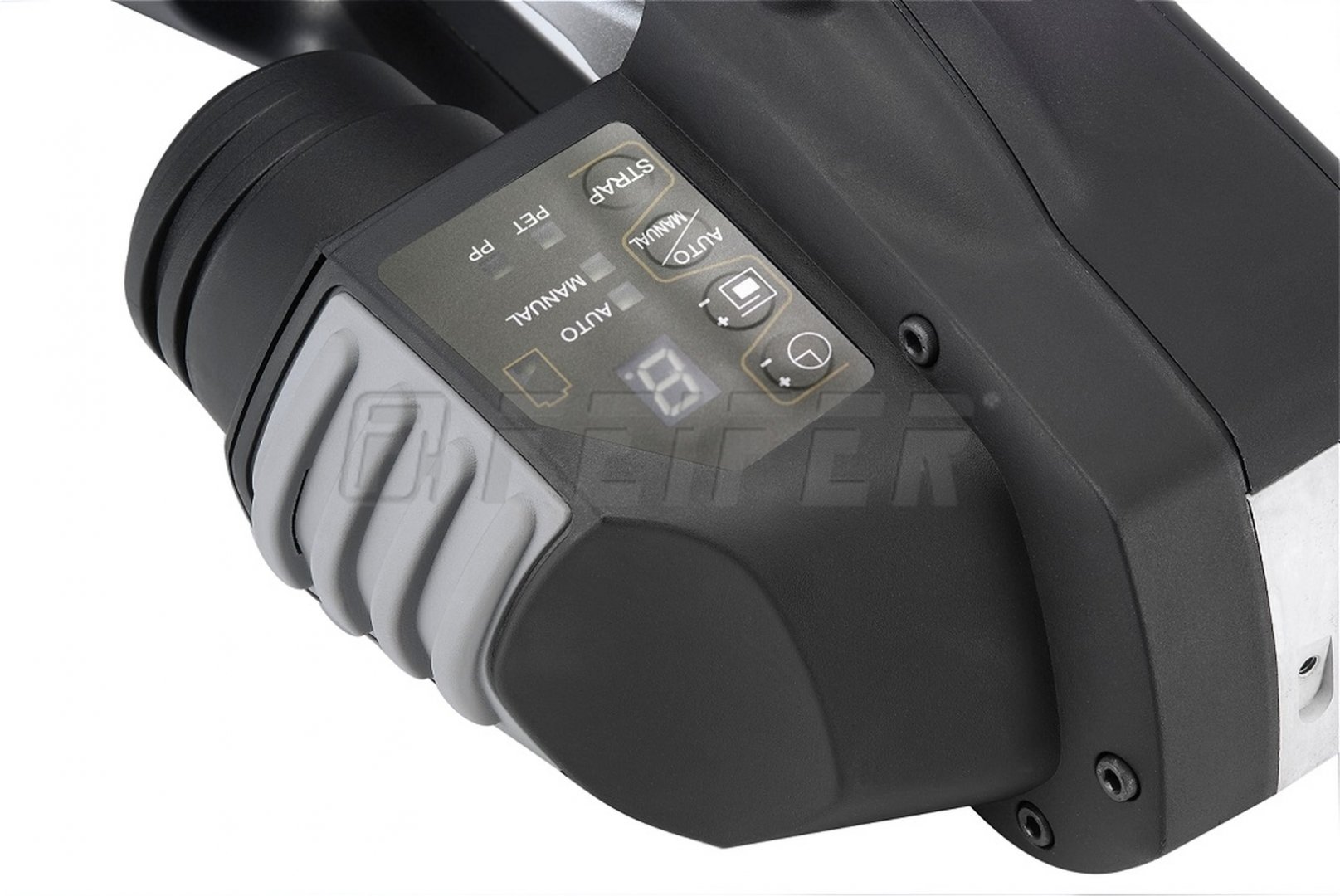

Productivity is improved by one-hand operating strapping tool. The new unique brushless motor assures longer battery and motor service life. Operation touch panel with digital light is served for intuitive setting according to required conditions.
Differences between ZP96 (original) a ZP97 (new)
- more stable tension and tightening
- more efficient, with charge level indicator device
- number of strapping cycles increased up to 40%, battery power consumption decreased and battery service life is prolonged
- lower battery weight
Technical parameters
Modification
Accessories
Packing material
Spare part
Inquiry
Technical parameters
| ordering code | 700 012524 |
| strap - material |
PP PET |
| supply voltage | aku 18V |
| strap width | 15 - 19 mm |
| strap thickness | 0,75 - 1,27 (PP), 0,65 - 1,27 (PET) mm |
| weight | 2,84 + 0,60 (baterie) kg |
| sealing method | sealless |
| tightening power | 4000 N |
| qty of strapping cycles with 1 charge | 440 (PET 16x1,0) |
| battery charge time | 30 min. hour |
| Type of product |
|
Standard modifications
Action
ZAPAK ZP90 - battery strapping tool for PP, PET
- strap width 9 - 13 mm
- 18V Li-Ion battery
- more efficient brushless motor
- higher battery capacity
Action
ZAPAK ZP93 - battery strapping tool for PP, PET
- strap width 9 - 16 mm
- 18V Li-Ion battery
- more efficient brushless motor
- higher battery capacity
Recommended accessories
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
OP-6 - decoiler for PP straps
- inner diameter - 400 mm
- spring brake of strap
- extra robust construction
- for high frequency jobs
OP-6E - decoiler for PP straps
- inner diameter - 200 and 400 mm
- simple screw brake on axis
- for low frequency jobs
OP-6EB - decoiler for PP straps
- inner diameter - 200 and 400 mm
- spring brake of strap
- for low frequency jobs
OP-10EB - decoiler for PP straps
- inner diameter - 200 mm
- spring brake of strap
- for low frequency jobs
Strap lance
- max. strap width - 35 mm
- easy strap threading under pallet
- for plastic and textile strap
OP-8 - decoiler for PP, PET, oscillated steel straps
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
Binding and packaging materials
PP strap 15 x 0,80 mm, 400/150 - 1500 m, 2700 N, black
- width 15 mm, thickness 0,80 mm
- black color
- strength 2700 N
- tube 400 mm, roll 1500 m
PP strap 19 x 0,90 mm, 200/190 - 1200 m, 4050 N, black
- width 19 mm, thickness 0,90 mm
- black color
- strength 4050 N
- tube 200 mm, roll 1200 m
PET strap 15,0 x 0,80 mm, 406/150 mm - 1400 m, 4550 N, EMBOSS 20%
- width 15 mm, thickness 0,80 mm
- green color
- strength 4550 N
- tube 406 mm, roll 1400 m
PET strap 16 x 1,00 mm, 406/145 - 1200 m, 5700 N, green, EMBOSS 15%
- width 16 mm, thickness 1,00 mm
- green color
- strength 5700 N
- tube 406 mm, roll 1200 m
PET strap 19 x 1,00 mm, 406/145 - 850 m, 8000 N, green, EMBOSS 20%
- width 19 mm, thickness 1,00 mm
- green color
- strength 8000 N
- tube 406 mm, roll 850 m
