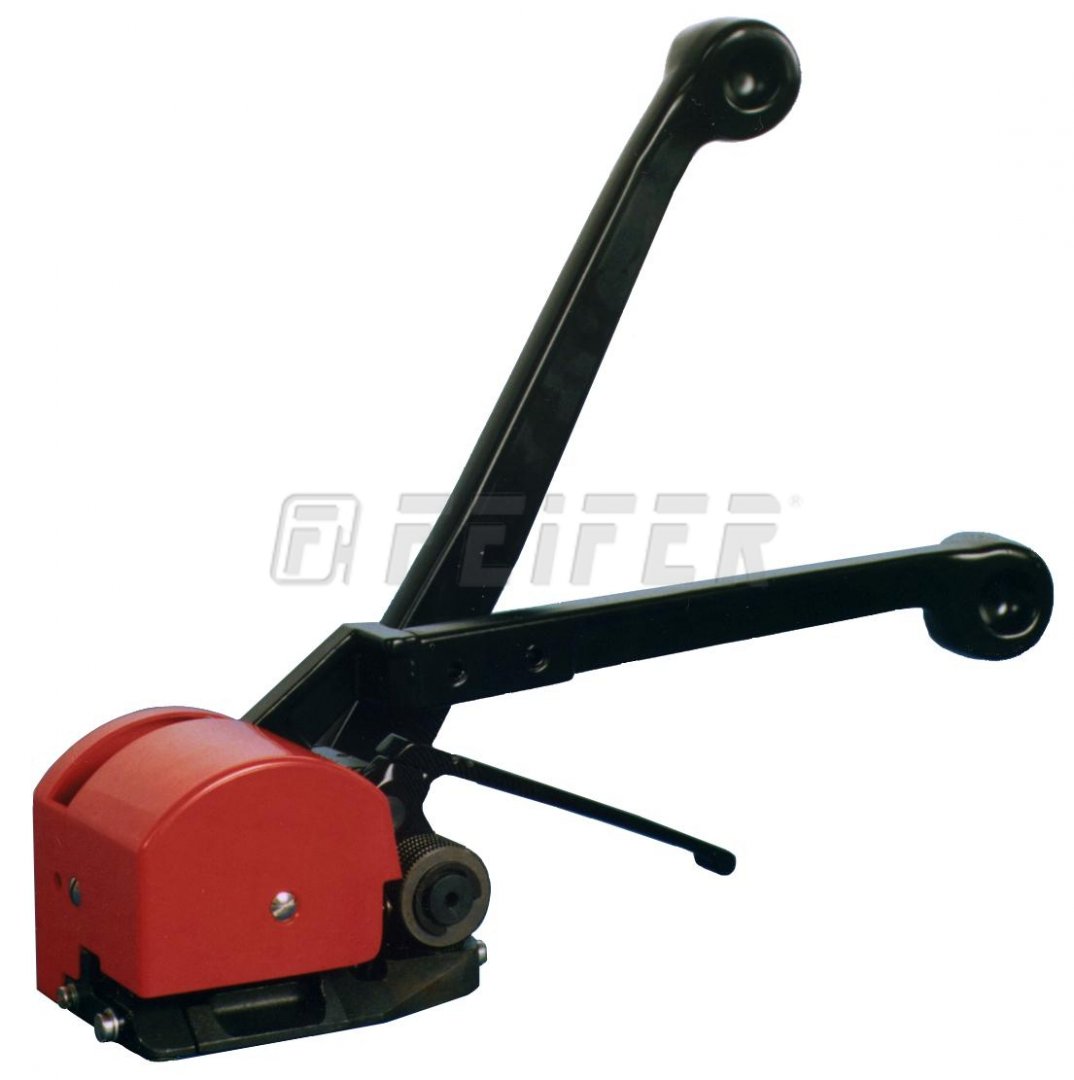

BO-6F - sealless steel strapping tool
The strapping tool BO-6F is advanced type based on BO-51. It is 0,75kg lighter, operation is easier and better ergonomic shape of levers enables to work easier also in vertical position. Improved body design increases its lifetime. New tightening mechanism of strap reaches higher tightening power up to 5 000 N. Other technical parameters are similar to BO-51.
- ideal for vertical strapping
- robust tensioning system
- higher durability thanks to modern design
- higher tightening power up to 5 000 N
Technical parameters
Modification
Accessories
Packing material
Spare part
Product videos
Inquiry
Technical parameters
| ordering code | 600 000028 |
| sealing method | sealless |
| strap width | 13 - 20 mm |
| strap thickness | 0,4 - 0,63 mm |
| weight | 3,80 kg |
| tightening power | 5000 N |
Recommended accessories
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
OP-5 - decoiler for ribbon steel straps
- strap width 13-20 mm
- spring brake of strap
- inner diameter 260-310 mm
- robust construction
OP-7 - decoiler for oscillated steel straps
- strap width - 13 - 20 mm
- spring brake of strap
- for oscillated winding
- robust construction
OP-26 decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- unsuitable for low quality straps
OP-26E decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- for low frequency jobs
OP-21 - decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 610 mm
- unsuitable for low quality straps
OP-8 - decoiler for PP, PET, oscillated steel straps
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
Binding and packaging materials
13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
- width 13 mm, thickness 0,5 mm
- strength 4485 N
- roll weight approx. 17 kgs
- inside diam. 300 mm
16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
- width 16 mm, thickness 0,5 mm
- strength 5520 N
- roll weight approx. 20 kgs
- inside diam. 300 mm
13 x 0,5 mm - steel strap (zinc coated, ribbon)
- width 13 mm, thickness 0,5 mm
- strength 4388 N
- roll weight approx. 20 kgs
- inside diam. 286 mm
16 x 0,5 mm - steel strap (zinc coated, ribbon)
- width 16 mm, thickness 0,5 mm
- strength 5400 N
- roll weight approx. 25 kgs
- inside diam. 286 mm
16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)
- width 16 mm, thickness 0,4 mm
- strenght 5120 N
- roll weight approx. 24 kgs
- inside diam. 406 mm
19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
- width 19 mm, thickness 0,5 mm
- strength 7000 N
- roll weight approx. 27 kgs
- inside diam. 300 mm
19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding
- width 19 mm, thickness 0,6 mm
- strength 9120 N
- roll weight approx. 50 kgs
- inside diam. 406 (±5) mm
