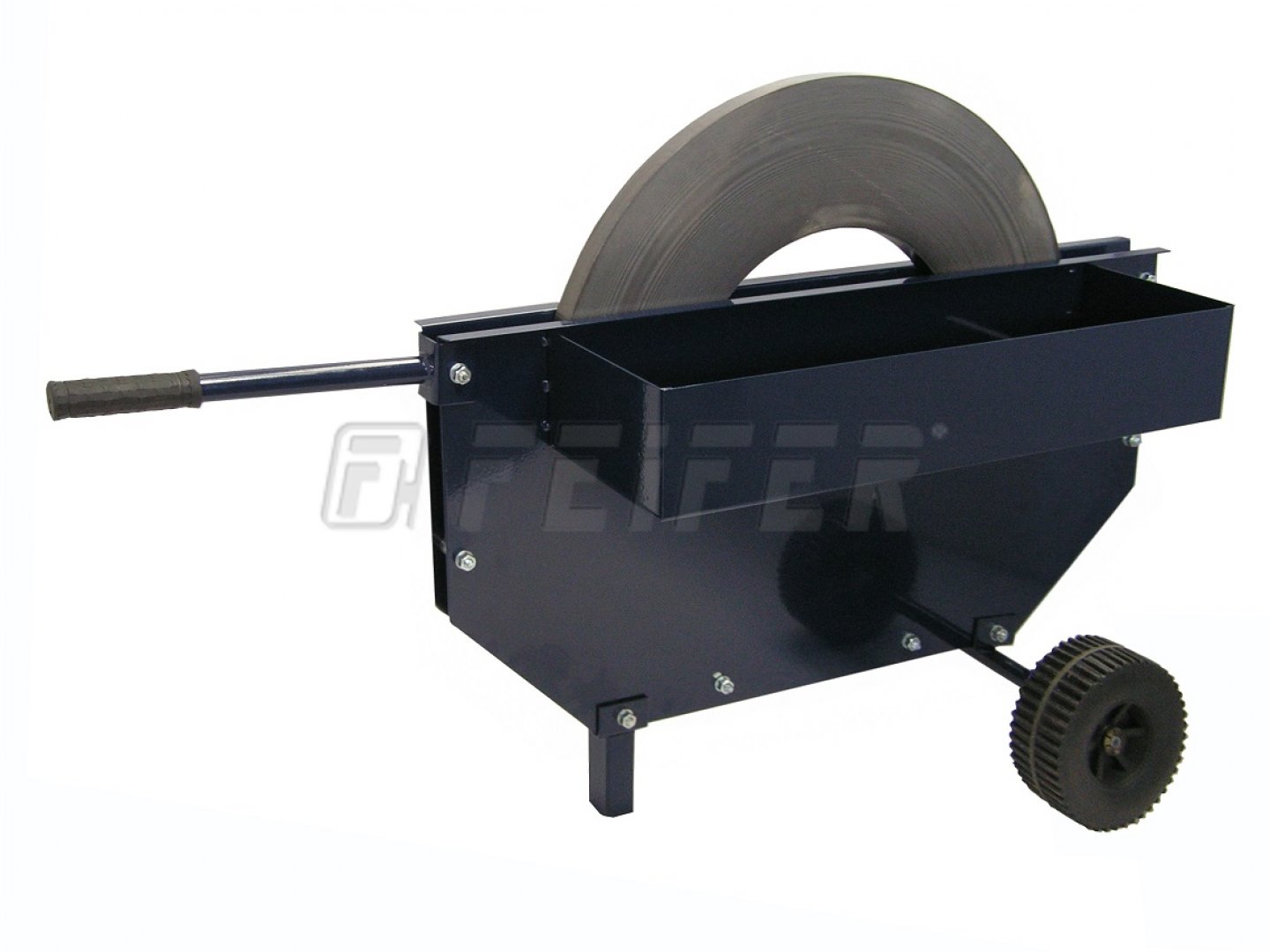

OP-26E decoiler for ribbon steel straps
Type OP-26E is intended for unwinding steel strap of the width of 13-20 mm. Inner diameter of coil is not limited, max. outer diameter of coil is 700 mm. This type is not suitable for steel strap of low quality (strength <690MPa) and is intended for low frequency jobs.
Technical parameters
Modification
Accessories
Packing material
Inquiry
Technical parameters
| ordering code | 600 000573 |
| strap - material |
steel |
| strap width | 13 - 20 mm |
| outer diameter of roll | 700 mm |
| inner diameter of roll | bez omezení |
| brake | no |
| weight | 10,5 kg |
Standard modifications
OP-26 decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- unsuitable for low quality straps
OP-26W decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 790 mm
- unsuitable for low quality straps
Recommended accessories
BO-51 - sealless steel strapping tool
- strap width - 13 - 20 mm
- sealing method - sealless
- very popular type
- attractive price
- tensioning power - 4000 N
BO-6F - sealless steel strapping tool
- strap width - 13 - 20 mm
- sealing method - sealless
- perfect for vertical strapping
- robust tightening system
- tensioning power - 5000 N
BO-7 SWING - sealless steel strapping tool
- strap width - 13 - 20 mm
- sealing method - sealless
- patented system of punching
- robust tightening system
- tensioning power - 5000 N
BO-7PN - pneumatic sealless steel strapping tool
- strap width - 13 - 20 mm
- sealing method - sealless
- pneumatic tightening
- patented system of punching
NP-11 - tensioner for steel straps
- strap width 13 - 19 mm
- used together with a sealer UK
- for heavy irregular objects
- max. strength of joint 5000 N
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
UK-1/13 - strapping sealer for steel seals
- strap width - 13 mm
- sealing method - seal type FP
- for heavy irregular objects using with suitable tensioner
UK-1/16 - steel strapping sealer for steel seals 16 mm
- strap width - 16 mm
- sealing method - seal type FP
- for heavy irregular objects
- using with suitable tensioner
UK-1/19 - strapping sealer for steel seals
- strap width - 19 mm
- sealing method - seal type FP
- for heavy irregular objects
- using with suitable tensioner
UK-2/19 - strapping sealer for steel seals
- strap width - 19 mm
- sealing method - seal type F
- for heavy irregular objects
- using with suitable tensioner
Binding and packaging materials
13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
- width 13 mm, thickness 0,5 mm
- strength 4485 N
- roll weight approx. 17 kgs
- inside diam. 300 mm
13 x 0,5 mm - steel strap (zinc coated, ribbon)
- width 13 mm, thickness 0,5 mm
- strength 4388 N
- roll weight approx. 20 kgs
- inside diam. 286 mm
16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
- width 16 mm, thickness 0,5 mm
- strength 5520 N
- roll weight approx. 20 kgs
- inside diam. 300 mm
16 x 0,5 mm - steel strap (zinc coated, ribbon)
- width 16 mm, thickness 0,5 mm
- strength 5400 N
- roll weight approx. 25 kgs
- inside diam. 286 mm
16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)
- width 16 mm, thickness 0,4 mm
- strenght 5120 N
- roll weight approx. 24 kgs
- inside diam. 406 mm
19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
- width 19 mm, thickness 0,5 mm
- strength 7000 N
- roll weight approx. 27 kgs
- inside diam. 300 mm
