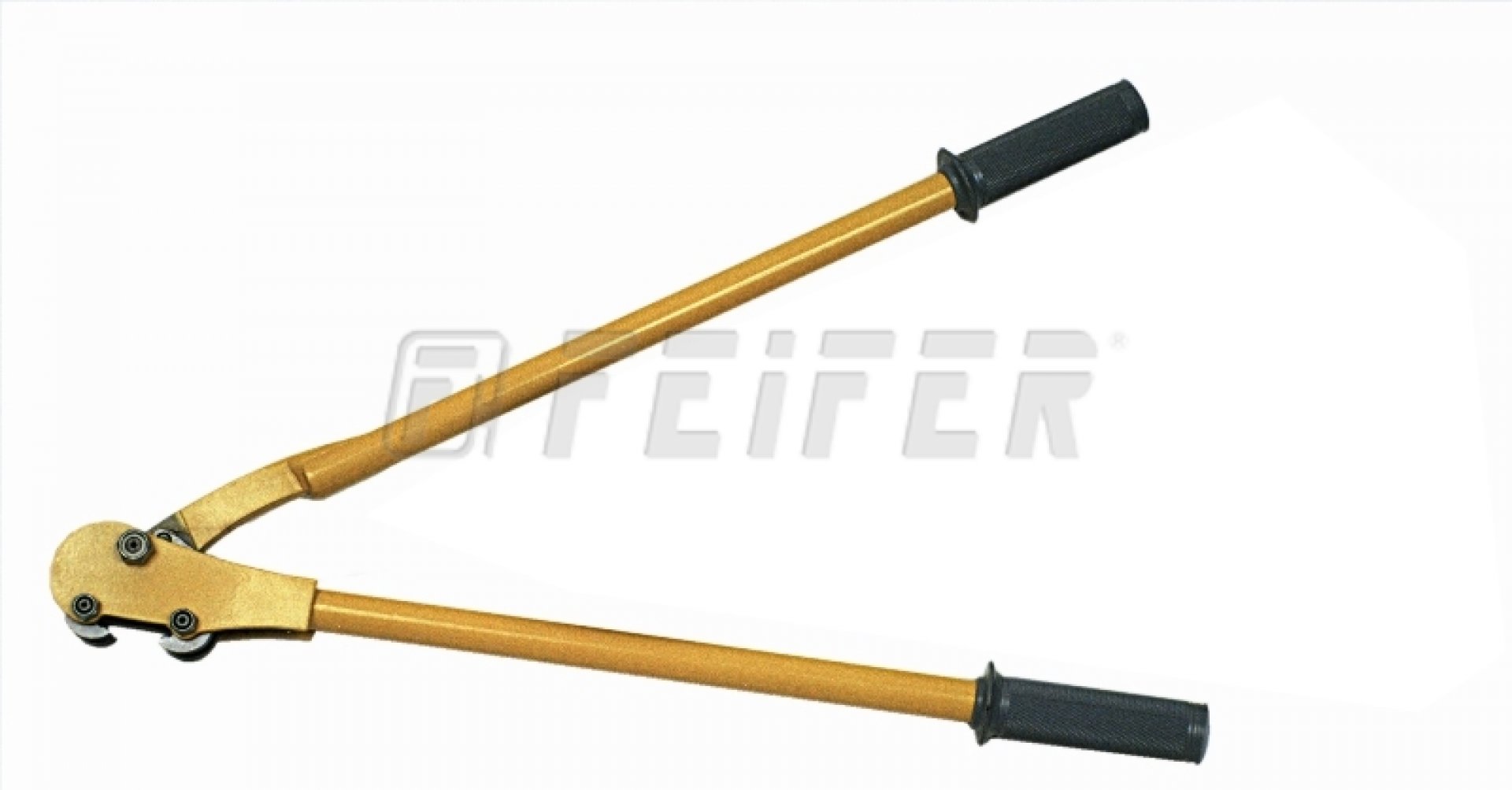

UK-2/19 - strapping sealer for steel seals
This sealer UK-2/19 is intended for strapping extremely heavy objects e.g. ingots, wood bundles, etc. and is especially used for strapping round or irregularly shaped objects. This sealer is used only together with a suitable tensioner (e.g. type NP-21). Steel strap and seal type F are used for strapping. This model is intended for strapping with strap and seal of the width of 19 mm. In case of a double notching the seal strength of the joint can reach up to 11 000 N.
Technical parameters
Modification
Accessories
Packing material
Spare part
Inquiry
Technical parameters
| ordering code | 600 000151 |
| strap - material |
steel |
| strap width | 19 mm |
| strap thickness | 0,6 - 0,8 mm |
| weight | 2,6 kg |
| seal - type | F-19 |
Standard modifications
UK-2/32 - strapping sealer for steel seals
- strap width - 32 mm
- sealing method - seal type F
- for heavy irregular objects
- using with suitable tensioner
Recommended accessories
NP-11 - tensioner for steel straps
- strap width 13 - 19 mm
- used together with a sealer UK
- for heavy irregular objects
- max. strength of joint 5000 N
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
OP-5 - decoiler for ribbon steel straps
- strap width 13-20 mm
- spring brake of strap
- inner diameter 260-310 mm
- robust construction
OP-7 - decoiler for oscillated steel straps
- strap width - 13 - 20 mm
- spring brake of strap
- for oscillated winding
- robust construction
OP-21 - decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 610 mm
- unsuitable for low quality straps
OP-26 decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- unsuitable for low quality straps
OP-26E decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- for low frequency jobs
OP-26W decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 790 mm
- unsuitable for low quality straps
FPZL-32 - pneumatic tensioner for steel straps
- strap width 19 - 32 mm
- using with sealer FZ or UK
- for heavy irregular objects
- tightening power up to 9800N
NP-21PN - pneumatic tensioner for steel straps
- strap width - 19 - 32 mm
- using with sealer FZ or UK
- for heavy irregular objects
- tightening power up to 9000N
OP-8 - decoiler for PP, PET, oscillated steel straps
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
Binding and packaging materials
19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
- width 19 mm, thickness 0,5 mm
- strength 7000 N
- roll weight approx. 27 kgs
- inside diam. 300 mm
19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding
- width 19 mm, thickness 0,6 mm
- strength 9120 N
- roll weight approx. 50 kgs
- inside diam. 406 (±5) mm
19 x 0,75 mm - steel strap, painted, PRIMA, oscillated winding, 2Q
- width 19 mm, thickness 0,8 mm
- strength 12160 N
- roll weight 50 kgs
- inside diam. 406 (±5) mm
Steel seals F-19
- seal width - 19 mm
- for steel strap
- packaging - 700 pcs
