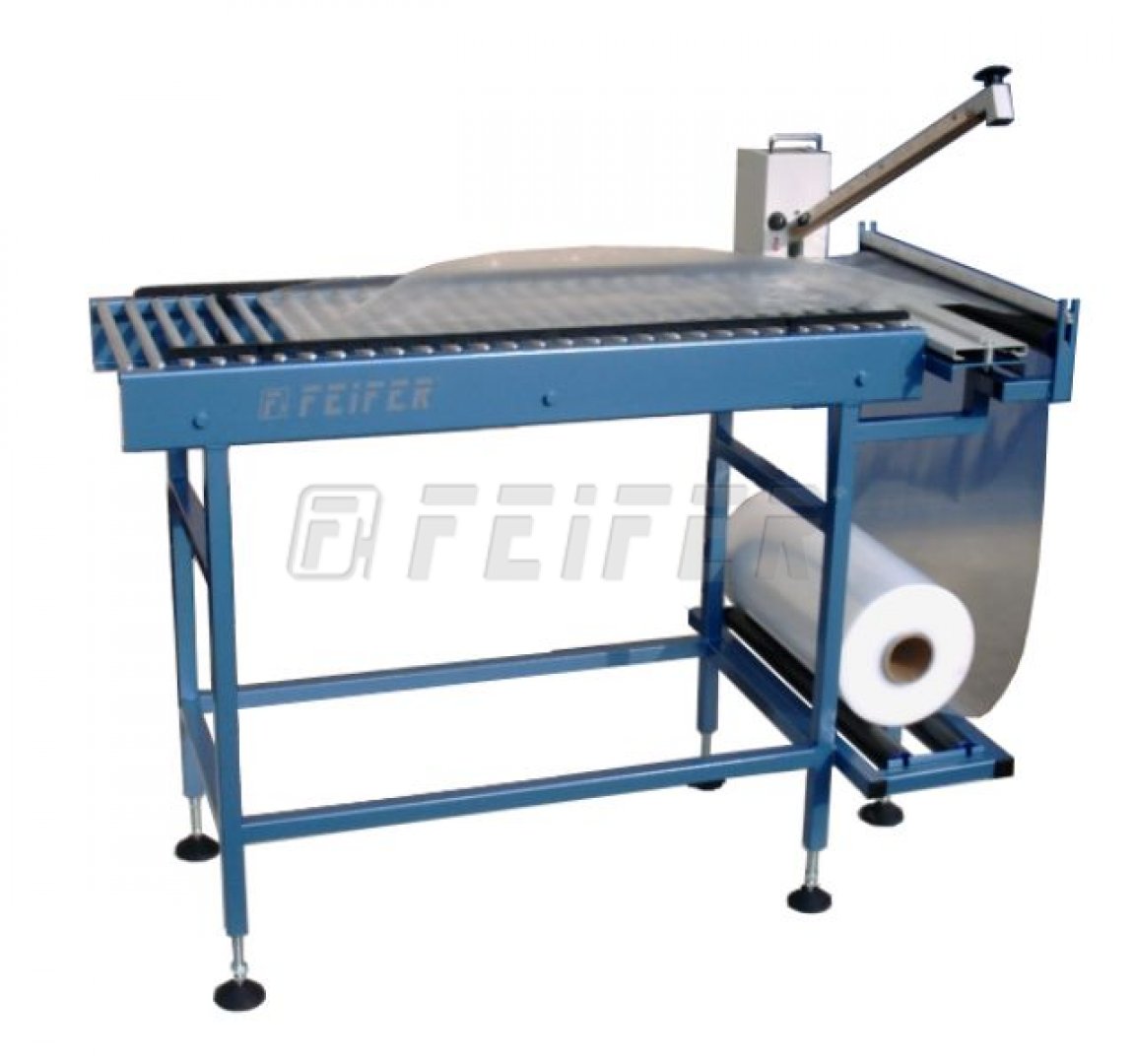

BP-800V - shrink film wrapping desk
Shrink foil wrapping desk BP-800V is intended for wrapping industrial as well as consumer goods, newspapers, textile products but also food stuff into shrink foils. It can be used with a shrink tunnel (e.g. HR-Holiterm). a cheap PE foil is usually used for wrapping. The machine is suitable for low frequency wrapping jobs (4 package/min).
Easy operation - an operator unwinds the foil from the foil decoiler and shift it on the wrapping desk. Then the operator puts the goods to be wrapped on this foil and inserts the open end of the foil under the sealing bar. By pressing the sealing bar, the foil is sealed around the wrapped objects and cut off. The redundant foil is sealed on foil which is unwound from the decoiler.
Among main advatanges of this wrapping desk belong:
- low investment and operating cost
- adjustable sealing time according to the foil thickness
- low maintenance requirements
Technical parameters
ordering code | 600 000056 |
supply voltage | 230V/50Hz |
power input | 0,6 kW |
weight | 90 kg |
machine length | 1360 mm |
machine width | 1030 mm |
material - foil |
PE LDPE |
max. film width | 800 mm |
max. packing width | 550 mm |
max. packing rate | 3-4 pack./min. |
max. film thickness | 65 µm |
working desk height | 890-990 mm |
Standard modifications
BP-600V - shrink film wrapping desk
- desk with built-in rollers
- for PE (LDPE) films - max. width 600mm
- used only with a shrink tunnel
- for low frequency jobs
Recommended accessories
HR-5023 HOLITERM - industrial shrink tunnel
- passage size - 500 x 230 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
HR-5040 HOLITERM - industrial shrink tunnel
- passage size - 500 x 400 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
HR-6823 HOLITERM - industrial shrink tunnel
- passage size - 680 x 230 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
HR-6840 HOLITERM - industrial shrink tunnel
- passage size - 680 x 400 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
Binding and packaging materials

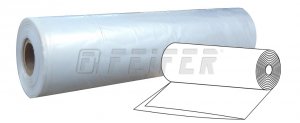

350 x 0,050 mm - PE foil, half-tube, recyclate
- width - 350 mm
- thickness - 0,050 mm
- design - half-tube/half-sleeve
- recyclate
400 x 0,030 - PE foil, half-tube
- width - 400 mm
- thickness 0,030 mm
- design - half-tube / half-sleeve
