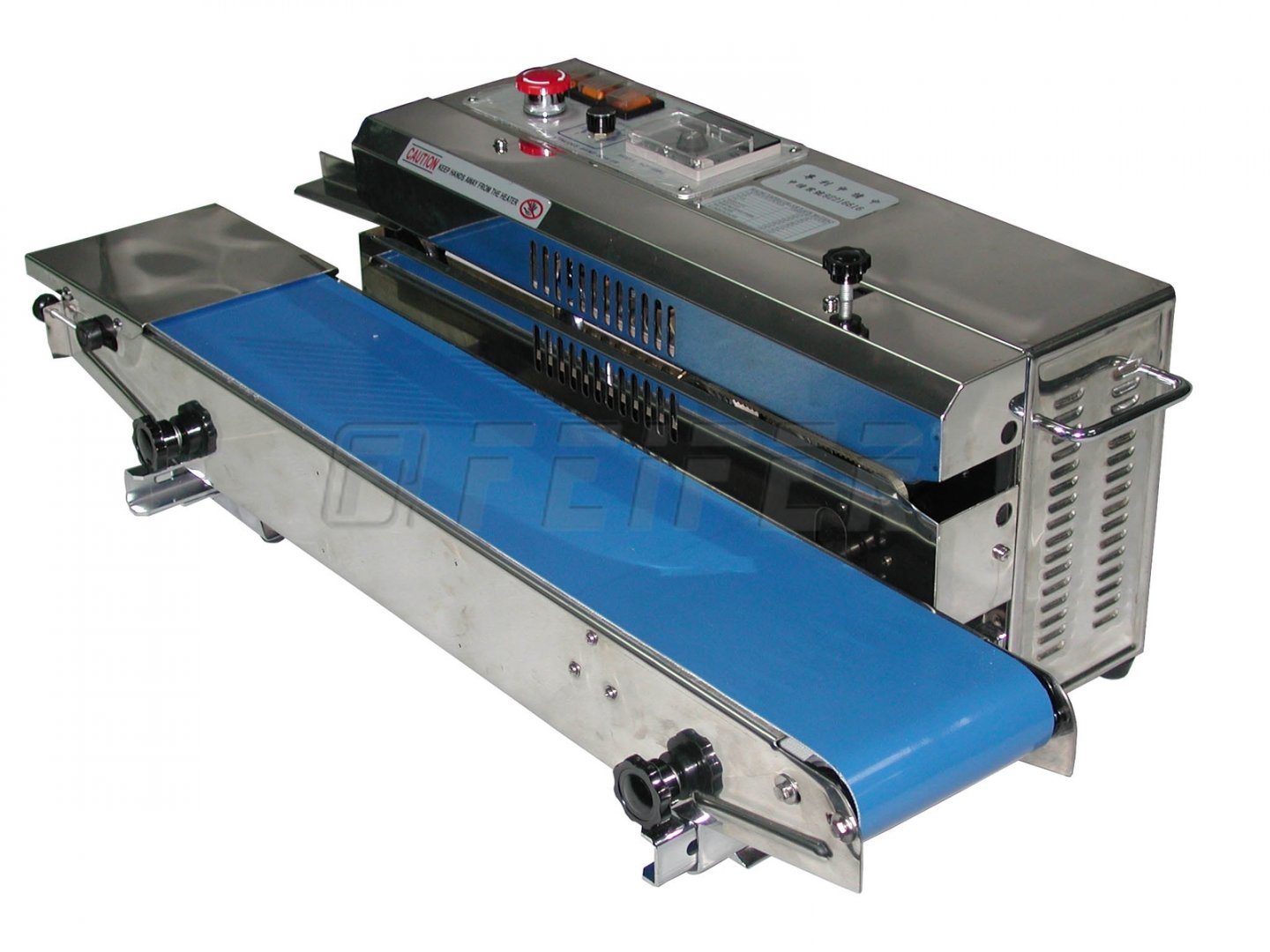

BS-871 - band sealer
Technical parameters
Modification
Inquiry
Technical parameters
| ordering code | 700 021367 |
| supply voltage | 230V/50Hz |
| power input | 0,65 kW |
| recommended material for sealing |
PE PP PS PVC paper alu with painting |
| sealing width | 10 mm |
| sealing speed adjustment | 1 - 12 m/min. |
| sealing temperature adjustment | 30 - 300 °C |
| machine length | 880 mm |
| machine width | 420 mm |
| machine height | 350 mm |
| weight | 32 kg |
| conveyor length | 850 mm |
| total track width | 160 mm |
| max. loading | 3 kg |
Standard modifications
BS-881 - band sealer
- horizontal continuous sealer
- for short and wide bags
- sealing width - 10 mm
- for high frequency jobs
BS-882 - band sealer
- vertical continuous sealer
- for powdery or liquid materials
- sealing width - 10 mm
- for high frequency jobs
BS-882 II. XXL - band sealer
- vertical continuous sealer
- for powdery or liquid materials
- sealing width 10 mm
- max. conveyor‘s loading capacity up to 25 kg
BS-881 XXL - band sealer
- horizontal continuous sealer
- for powdery or liquid materials
- sealing width 10 mm
- max. conveyor‘s loading capacity up to 25 kg
BS-872 - band sealer
- vertical continuous sealer
- for powdery or liquid materials
- sealing width - 10 mm
- for high frequency jobs
