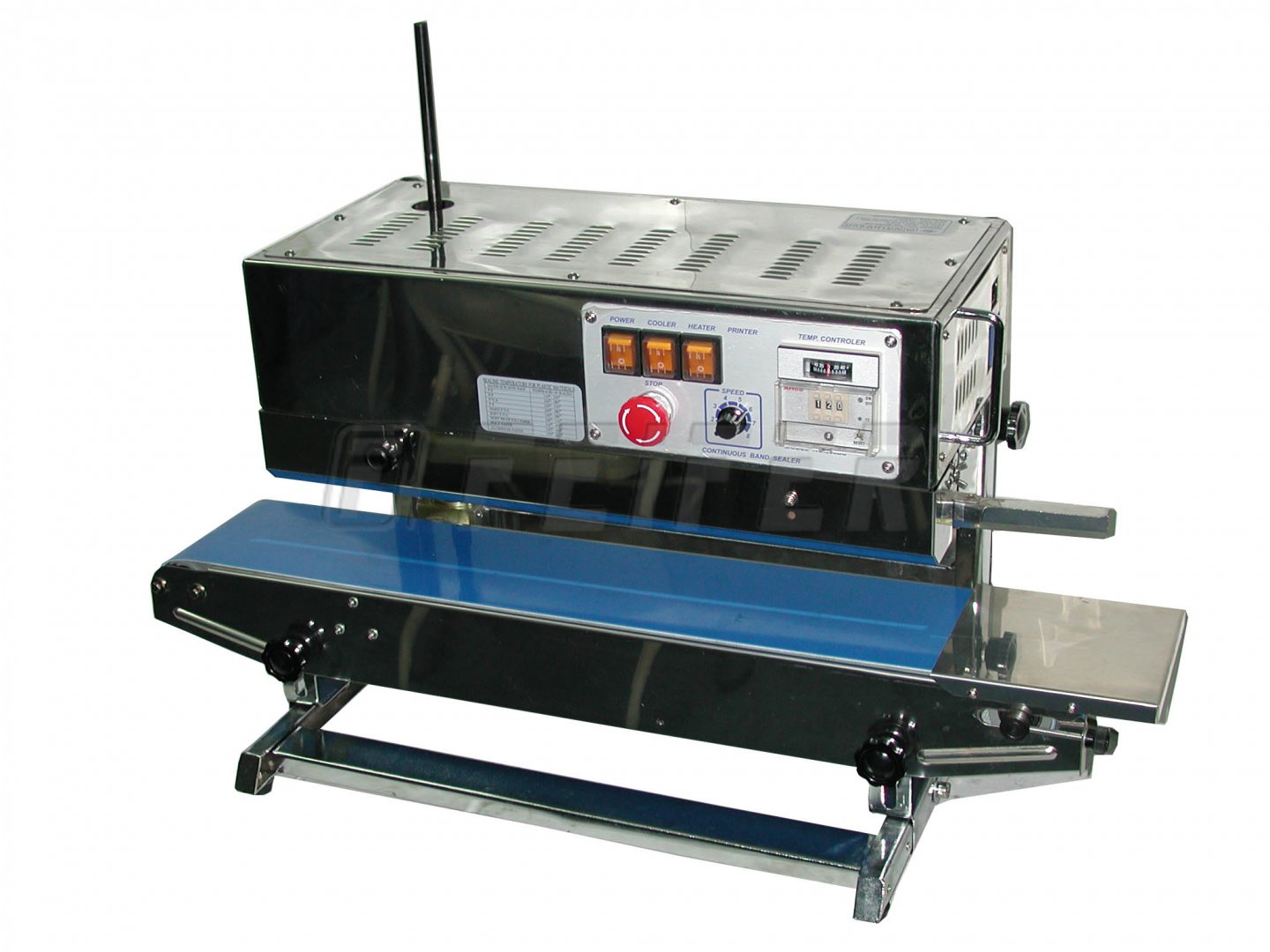

BS-882 - band sealer
This type of sealer BS-882 is suitable for sealing powdery or liquid materials. Max. wrapping height is adjustable up to 300mm. The sealer is in standard equipped with electronic adjustment of sealing speed and sealing temperature, fluent adjustment of conveyor speed, adjustable conveyor height and cooling fan. The device has stainless covering. On customer´s demand it is possible to equip the sealer with a printing device or a stand.
Technical parameters
Modification
Product videos
Inquiry
Technical parameters
| ordering code | 700 008280 |
| supply voltage | 230V/50Hz |
| power input | 0,75 kW |
| recommended material for sealing |
PE PP PS PVC paper alu with painting |
| sealing width | 10 mm |
| sealing speed adjustment | 1 - 12 m/min. |
| sealing temperature adjustment | 30 - 300 °C |
| machine length | 950 mm |
| machine width | 400 mm |
| machine height | 640 mm |
| weight | 57 kg |
| conveyor length | 950 mm |
| total track width | 180 mm |
| max. loading | 3 kg |
Standard modifications
BS-881 - band sealer
- horizontal continuous sealer
- for short and wide bags
- sealing width - 10 mm
- for high frequency jobs
BS-871 - band sealer
- horizontal continuous sealer
- for short and wide bags
- sealing width - 10 mm
- for high frequency jobs
BS-872 - band sealer
- vertical continuous sealer
- for powdery or liquid materials
- sealing width - 10 mm
- for high frequency jobs
BS-881 XXL - band sealer
- horizontal continuous sealer
- for powdery or liquid materials
- sealing width 10 mm
- max. conveyor‘s loading capacity up to 25 kg
