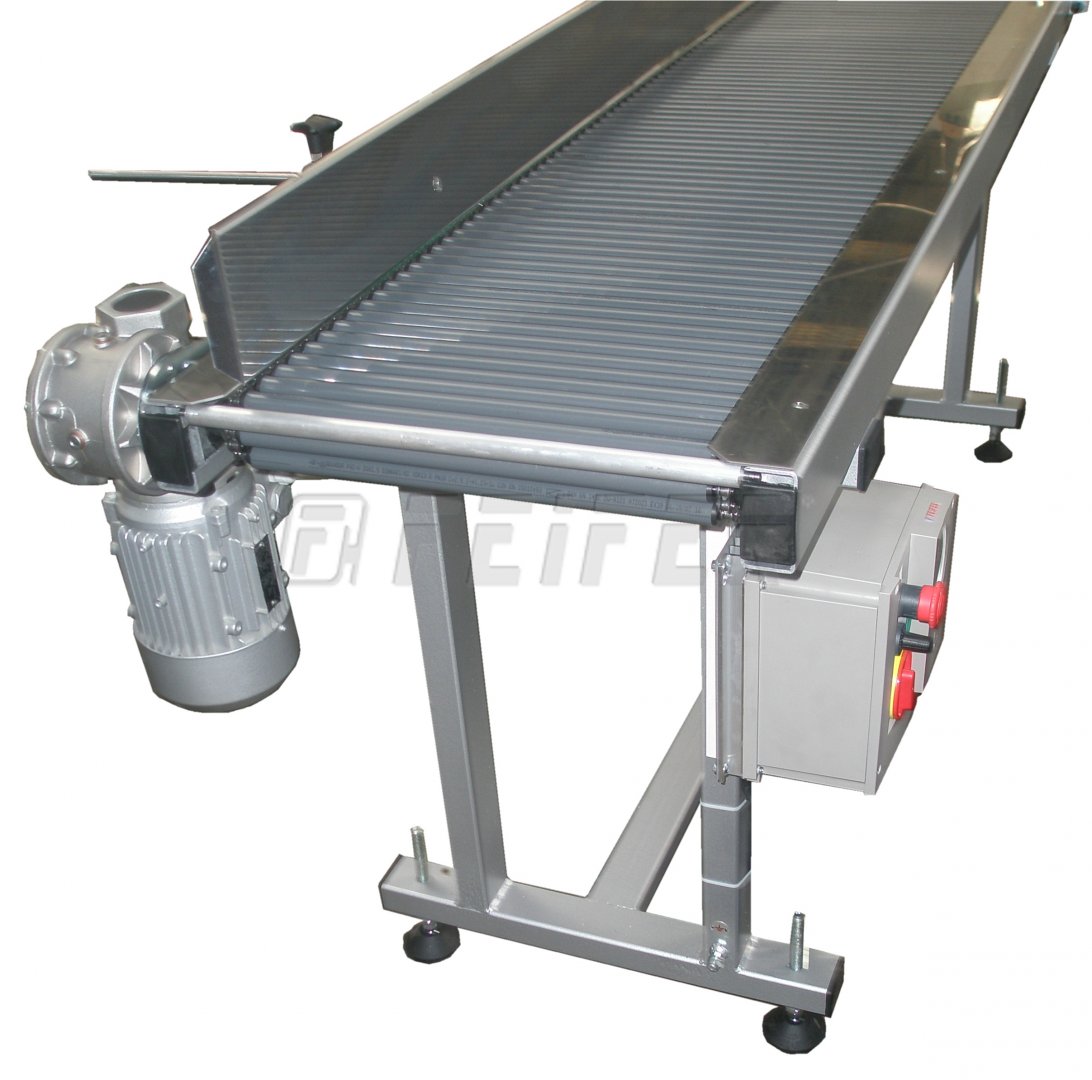

Driven roller conveyor 2000x400 mm

The roller conveyor except standard features of the motor driven conveyor with a chain drive. This type is equipped with soft slip of rollers, which enables fluent speed compensation among individual technical operations with different working speed or in clock mode. It is possible to use this conveyor for accumulation of goods in mode of vairable speed. On customer´s demand it is possible to equip the conveyor with an adjustable railing, speed range different from standard parameters or end stop of goods. It is possible to deliver this conveyor for electric power source 230V/50Hz. In standard modification the conveyor is equipped with plastic rollers - on customer´s demand the conveyor could be equipped with steel zinc rollers. It is also possible to deliver the conveyor with length and active width according to customer´s demand. Heigh of conveyor on input and output - according to customer requirements.

Technical parameters
Modification
Accessories
Spare part
Inquiry

Technical parameters

ordering code 600 000343
supply voltage 400V/50Hz
transporting speed 8 - 18 m/min.
conveyor length 2 000 mm
working conveyor width 400 mm
roller diameter 20 mm
max. loading between 2 legs 40 kg
weight cca 140 kg
dimension (l x w x h) 2090 x 710 x 880 mm

Standard modifications

Driven roller conveyor 5000x400 mm

Driven roller conveyor 5000x400 mm
  • motor driven with soft slip of rollers
  • track width - 400 mm
  • conveyor length - 5 m
  • standardly with plastic rollers

Recommended accessories

NP-11 - tensioner for steel straps

NP-11 - tensioner for steel straps
  • strap width 13 - 19 mm
  • used together with a sealer UK
  • for heavy irregular objects
  • max. strength of joint 5000 N

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

OP-5 - decoiler for ribbon steel straps

OP-5 - decoiler for ribbon steel straps
  • strap width 13-20 mm
  • spring brake of strap
  • inner diameter 260-310 mm
  • robust construction

OP-7 - decoiler for oscillated steel straps

OP-7 - decoiler for oscillated steel straps
  • strap width - 13 - 20 mm
  • spring brake of strap
  • for oscillated winding
  • robust construction
