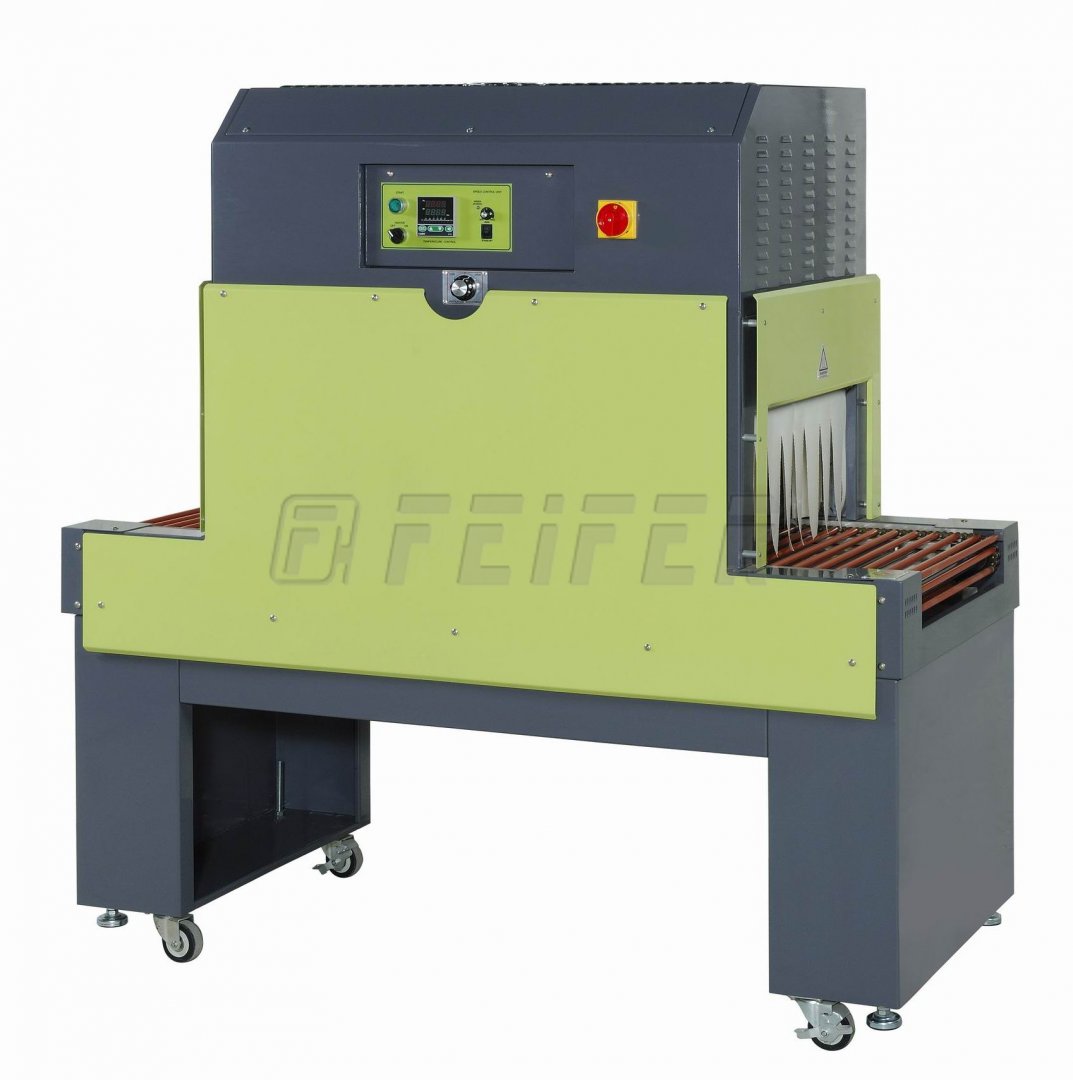

EKT-525 shrink tunnel
Professional shrink tunnel EKT-525 is intended for shrinking foil around wrapped objects. Usually it is used together with wrapping machines but it is possible to use it separately.This tunnel is fitted with ECO BLOW technology enabling more effective hot air circulation instide a chamber that reduces energy consumption with no shrink performance loss.
Among main advantages of this tunnel belong:
- hot air speed regulation
- fluent conveyor speed adjusting
- soft start, digital temperature adjusting in a chamber
- mobility – tunnel has wheels
- excelent value for money
Designed for medium frequency wrapping jobs.
Technical parameters
Modification
Inquiry
Technical parameters
| ordering code | 700 010889 |
| supply voltage | 400V/50Hz |
| power input | 9,0 kW |
| average power consumption | 5 kW/hour |
| material - foil |
PVC POF LDPE |
| max. film thickness | 50 µm |
| max. packing height | 250 mm |
| max. packing width | 500 mm |
| total track width | 530 mm |
| transporting speed | 2 - 24 m/min. |
| conveyor height | 810 mm |
| passage height of tunnel | 270 mm |
| chamber dimensions (H x W x L) | 270 x 530 x 1000 mm |
| temperature inside the chamber | max 200 °C |
| machine length | 1590 mm |
| machine width | 790 mm |
| machine height | 1700 mm |
| weight | 305 kg |
Standard modifications
HR-5023 HOLITERM - industrial shrink tunnel
- passage size - 500 x 230 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
HR-5040 HOLITERM - industrial shrink tunnel
- passage size - 500 x 400 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
HR-6823 HOLITERM - industrial shrink tunnel
- passage size - 680 x 230 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
HR-6840 HOLITERM - industrial shrink tunnel
- passage size - 680 x 400 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
