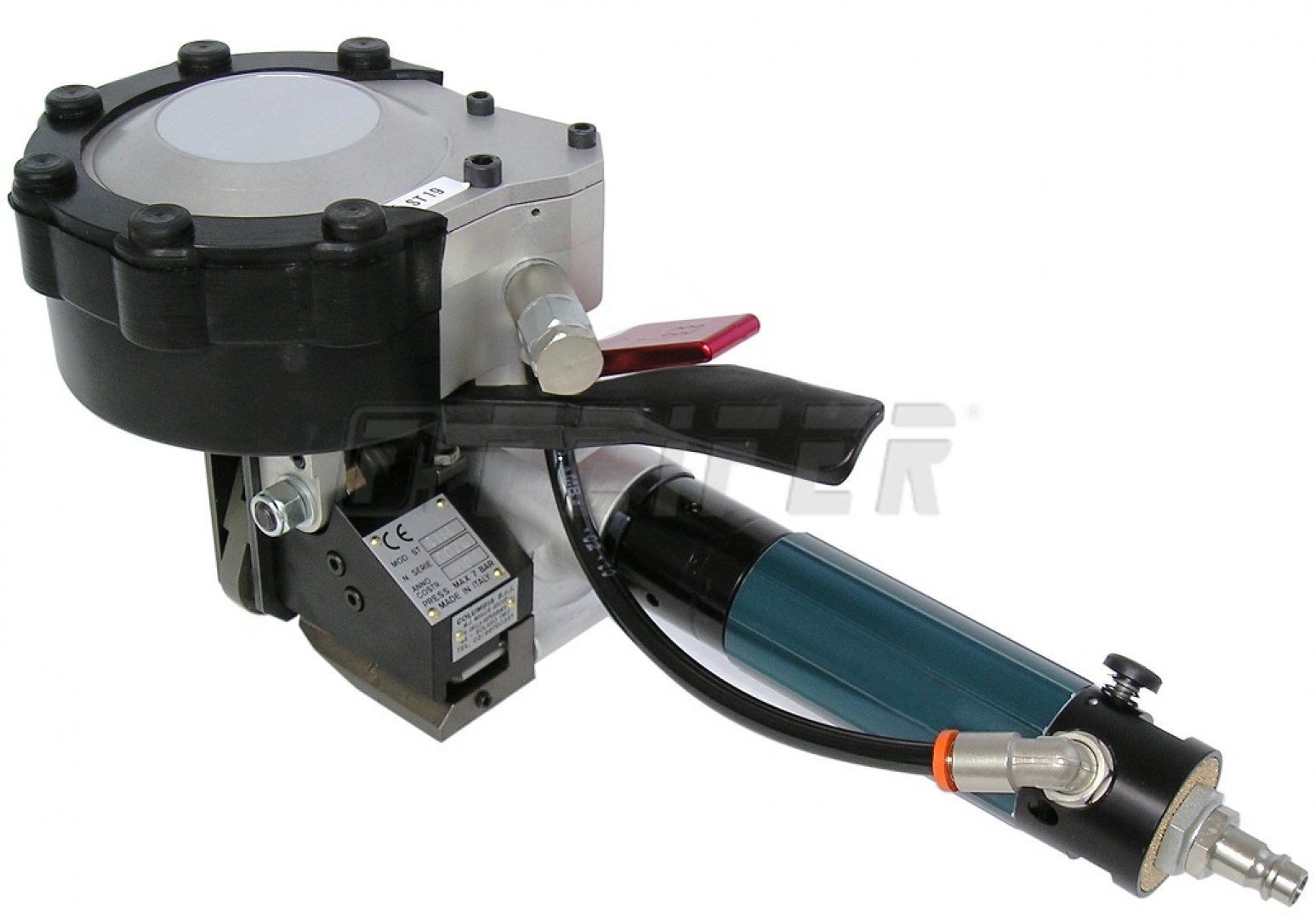

FP-13 pneumatic strapping tool
This pneumatic strapping tool FP-13 is designed for strapping round or irregularly shaped objects with steel strap. The joint is made by one notching the seal. The strapping tool works with strap and steel seal of the widht of 13, 16 or 19 mm according to the modification. This model is intended for the strap of the width of 13 mm.
Technical parameters
Modification
Accessories
Packing material
Inquiry
Technical parameters
| ordering code | 700 001113 |
| sealing method | seal type FP |
| strap - material |
steel |
| strap width | 13 mm |
| strap thickness | 0,5 - 0,8 mm |
| dimension (l x w x h) | 350 x 180 x 150 mm |
| compressed air | 6 - 7 bar |
| air consumption/cycle | 9 l/sec. |
| weight | 4,3 kg |
| tightening power | 3000 N |
Standard modifications
FP-16 pneumatic strapping tool
- strap width - 16 mm
- sealing method - seal type FP
- one notching of the seal
- for irregular or round objects
FP-19 pneumatic strapping tool
- strap width - 19 mm
- sealing method - seal type FP
- one notching of the seal
- for irregular or round objects
Recommended accessories
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting

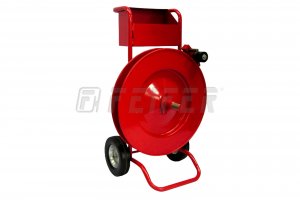

OP-5 - decoiler for ribbon steel straps
- strap width 13-20 mm
- spring brake of strap
- inner diameter 260-310 mm
- robust construction
OP-7 - decoiler for oscillated steel straps
- strap width - 13 - 20 mm
- spring brake of strap
- for oscillated winding
- robust construction
OP-21 - decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 610 mm
- unsuitable for low quality straps
OP-26 decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- unsuitable for low quality straps
OP-26E decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- for low frequency jobs
OP-26W decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 790 mm
- unsuitable for low quality straps
ZP-5 - spring balancer for loading
- max. loading - 1-5 kg
- robust metal model (alloy)
- pre-tensioning by ergonom. rose
- safety device in case of break
OP-8 - decoiler for PP, PET, oscillated steel straps
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
Binding and packaging materials

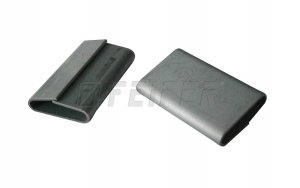

Steel seals FP-13 (13 mm)
- seal width - 13 mm
- for steel strap
- packaging - 2000 pcs
13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
- width 13 mm, thickness 0,5 mm
- strength 4485 N
- roll weight approx. 17 kgs
- inside diam. 300 mm
13 x 0,5 mm - steel strap (zinc coated, ribbon)
- width 13 mm, thickness 0,5 mm
- strength 4388 N
- roll weight approx. 20 kgs
- inside diam. 286 mm
