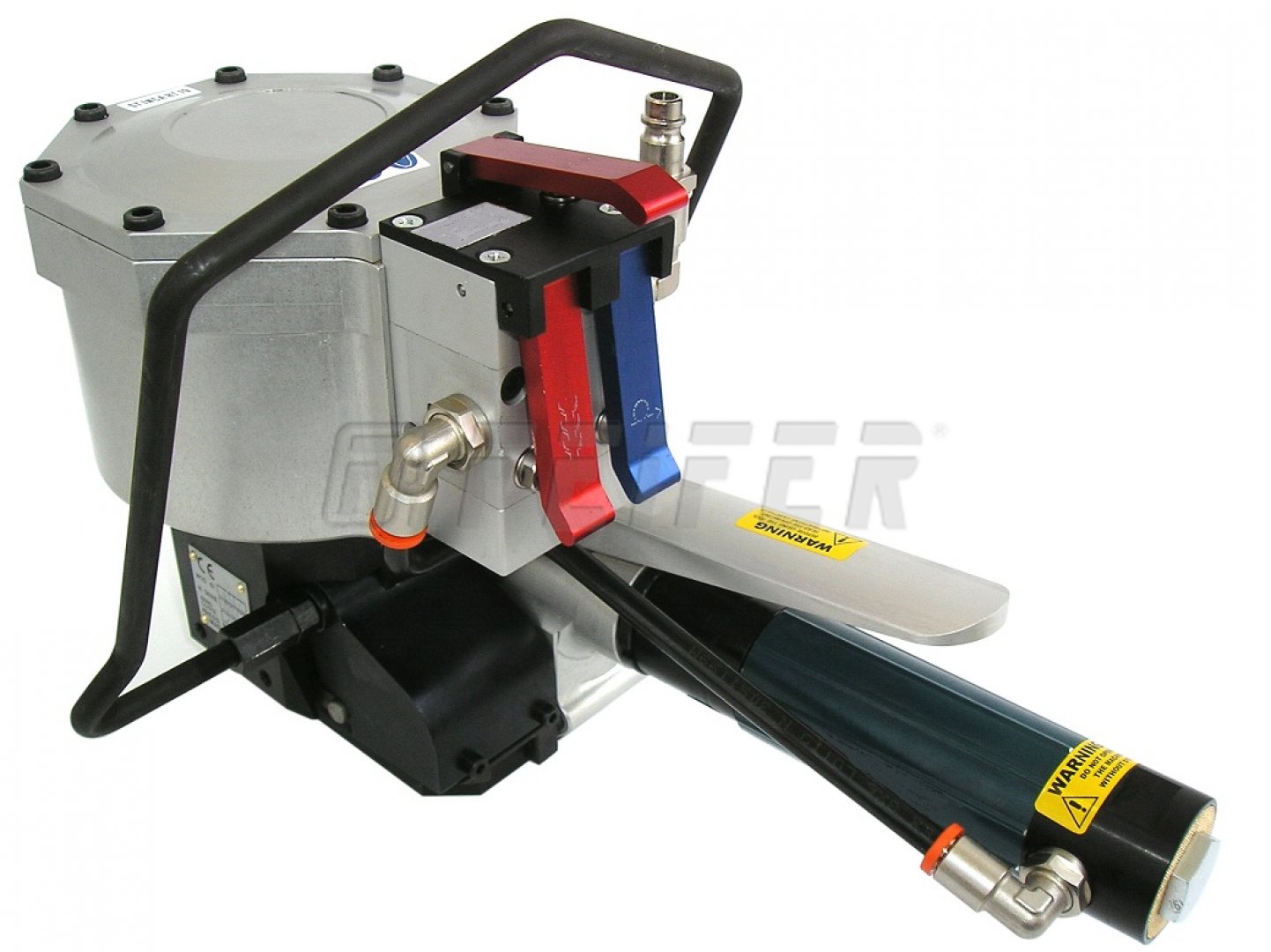

FP-16 INCA - pneumatic sealless steel strapping tool
This pneumatic sealless strapping tool FP-16 INCA for steel strap is designed for medium or high frequency strapping jobs and is intended for strapping flat objects e.g. boxes, bricks, timber products, goods stacked on pallets, etc. with steel strap without usage of steel seal. The joint is made by punching straps. FP-INCA works with the strap of the width of 13, 16 or 19 mm according to modification. Among main advantages of this strapping tool belong: long lifetime, high speed of strapping and automatic tightening and punching the strap. The strapping tool is standardly equipped with extra strong tightening wheel and suspending holder for hanging on the balancer. This model is inteded the strap of the width of 16 mm.
Technical parameters
Modification
Accessories
Packing material
Spare part
Inquiry
Technical parameters
| ordering code | 700 001110 |
| strap - material |
steel |
| sealing method | sealless |
| strap width | 16 mm |
| strap thickness | 0,5 - 0,8 mm |
| weight | 7,1 kg |
| dimension (l x w x h) | 370 x 135 x 180 mm |
| compressed air | 6 - 7 bar |
| air consumption/cycle | 9 l/sec. |
| tightening power | 3000 N |
Standard modifications
FP-13 INCA - pneumatic sealless steel strapping tool
- strap width - 13 mm
- sealing method - sealless
- pneumatic tightening/punching
- extra strong tightening wheel
FP-19 INCA pneumatic sealless strapping tool
- strap width - 19 mm
- sealing method - sealless
- pneumatic tightening/punching
- extra strong tightening wheel
Recommended accessories
ZP-9 - spring balancer for loading
- max. loading - 5 - 9 kg
- robust metal model (alloy)
- pre-tensioning by ergonom. rose
- safety device in case of break
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
OP-5 - decoiler for ribbon steel straps
- strap width 13-20 mm
- spring brake of strap
- inner diameter 260-310 mm
- robust construction
OP-7 - decoiler for oscillated steel straps
- strap width - 13 - 20 mm
- spring brake of strap
- for oscillated winding
- robust construction
OP-21 - decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 610 mm
- unsuitable for low quality straps
OP-26 decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- unsuitable for low quality straps
OP-26E decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- for low frequency jobs
OP-26W decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 790 mm
- unsuitable for low quality straps
OP-8 - decoiler for PP, PET, oscillated steel straps
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
Binding and packaging materials
16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
- width 16 mm, thickness 0,5 mm
- strength 5520 N
- roll weight approx. 20 kgs
- inside diam. 300 mm
16 x 0,5 mm - steel strap (zinc coated, ribbon)
- width 16 mm, thickness 0,5 mm
- strength 5400 N
- roll weight approx. 25 kgs
- inside diam. 286 mm
16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)
- width 16 mm, thickness 0,4 mm
- strenght 5120 N
- roll weight approx. 24 kgs
- inside diam. 406 mm
