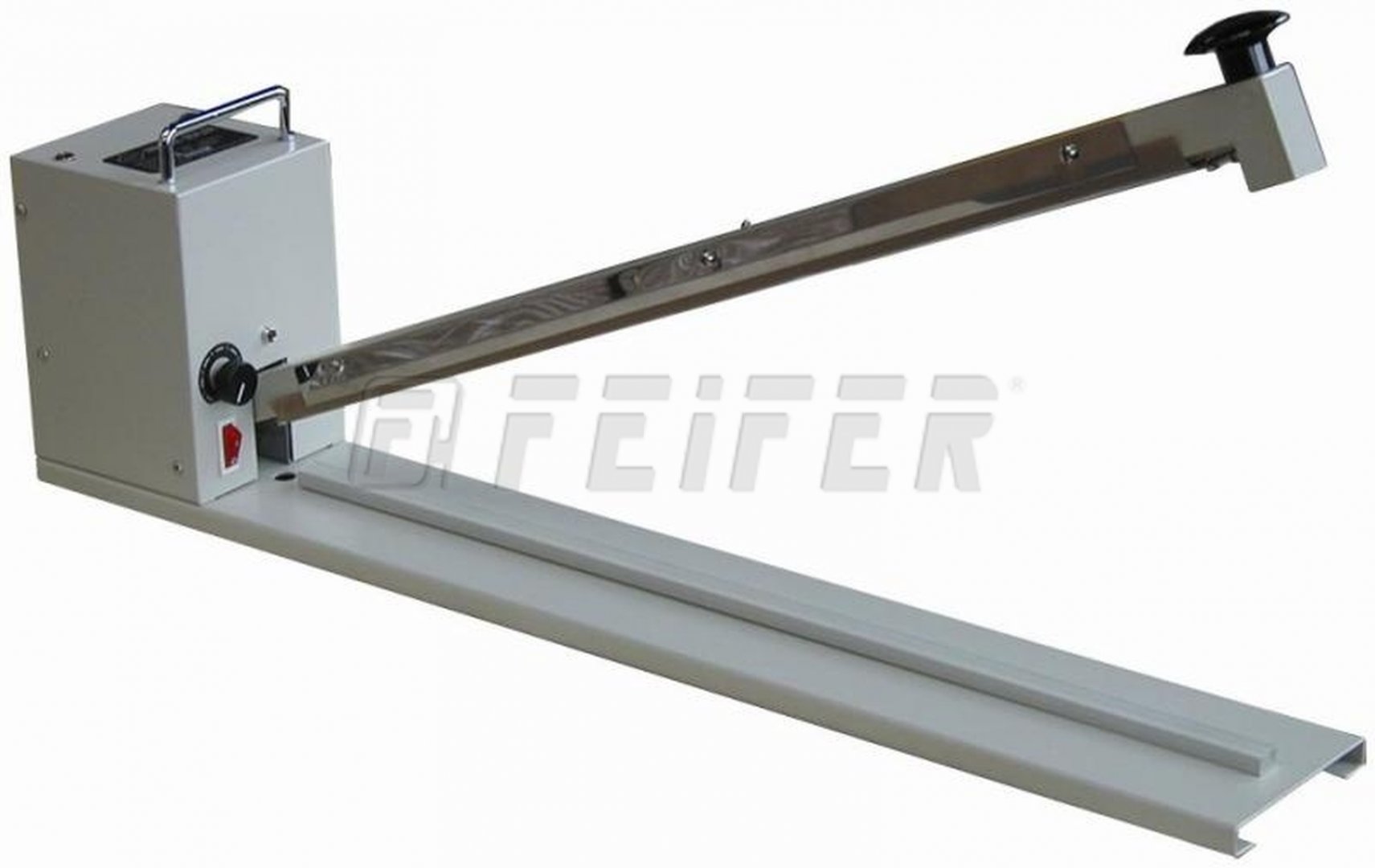

HI-800 (FS-800H) - impulse sealer
Professional table models of sealers, which are suitable for extra long sealing to 800 mm. Short distance between lower jaw and working desk - only 28 mm. These sealers are standarly equipped with thermistor (thermal protection of transformer).
These sealers are supplied in two modifications:
A) with 2 mm wide sealing element - for closing bags from tubular foil (max. foil thickness 0,15 mm)
B) with round sealing wire - for producing and closing bags from center folded (semi-tubular) foil - foil is sealed and cut at the same time (max. foil thickness 0,08 mm). It is possible to buy table foil decoiler up to width of 800 mm as an optional accessory.
In your order it is necessary to specify a demanded modification for this model - 2,5 mm wide sealing element or round sealing wire.
Technical parameters
ordering code | 700 024023 |
power input | 1 kW |
weight | 13,2 kg |
max. sealing length | 800 mm |
sealing width | 0,8/2 mm |
max. film thickness | 150/80 µm |
built-in blade | no |
Standard modifications
HI-600 (FS-600H) - impulse sealer
- sealing length 600 mm
- professional table models
- sealing blade or sealing wire
- built-in thermistor
HI-800IP - impulse sealer
- sealing length 800 mm
- built-in decoiler
- sealing wire
- built-in thermistor
HI-1000 (FS-1000H) - impulse sealer
- sealing length 1000 mm
- professional table models
- sealing blade or sealing wire
- built-in thermistor
