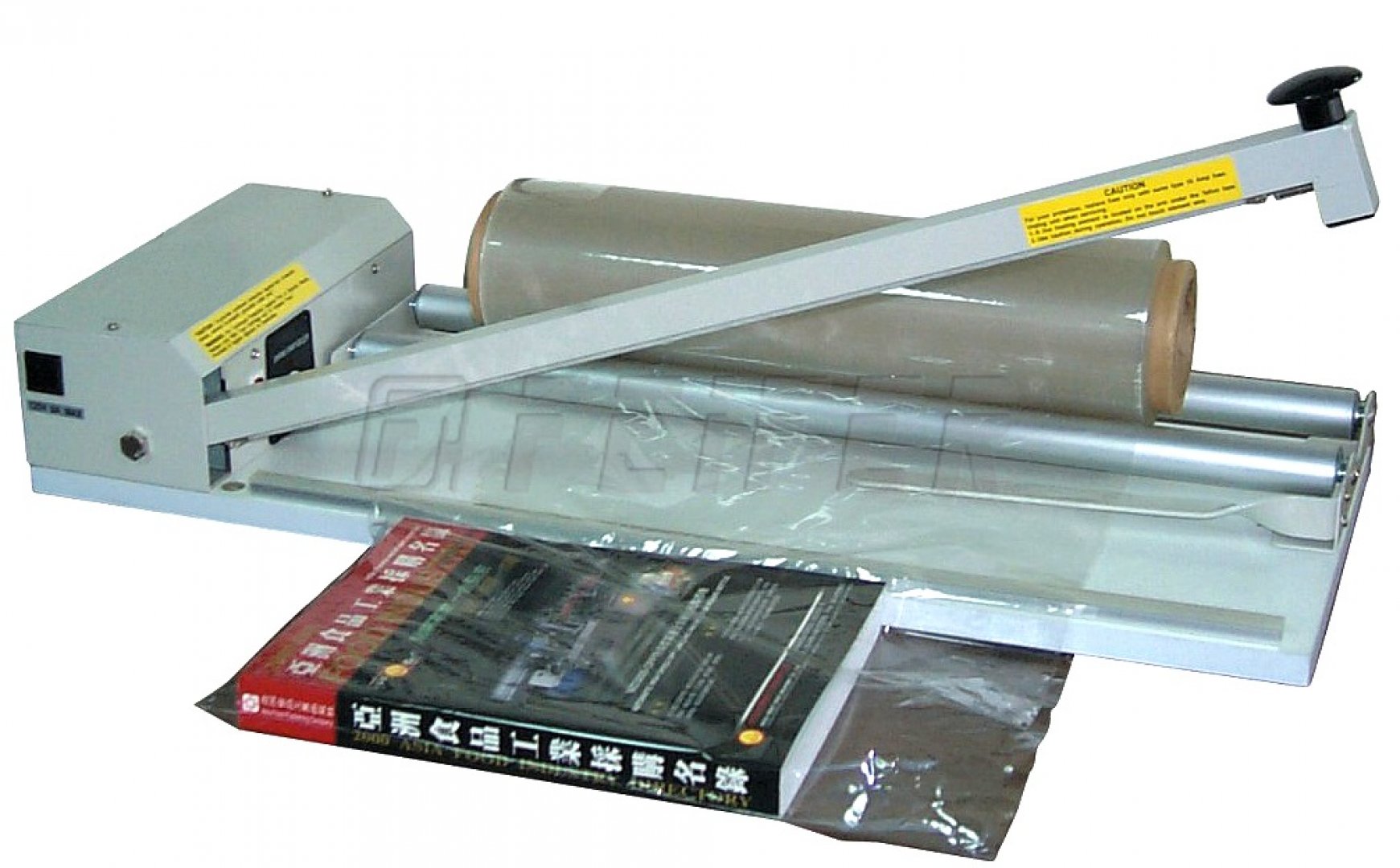

HI-800IP - impulse sealer
Professional table models of sealers, which are suitable for extra long sealing up to 800 mm (according to modification). Short distance between lower jaw and working desk - only 28 mm. These sealers are standarly equipped with thermistor (thermal protection of transformer). The model with 800 mm long seal is equipped with build-in decoiler of foil.
These sealers are supplied mostly with 2 mm wide sealing element (A) - for closing bags from tubular foil (max. foil thickness 0,15 mm)
On request is possible to supply the model with round sealing wire (B) - for producing and closing bags from center folded (semi-tubular) foil - foil is sealed and cut at the same time (max. foil thickness 0,08 mm).
In your order it is necessary to specify a demanded modification for this model - 2 mm wide sealing element or round sealing wire.
Technical parameters
ordering code | 700 001198 |
power input | 1 kW |
weight | 13,2 kg |
max. sealing length | 800 mm |
sealing width | 0,8 mm |
max. film thickness | 80 µm |
built-in blade | no |
Standard modifications
HI-600 (FS-600H) - impulse sealer

- sealing length 600 mm
- professional table models
- sealing blade or sealing wire
- built-in thermistor
HI-800 (FS-800H) - impulse sealer

- sealing length 800 mm
- professional table models
- sealing blade or sealing wire
- built-in thermistor
HI-1000 (FS-1000H) - impulse sealer

- sealing length 1000 mm
- professional table models
- sealing blade or sealing wire
- built-in thermistor
Recommended accessories
OF-600 - PE film decoiler

- for film width up to 600 mm
- fluent unwinding guide
- accessory for impulse sealers
OF-1000 - PE film decoiler

- for film width up to 1000 mm
- fluent unwinding guide
- accessory for impulse sealers
