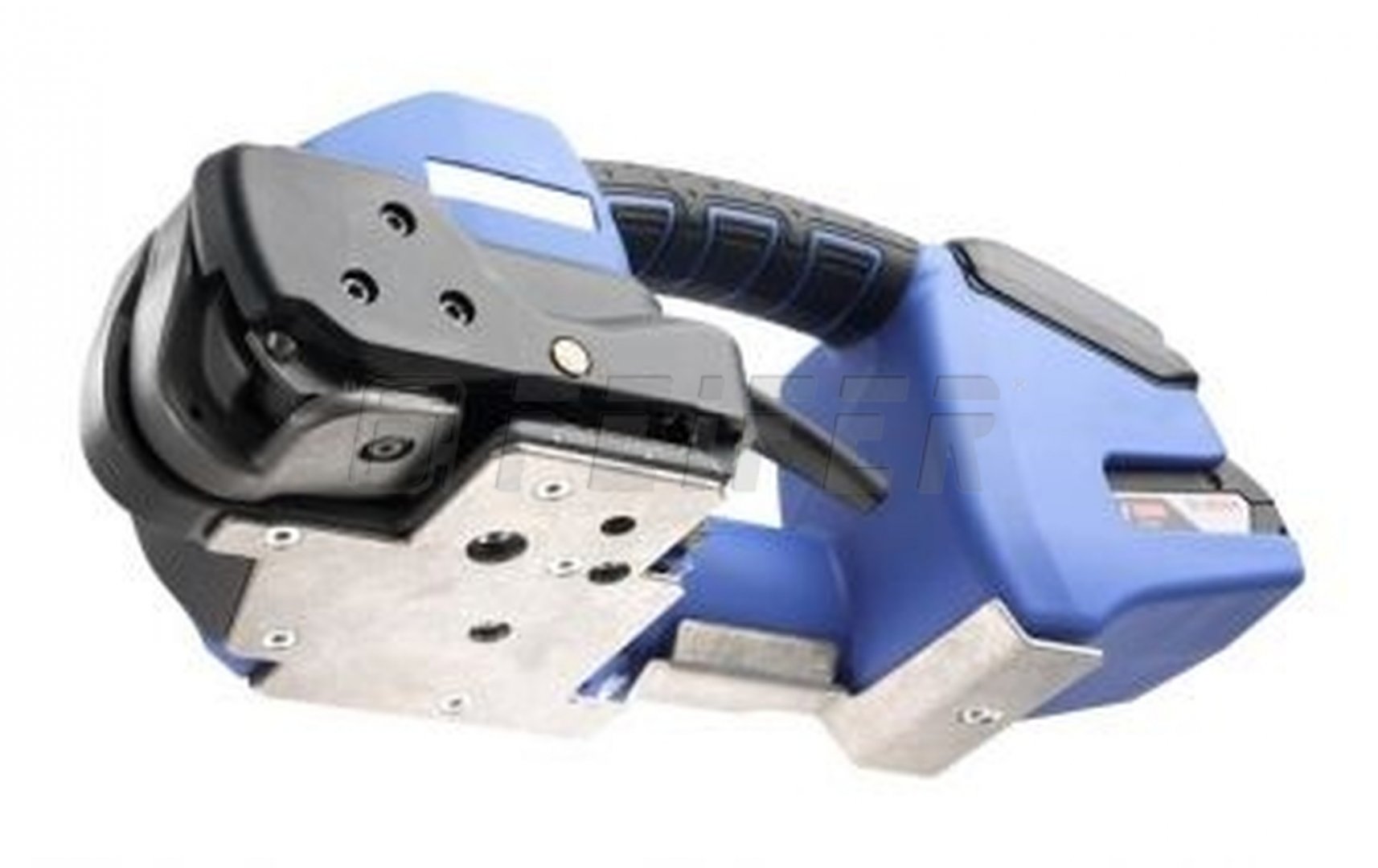

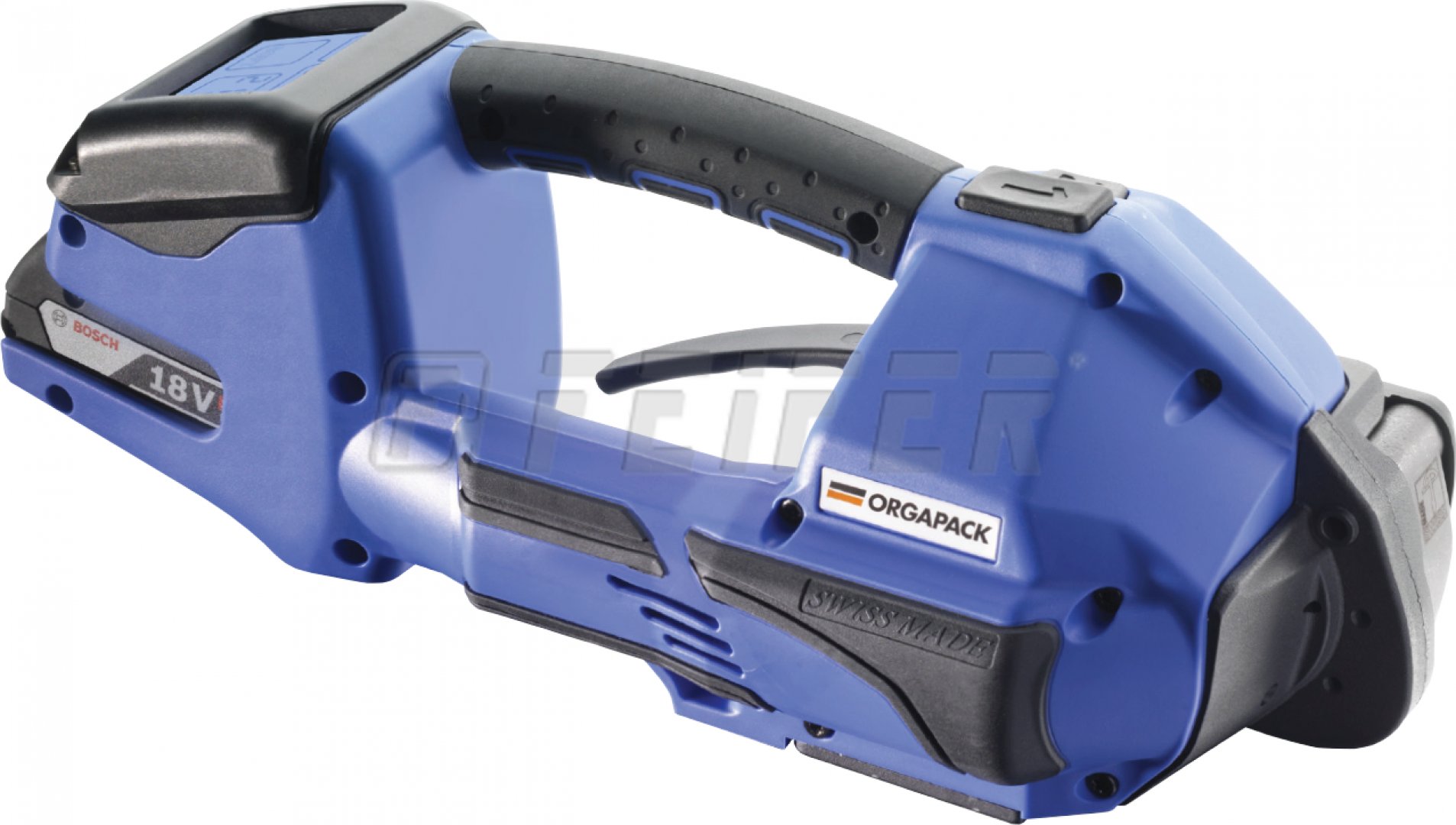

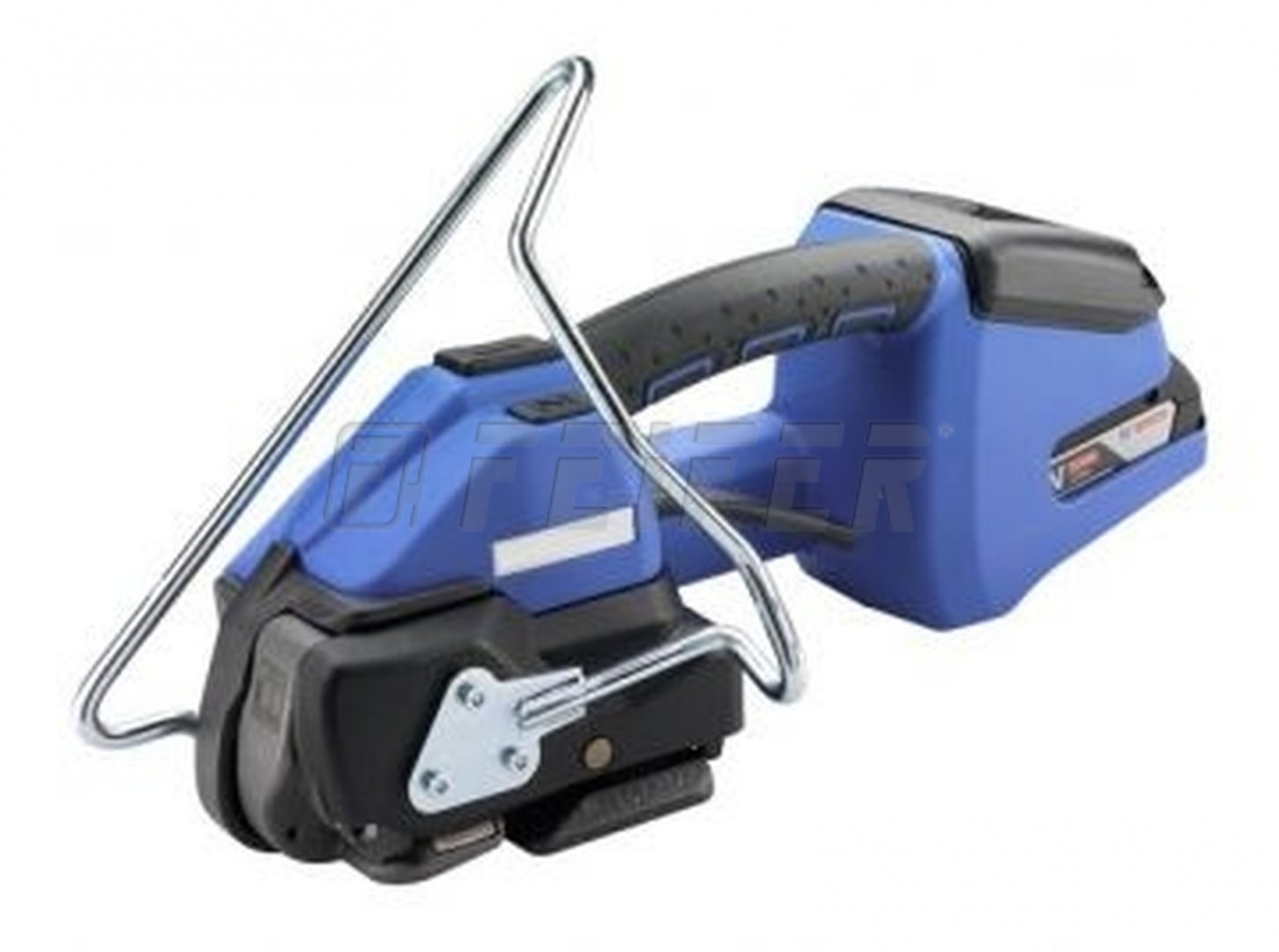

OR-T 450 - battery strapping tool for PP, PET strap
Battery strapping hand tools OR-T 450 that are suitable for pallets or groups of goods strapping with polypropylene (PP) or polyester (PET) strap without power supply needs. These models are equipped with automatic tightening and strap welding. These strapping tools can be used in three working modes:
- manual
- semi-automatic
- automatic

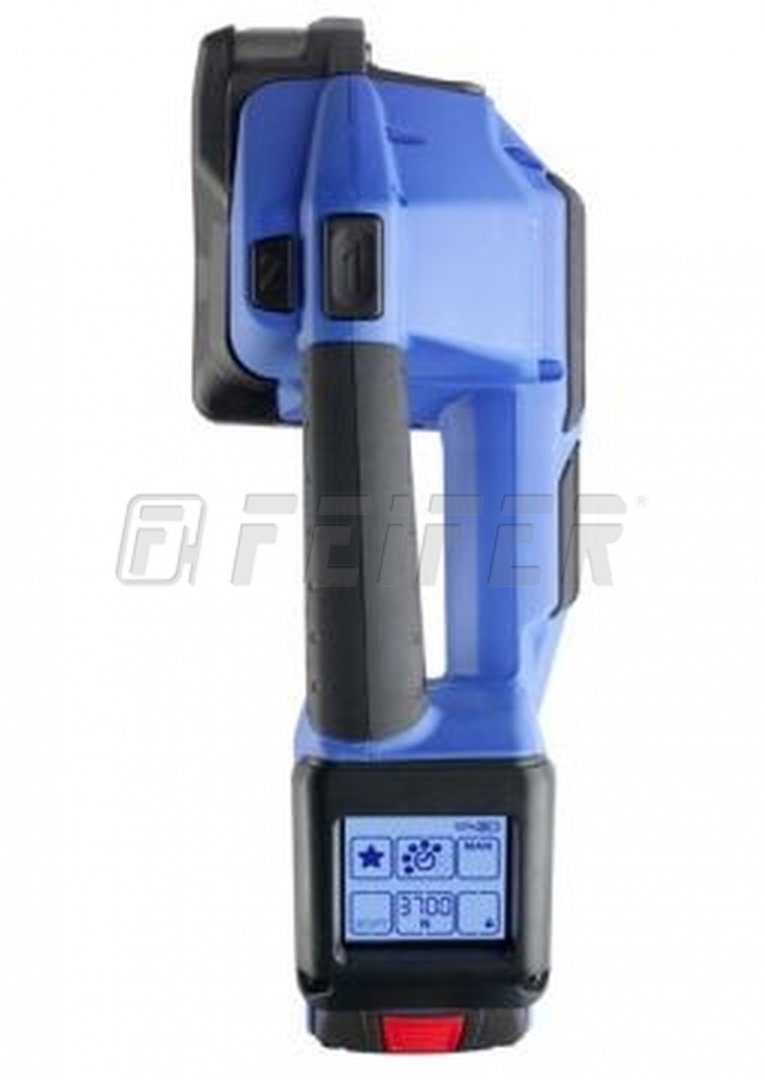

Thanks to their construction are balanced, lightweight, strong and very resistant to possible fall from working height. They are newly equipped with a touch display that allows the operator to easily set all the required parameters:
- Working mode
- Tightening power
- Welding time
The display also shows the current battery status, and the favorite strapping function can be preset to the tool memory. Thanks to its ease of use, processing quality and accuracy, the OR-T strapping tools belongs to the best-selling types of battery strapping tools.
Technical parameters
Modification
Accessories
Packing material
Spare part
Inquiry
Technical parameters
| ordering code | 700 022661 |
| strap - material |
PP PET |
| supply voltage | aku Li-Ion 18V, 4.0Ah |
| strap width | 15 - 16, 18 - 19 mm |
| strap thickness | 0,8 -1,3 mm |
| weight | 4,3 kg |
| sealing method | sealless |
| tightening power | 4500 N |
| qty of strapping cycles with 1 charge | max. 500 |
| battery charge time | 25-35 min. hour |
| machine length | 370 mm |
| machine width | 141 mm |
| machine height | 135 mm |
| max. tightening speed | 120 mm/s |
Standard modifications
OR-T 130 - battery strapping tool for PP, PET strap
- strap width 9 - 13 mm
- 18V Li-Ion high-capacity battery
- tightening power up to 1200N
- heavy duty construction
OR-T 260 - battery strapping tool for PP, PET strap
- strap width 12 - 16 mm
- 18V Li-Ion high-capacity battery
- high tightening power (2500N)
- heavy duty construction
Action
ZAPAK ZP90 - battery strapping tool for PP, PET
- strap width 9 - 13 mm
- 18V Li-Ion battery
- more efficient brushless motor
- higher battery capacity
Action
ZAPAK ZP93 - battery strapping tool for PP, PET
- strap width 9 - 16 mm
- 18V Li-Ion battery
- more efficient brushless motor
- higher battery capacity
Action
ZAPAK ZP97 - battery strapping tool for PP, PET
- strap width 15 - 19 mm
- 18V Li-Ion battery
- more efficient brushless motor
- higher battery capacity
Recommended accessories
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
OP-6 - decoiler for PP straps
- inner diameter - 400 mm
- spring brake of strap
- extra robust construction
- for high frequency jobs
OP-6E - decoiler for PP straps
- inner diameter - 200 and 400 mm
- simple screw brake on axis
- for low frequency jobs
OP-6EB - decoiler for PP straps
- inner diameter - 200 and 400 mm
- spring brake of strap
- for low frequency jobs
OP-10EB - decoiler for PP straps
- inner diameter - 200 mm
- spring brake of strap
- for low frequency jobs
Strap lance
- max. strap width - 35 mm
- easy strap threading under pallet
- for plastic and textile strap
ZP-5 - spring balancer for loading
- max. loading - 1-5 kg
- robust metal model (alloy)
- pre-tensioning by ergonom. rose
- safety device in case of break
OP-8 - decoiler for PP, PET, oscillated steel straps
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
Binding and packaging materials
PP strap 15 x 0,80 mm, 400/150 - 1500 m, 2700 N, black
- width 15 mm, thickness 0,80 mm
- black color
- strength 2700 N
- tube 400 mm, roll 1500 m
PP strap 19 x 0,90 mm, 200/190 - 1200 m, 4050 N, black
- width 19 mm, thickness 0,90 mm
- black color
- strength 4050 N
- tube 200 mm, roll 1200 m
PET strap 16 x 1,00 mm, 406/145 - 1200 m, 5700 N, green, EMBOSS 15%
- width 16 mm, thickness 1,00 mm
- green color
- strength 5700 N
- tube 406 mm, roll 1200 m
PET strap 19 x 1,00 mm, 406/145 - 850 m, 8000 N, green, EMBOSS 20%
- width 19 mm, thickness 1,00 mm
- green color
- strength 8000 N
- tube 406 mm, roll 850 m
