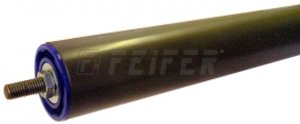

Plastic rollers

Types of conveyor rollers:

  • Type 1:
    • plastic or steel handling surface
    • ball bearing with a flexible shaft with diameter 8 mm
      • plastic rollers with loading capacity up to 7 kgs


  • ​Type 2:
    • plastic or steel handling surface
    • ball bearings
    • bearing plastic heads
      • plastic rollers with loading capacity up to 100 kgs with a flexible shaft

  • ​Type 3:
    • plastic or steel handling urface
    • ball bearings
    • bearing plastic heads
      • plastic rollers with loading capacity up to 100 kgs with a screw axis

  • ​Type 4:
    • steel handling surface
    • there are placed end of axis in plastic sleeves to eliminate surges to the frame of the conveyors
    • ball bearings
    • bearing plastic heads
      • plastic rollers with loading capacity up to 100 kgs with housings

More information

Plastic roller type 1, diam. 30, axis 8 mm, l=200 mm, 6 kg

Plastic roller type 1, diam. 30, axis 8 mm, l=200 mm, 6 kg
  • roller diam. 30 mm
  • shaft diam. 8 mm
  • lenght = 200 mm
  • load. capacity 6 kg

Plastic roller type 1, diam. 30, axis 8 mm, l=300 mm, 5 kg

Plastic roller type 1, diam. 30, axis 8 mm, l=300 mm, 5 kg
  • roller diam. 30 mm
  • shaft diam. 8 mm
  • lenght = 300 mm
  • load. capacity 5 kg

Plastic roller type 1, diam. 30, axis 8 mm, l=400 mm, 4 kg

Plastic roller type 1, diam. 30, axis 8 mm, l=400 mm, 4 kg
  • roller diam. 30 mm
  • shaft diam. 8 mm
  • lenght = 400 mm
  • load. capacity 4 kg

Plastic roller type 1, diam. 30, axis 8 mm, l=500 mm, 3,5 kg

Plastic roller type 1, diam. 30, axis 8 mm, l=500 mm, 3,5 kg
  • roller diam. 30 mm
  • shaft diam. 8 mm
  • lenght = 500 mm
  • load. capacity 3,5 kg

Plastic roller type 1, diam. 30, axis 8 mm, l=600 mm, 3 kg

Plastic roller type 1, diam. 30, axis 8 mm, l=600 mm, 3 kg
  • roller diam. 30 mm
  • shaft diam. 8 mm
  • lenght = 600 mm
  • load. capacity 3 kg

Plastic roller type 1, diam. 20, axis 8 mm, l=200 mm, 4 kg

Plastic roller type 1, diam. 20, axis 8 mm, l=200 mm, 4 kg
  • roller diam. 20 mm
  • shaft diam. 8 mm
  • lenght = 200 mm
  • load. capacity 4 kg

Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=200 mm, 35 kg

Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=200 mm, 35 kg
  • roller diam. 50 mm
  • shaft diam. 10 mm
  • lenght = 200 mm
  • load. capacity 35 kg

Plastic roller type 2, diam. 50, axis 10 mm/outer M10, l=200 mm, 35 kg

Plastic roller type 2, diam. 50, axis 10 mm/outer M10, l=200 mm, 35 kg
  • roller diam. 50 mm
  • shaft diam. 10 mm
  • lenght = 200 mm
  • load. capacity 35 kg

Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=300 mm, 30 kg

Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=300 mm, 30 kg
  • roller diam. 50 mm
  • shaft diam. 10 mm
  • lenght = 300 mm
  • load. capacity 30 kg

Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=400 mm, 25 kg

Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=400 mm, 25 kg
  • roller diam. 50 mm
  • shaft diam. 10 mm
  • lenght = 400 mm
  • load. capacity 25 kg

Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=500 mm, 20 kg

Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=500 mm, 20 kg
  • roller diam. 50 mm
  • shaft diam. 10 mm
  • lenght = 500 mm
  • load. capacity 20 kg

Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=600 mm, 15 kg

Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=600 mm, 15 kg
  • roller diam. 50 mm
  • shaft diam. 10 mm
  • lenght = 600 mm
  • load. capacity 15 kg

Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=800 mm, 15 kg

Plastic roller type 3, diam. 50, axis 10 mm/outer M10, l=800 mm, 15 kg
  • roller diam. 50 mm
  • shaft diam. 10 mm
  • lenght = 800 mm
  • load. capacity 15 kg

Plastic roller type 1, diam. 20, axis 8 mm, l=300 mm, 3 kg

Plastic roller type 1, diam. 20, axis 8 mm, l=300 mm, 3 kg
  • roller diam. 20 mm
  • shaft diam. 8 mm
  • lenght = 300 mm
  • load. capacity 3 kg

Plastic roller type 1, diam. 20, axis 8 mm, l=400 mm, 2 kg

Plastic roller type 1, diam. 20, axis 8 mm, l=400 mm, 2 kg
  • roller diam. 20 mm
  • shaft diam. 8 mm
  • lenght = 400 mm
  • load. capacity 2 kg
