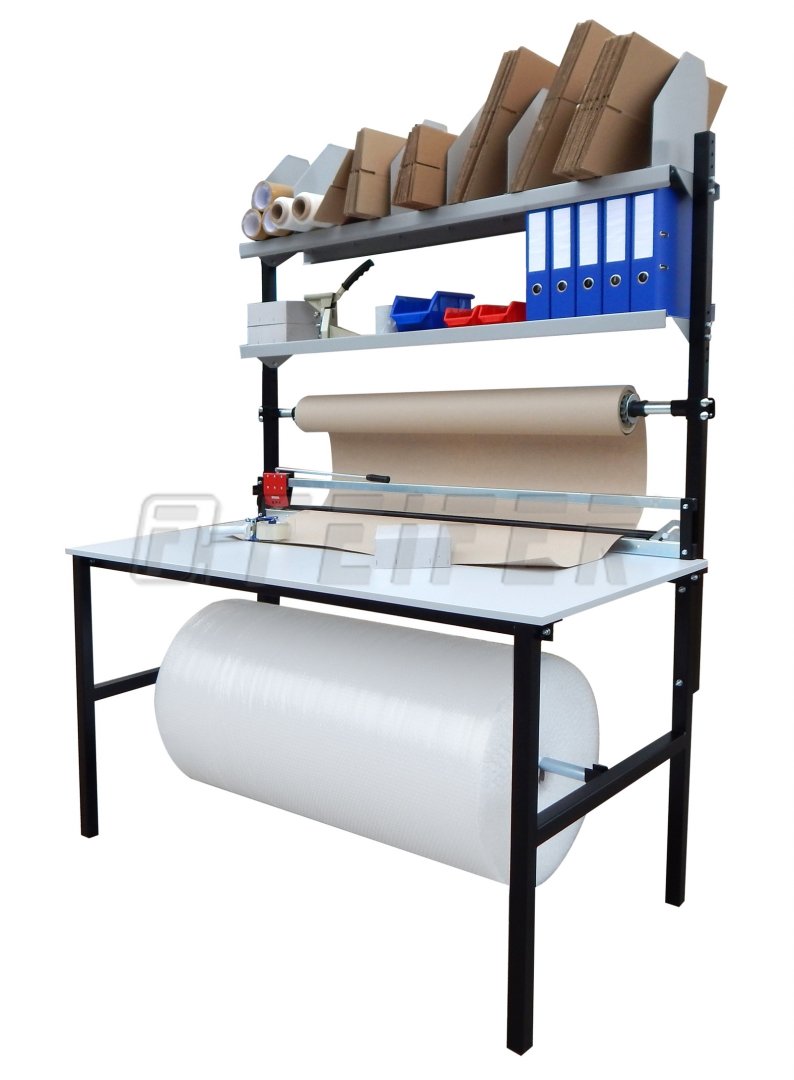

RHB-1250-2 - Packing workstation
This universal packing workstation is intended for packing areas and distribution centres where are used following roll wrapping materials: corrugated paper, wrapping paper, PE film, bubble film, PE film, etc.. Wrapping material gripper and a cutting cassette enable to cut easily and precisely demanded size of wrapping material. Reel bars are equipped with conical holders for optimal centring of roll core.
- is possible to deliver in parts or add there some other components (lighting,...)
- packing workstation optimizes whole wrapping process
- it is used for goods completing and packets wrapping
- minimized floor space
- desk can be linked to a conveyor system
- max. width of wrapping material - 1250 mm
- cylindrical pulley for easier guidance of paper from upper roll
- dimensions: 2000 x 980 x 2200 mm (l x w x h)
- max. loading is 80 kg for lower decoiler and 25 kg for upper decoiler
- set of extension legs for adjusting height of working desk on request
- adjustable height upper shelf with dividers for packing material (boxes, envelopes,...)
- robust working desk, adjustable height from 750 to 900 mm
- superstructure with attachment for one roll and panel holder for other tools or accessories
Technical parameters
Modification
Accessories
Inquiry
Technical parameters
ordering code | 600 001751 |
dimension (l x w x h) | 2000 X 980 X 2220 mm |
weight | 92 kg |
max. working width | 1250 mm |
max. diameter of the upper roll | 300 mm |
max. diameter of the under roll | 700 mm |
max. weight of the upper roll | 25 kg |
max. weight of the under roll | 80 kg |
Standard modifications
RHB-1000 - Packing workstation
- for goods completing and packets wrapping
- modular construction
- working desk 1425 x 980 mm
- with cutting stand (w.1000 mm)
RHB-1250 - Packing workstation
- for goods completing and packets wrapping
- modular construction
- working desk 1675 x 980 mm
- with cutting stand (w.1250 mm)
