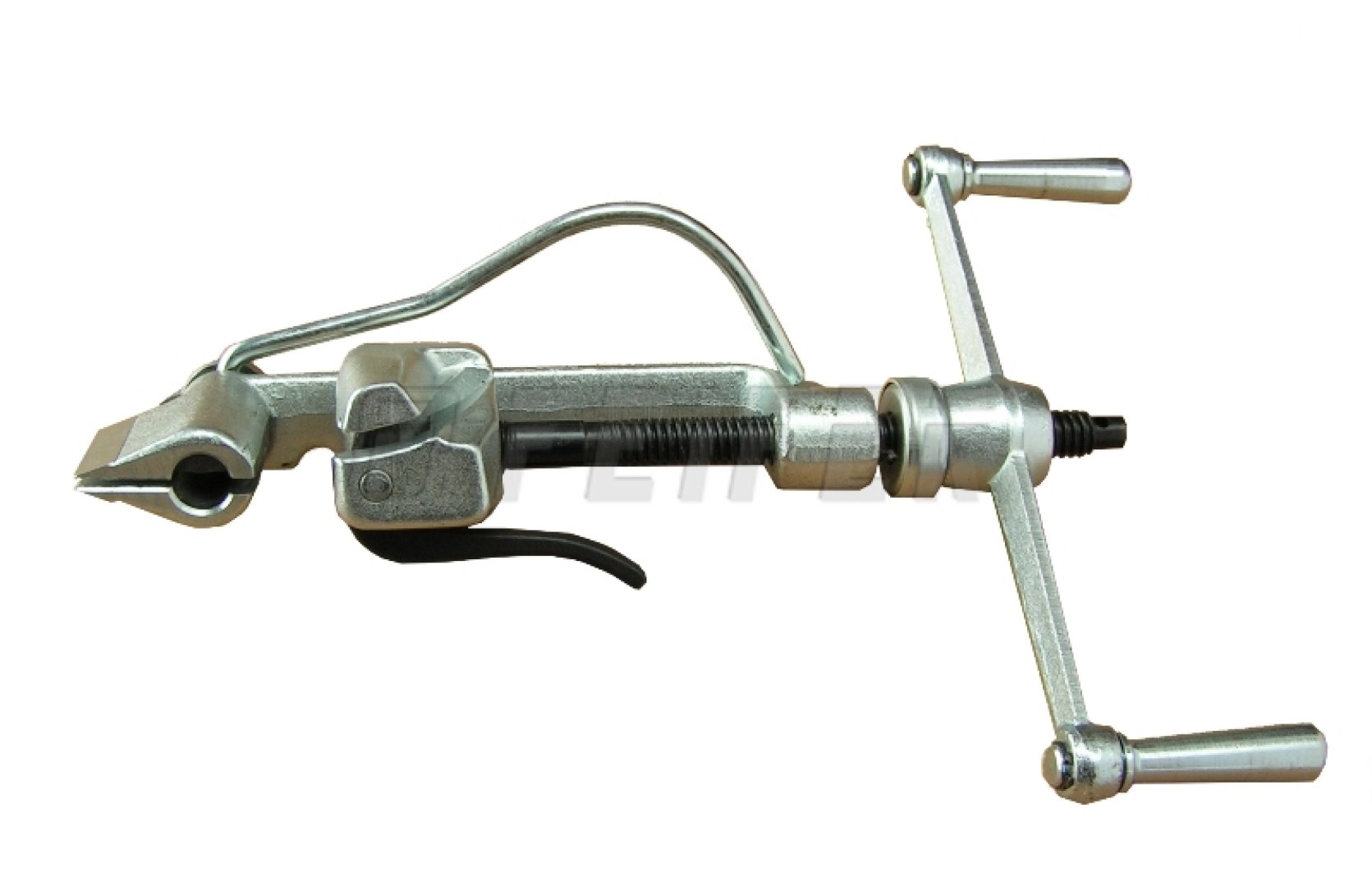

S-260 - strapping tool for steel straps

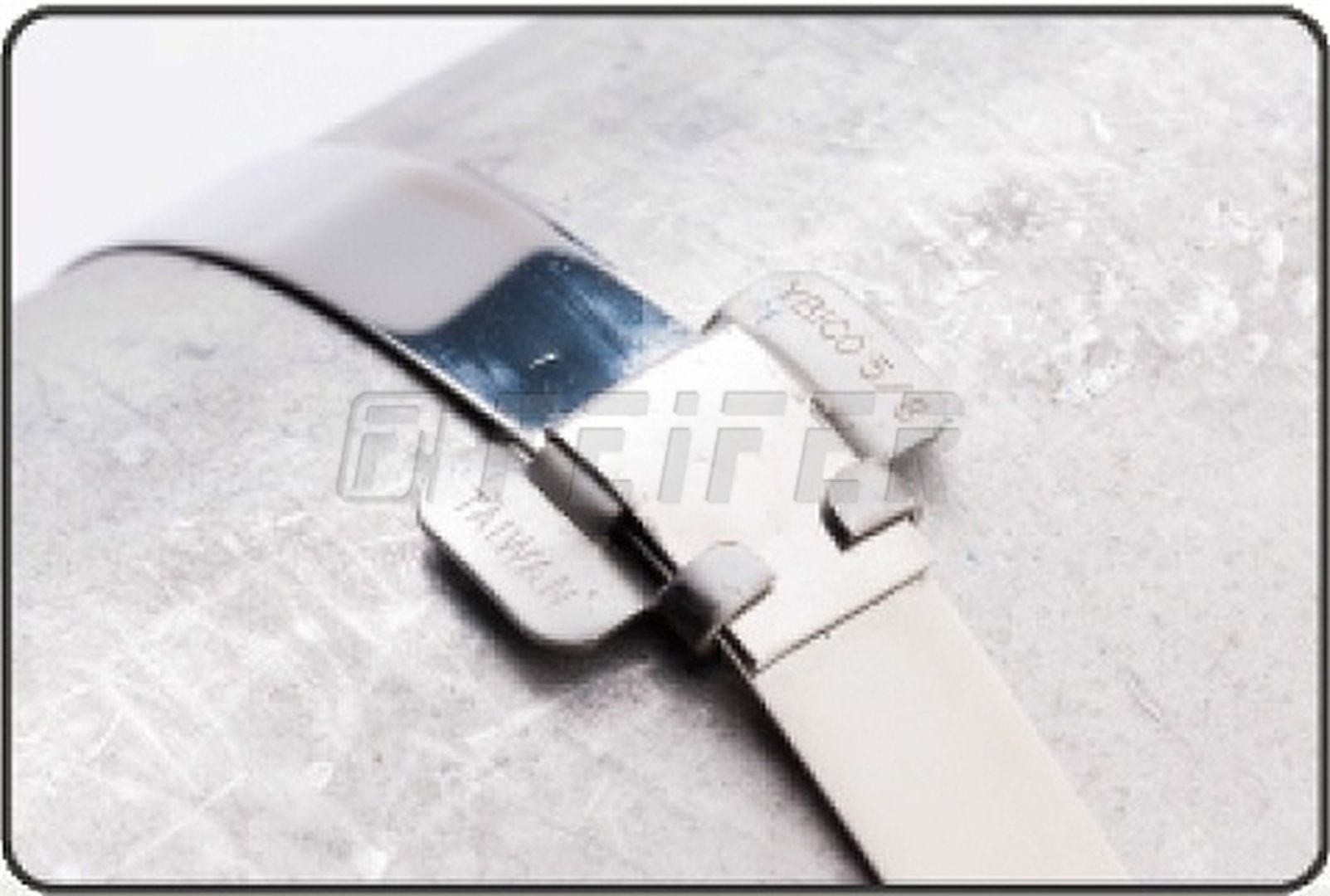

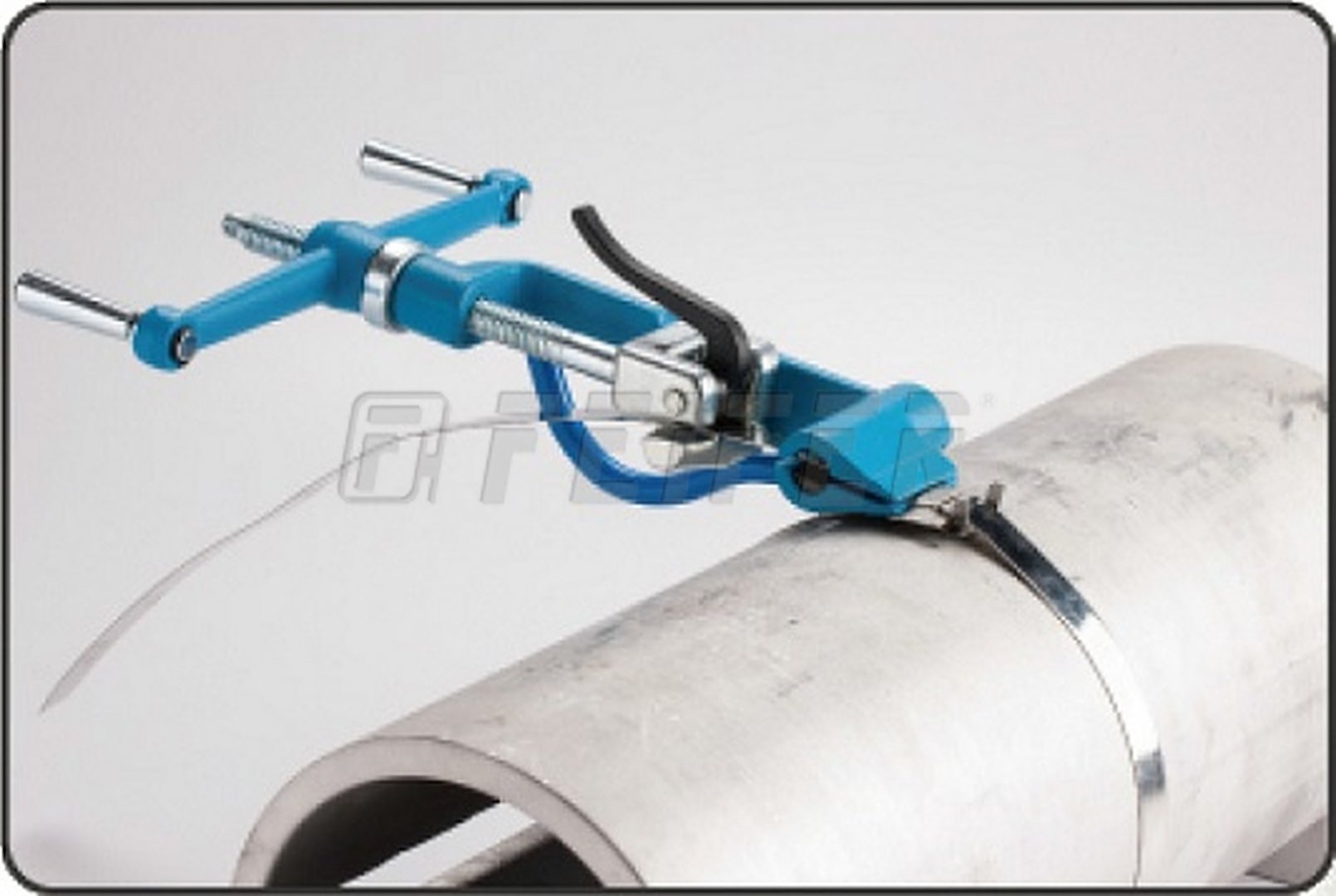

This strapping tool S-260 is designed for strapping round or irregularly shaped objects with stainless steel strap or steel strap. The joint is made with seal (type „R“). This tool is adjustable for width of the strap of 10, 13, 16, 20 mm and thickness of 0,4 - 0,6 mm.
- light construction
- screw tightening mechanism of strap
- for strapping eg. bundles of tubes, timber products as well as assembly of traffic signs, waste baskets on stands, etc.
Technical parameters
Accessories
Packing material
Spare part
Inquiry
Technical parameters
| ordering code | 700 001114 |
| strap - material |
steel |
| sealing method | seal type R |
| strap width | 10 - 20 mm |
| strap thickness | 0,4 - 0,76 mm |
| weight | 1,1 kg |
| tightening power | 2000 N |
Standard modifications
Recommended accessories
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
OP-5 - decoiler for ribbon steel straps
- strap width 13-20 mm
- spring brake of strap
- inner diameter 260-310 mm
- robust construction
OP-7 - decoiler for oscillated steel straps
- strap width - 13 - 20 mm
- spring brake of strap
- for oscillated winding
- robust construction
OP-21 - decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 610 mm
- unsuitable for low quality straps
OP-26 decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- unsuitable for low quality straps
OP-26E decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- for low frequency jobs
OP-26W decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 790 mm
- unsuitable for low quality straps
OP-8 - decoiler for PP, PET, oscillated steel straps
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
Binding and packaging materials
13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
- width 13 mm, thickness 0,5 mm
- strength 4485 N
- roll weight approx. 17 kgs
- inside diam. 300 mm
16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
- width 16 mm, thickness 0,5 mm
- strength 5520 N
- roll weight approx. 20 kgs
- inside diam. 300 mm
16 x 0,5 mm - steel strap (zinc coated, ribbon)
- width 16 mm, thickness 0,5 mm
- strength 5400 N
- roll weight approx. 25 kgs
- inside diam. 286 mm
16 x 0,4 mm - steel strap - stainless steel, 30 m
- width 16 mm, thickness 0,4 mm
- strength 3840 N
- roll weight approx. 1,55 kg
- roll lenght 30 m
19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
- width 19 mm, thickness 0,5 mm
- strength 7000 N
- roll weight approx. 27 kgs
- inside diam. 300 mm
19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding
- width 19 mm, thickness 0,6 mm
- strength 9120 N
- roll weight approx. 50 kgs
- inside diam. 406 (±5) mm
Steel seals R-13 (13 mm, 202400)
- seal width - 13 mm
- for steel strap
- packaging - 2000 pcs
Steel seals R-16 (16 mm, 202700)
- seal width - 16 mm
- for steel strap
- packaging - 1800 pcs
Stainless steel seals R-16
- seal width - 16 mm
- for steel strap
- packaging - 100 pcs
Steel seals R-20 (20 mm, 203000)
- seal width - 20 mm
- for steel strap
- packaging - 1300 pcs
