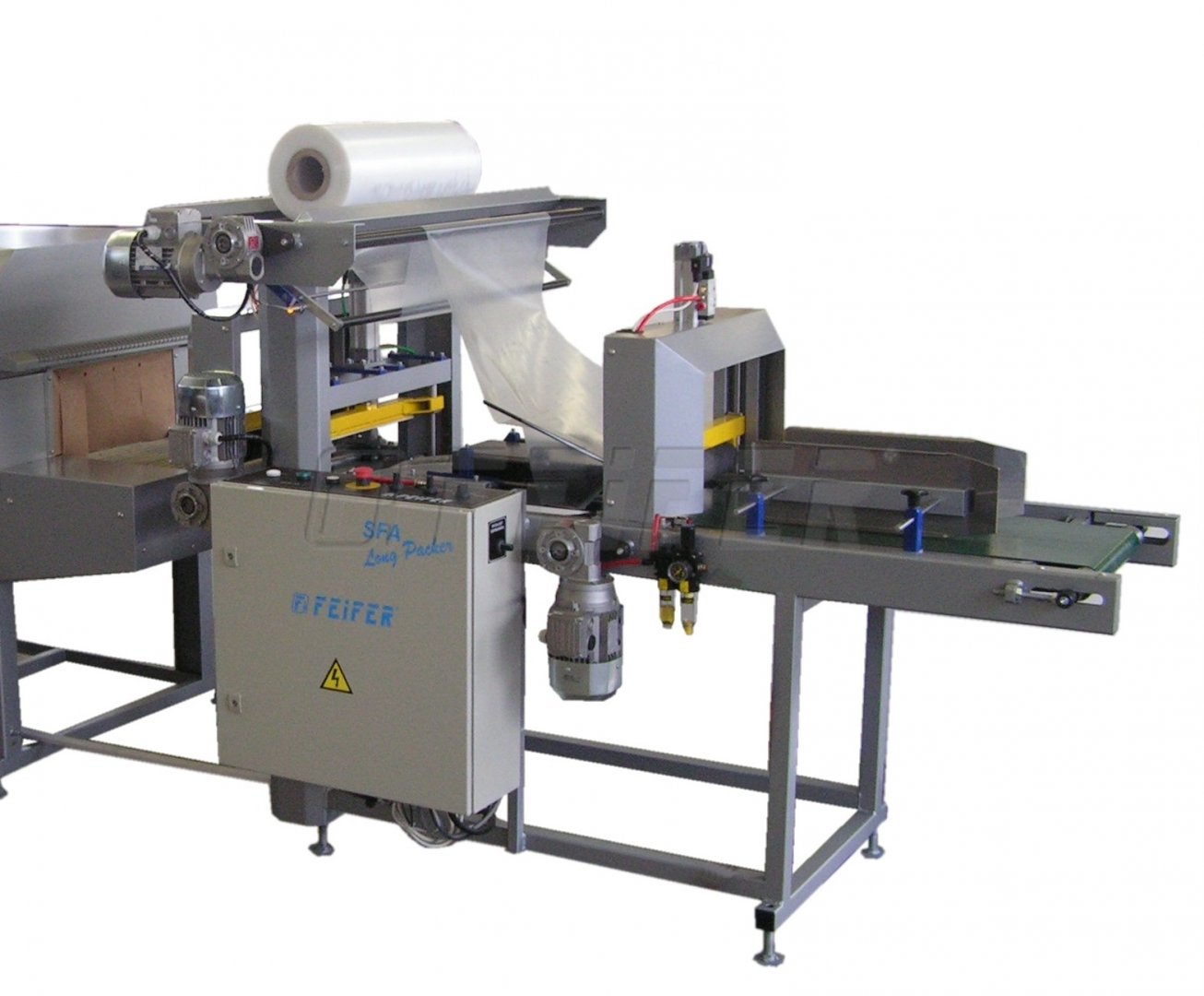

SFA-35 LONG PACKER - automatic film wrapping machine
Automatic wrapping machine SFA-35 LONG PACKER suitable for long objects wrapping (PE foil), e.g. wooden boards, floor planks, furniture shelves, etc. It is designed for usage in operations with series production. Suitable for wrapping individual pieces but as well as for group wrapping. Applicable for operations with medium wrapping capacity. The machine has automatic wrapping cycle (an operator only inserts objects intended for wrapping, if it is not already performed by conveyor system). Flat foil is used for wrapping.
Among other advantages of this machine belong:
- utomatic sensing of beginning and end of a wrapping object
- adjustable parameters of cross seal joints according to kind of foil
After performing wrapping cycle on the machine SFA the product is ready for shrinking in a hot air shrink tunnel (e.g. type HOLITERM). The machine is electrically and also mechanically designed for a possibility of a direct connection to a conveyor system.
Technical parameters
ordering code | 600 000315 |
supply voltage | 400V/50Hz |
max. wrapping height | 120 mm |
power input | 2,5 kW |
compressed air | 4 - 6,5 bar |
material - foil |
PE shrink foil |
film thickness | 90 µm |
max. packing width | 200 mm |
height of conveyor on input and output | 800 - 900 mm |
machine length | 1500 mm |
machine width | 1300 mm |
machine height | 1300 mm |
weight | 300 kg |
Standard modifications
SFA-50 LONG PACKER - automatic film wrapping machine
- for long objects (wooden boards..)
- suitable for flat LDPE films
- fully closed compact wrapping
- for medium frequency jobs
