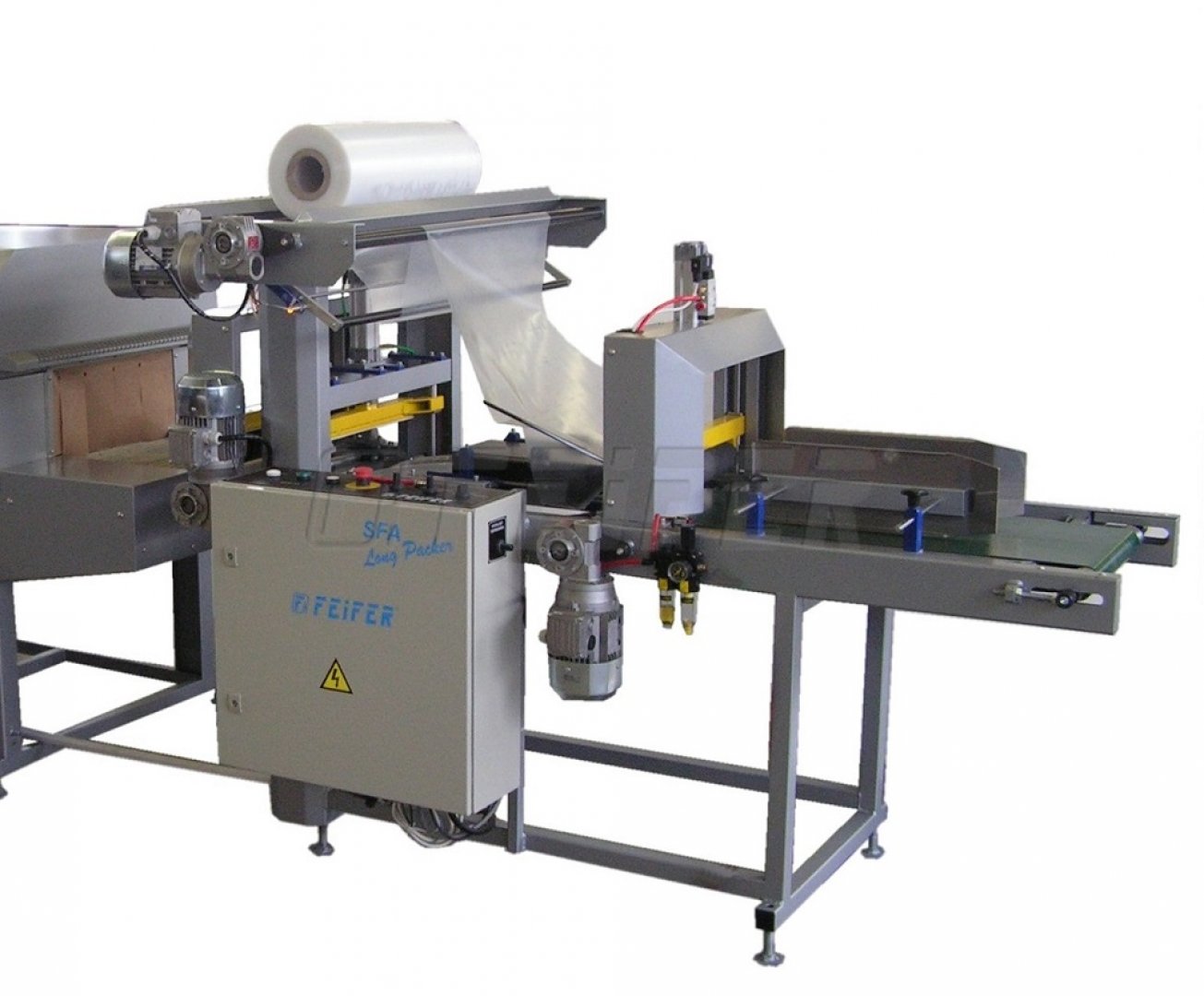

SFA-50 LONG PACKER - automatic film wrapping machine
Automatic wrapping machine SFA-50 Long Packer is especially desgined for packing of long items into PE film, eg. boards, flooring, etc. The machine is designed for use in a plant with serial production. It can be used for packaging of indiviual pieces and for group packaging. The wrapping machine is suitable for medium packaging capacity. The machine has an automatic mode of operation (the operator simply inserts items if this is not solved with conveyor system), packaging is carried out into the flat film.
Among advantages of this machine belong:
- automatic scanning of beginning and end of packaged item
- adjustable parameters transverse weild according to the type of film
Wrapping machines SFA are intended for use in combination with a suitable shrink tunnel eg. HR-Holiterm series. The wrapping machine is electrically and mechanically designed for the possibility of direct connection to the conveyor system.
Technical parameters
ordering code | 600 000340 |
supply voltage | 400V/50Hz |
max. wrapping height | 150 mm |
power input | 2,5 kW |
compressed air | 4 - 6,5 bar |
material - foil |
PE shrink foil |
film thickness | 90 µm |
max. packing width | 300 mm |
height of conveyor on input and output | 800 - 900 mm |
machine length | 1500 mm |
machine width | 1500 mm |
machine height | 1300 mm |
weight | 350 kg |
Standard modifications
SFA-35 LONG PACKER - automatic film wrapping machine
- for long objects (wooden boards..)
- suitable for flat LDPE films
- fully closed compact wrapping
- for medium frequency jobs
