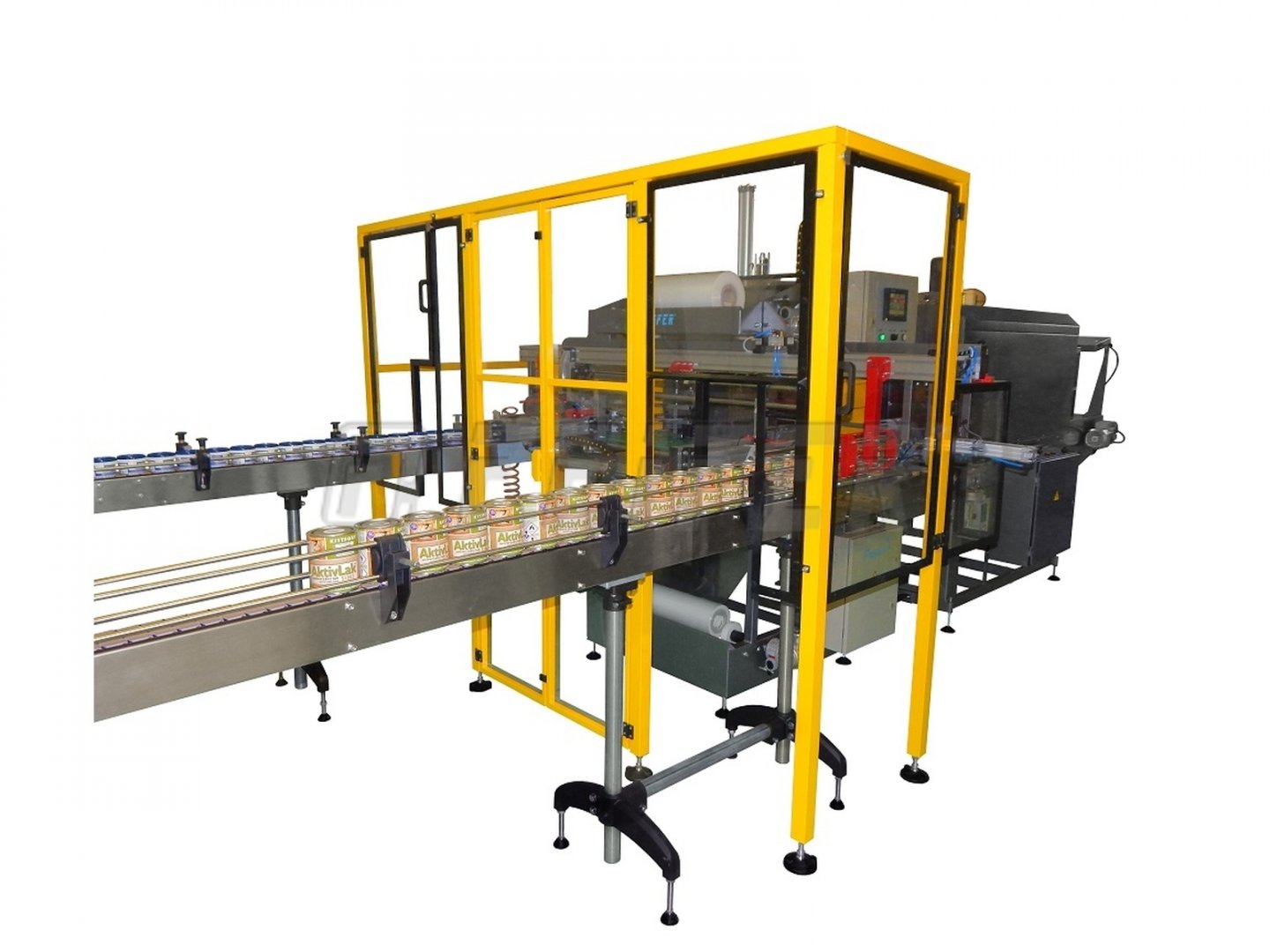

SL-70 PET DI PROFESSOR - automatic film wrapping machine

Film packaging machines of the "SL PET DI PROFESSOR" model series are primarily intended for group packaging of items such as glass or PET bottles, cans, box drinks (TETRA PAK), bags with a block bottom, etc. The machines are especially suitable for packaging into flat LDPE foil. The machines are equipped with a pneumatic holder in the basic version, which fixes the packaged group of goods at the time of film welding, which is especially suitable for packages with lower stability.

Due to the fully electronic control, these machines can be used both in fully automatic lines (with the assumption of product supply by the conveyor belt), and for packaging with manual operation.

SL-PET DI packaging machines use maintenance-free welding jaw technology with digital temperature control, all machine functions are always controlled via a PLC module.

SL-PET DI Professor packages are fully modular and can be individually adapted to the wishes and needs of the customer.

Technical parameters
Accessories
Inquiry

Technical parameters

ordering code 600 001389
supply voltage 400V/50Hz
power input 1,5 kW
compressed air 4 - 6,5 bar
material - foil PE
POF
max. film thickness 90 µm
max. packing width 650 mm
conveyor height 890 - 990 mm
transporting speed 2-11 m/min.
max. machine capacity 10 - 14 cycles/min.
machine length 1600 mm
machine width 2150 mm
machine height 2000 mm
weight 450 kg

Standard modifications

Recommended accessories

HR-5023 HOLITERM - industrial shrink tunnel

HR-5023 HOLITERM - industrial shrink tunnel
  • passage size - 500 x 230 mm
  • EXTRAJET technology - significantly lower energy consumption
  • for high frequency jobs

HR-5040 HOLITERM - industrial shrink tunnel

HR-5040 HOLITERM - industrial shrink tunnel
  • passage size - 500 x 400 mm
  • EXTRAJET technology - significantly lower energy consumption
  • for high frequency jobs

HR-6823 HOLITERM - industrial shrink tunnel

HR-6823 HOLITERM - industrial shrink tunnel
  • passage size - 680 x 230 mm
  • EXTRAJET technology - significantly lower energy consumption
  • for high frequency jobs

HR-6840 HOLITERM - industrial shrink tunnel

HR-6840 HOLITERM - industrial shrink tunnel
  • passage size - 680 x 400 mm
  • EXTRAJET technology - significantly lower energy consumption
  • for high frequency jobs
