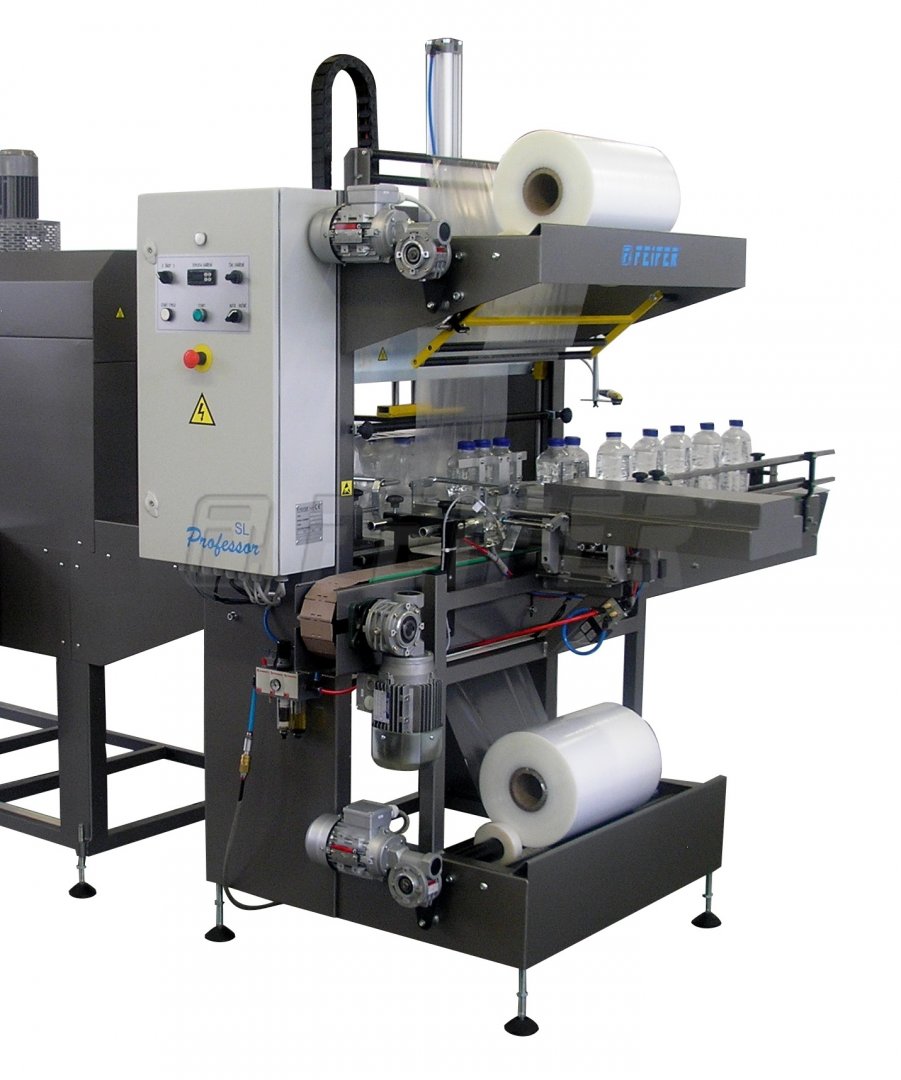

SL-70 PET PROFESSOR - automatic film wrapping machine

Film wrapping machines SL-70 PET PROFESSOR series „SL-PET PROFESSOR“ in a base modification are intended mainly for group wrapping, e.g. glass or PET bottles, cans, drinks in boxes (TETRA PAK), block bags and of course for similar industrial and food products. They are suitable for LDPE films. Maximal operation rate is 14 cycles/min.



The wrapping machines in a base modification are equipped with a pneumatic holder, which fixes wrapped group of goods during sealing time. That is suitable for unsteady goods. Due to a fully electronic control it is possible to use these machines both in a full-automatic process with conveyors and also for manual wrapping. The machines are also equipped with a maintenance-free sealing jaw with a digital temperature regulation. The wrapping machines series SL-PET PROFESSOR are fully modular and can be customized according to customer needs.

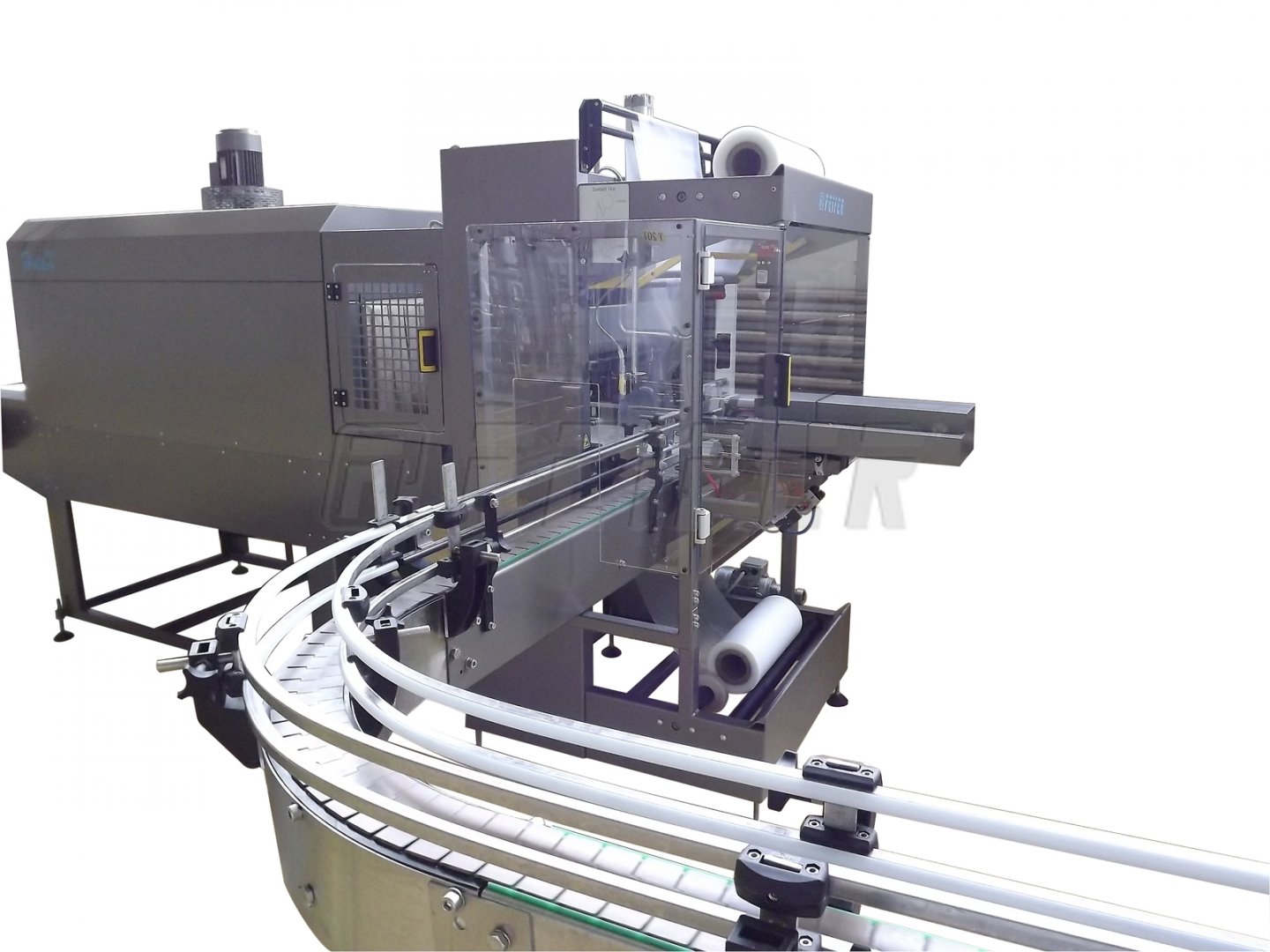

The wrapping machine can be used with shrink tunnel (e.g. HR-Holiterm).

Technical parameters
Accessories
Product videos
Inquiry

Technical parameters

ordering code 600 000059
supply voltage 400V/50Hz
power input 1,5 kW
compressed air 4 - 6,5 bar
material - foil PE
POF
max. film thickness 90 µm
max. packing width 650 mm
conveyor height 890 - 990 mm
transporting speed 2-11 m/min.
max. machine capacity až 14 cycles/min.
machine length 1600 mm
machine width 2150 mm
machine height 2000 mm
weight 300 kg

Standard modifications

Recommended accessories

HR-5023 HOLITERM - industrial shrink tunnel

HR-5023 HOLITERM - industrial shrink tunnel
  • passage size - 500 x 230 mm
  • EXTRAJET technology - significantly lower energy consumption
  • for high frequency jobs

HR-5040 HOLITERM - industrial shrink tunnel

HR-5040 HOLITERM - industrial shrink tunnel
  • passage size - 500 x 400 mm
  • EXTRAJET technology - significantly lower energy consumption
  • for high frequency jobs

HR-6823 HOLITERM - industrial shrink tunnel

HR-6823 HOLITERM - industrial shrink tunnel
  • passage size - 680 x 230 mm
  • EXTRAJET technology - significantly lower energy consumption
  • for high frequency jobs

HR-6840 HOLITERM - industrial shrink tunnel

HR-6840 HOLITERM - industrial shrink tunnel
  • passage size - 680 x 400 mm
  • EXTRAJET technology - significantly lower energy consumption
  • for high frequency jobs
