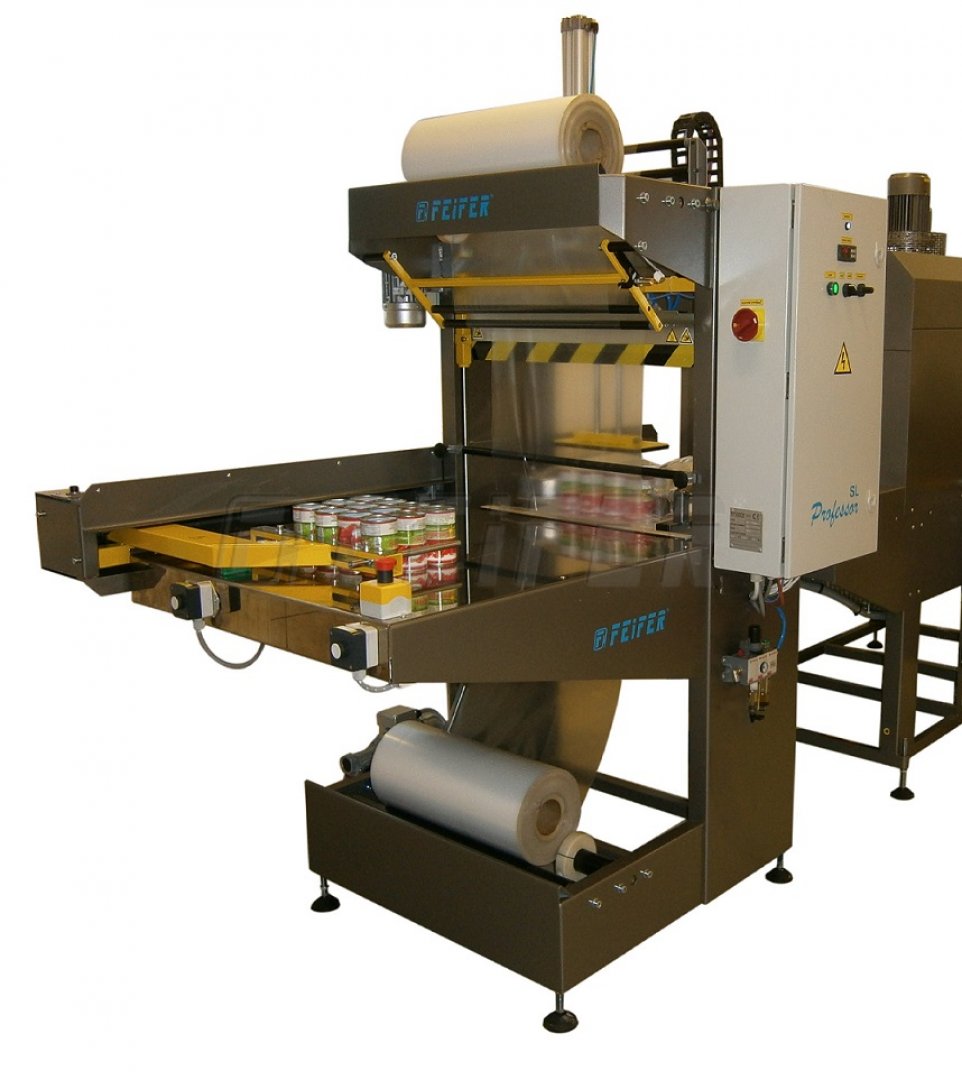

SL-70SA PROFESSOR - semi-automatic film wrapping machine
Semi-automatic foil wrapping machine SL-70SA PROFESSOR is designed for medium or small frequency wrapping jobs (up to 10 cycles / min.). The machine has universal use – thanks to manual load of goods, the machine can be used for single as well as for group wrapping. It is suitable for PE foils (LDPE). The machine has manual load into infeed area, the whole wrapping cycle is performed automatically.
Among other advantages of this wrapping machine belong:
- maintenance-free, constantly heated sealing jaw
- electronic sealing temperature control
- pneumatic input to seal
- sealing time controller
- automatic foil unwinding with brake
- minimal outside dimensions
- left or right version.
The wrapping machine can be used only with shrink tunnel (optional change of wrapping height is free of charge).
Technical parameters
Accessories
Inquiry
Technical parameters
| ordering code | 600 000703 |
| supply voltage | 400V/50Hz |
| power input | 2 kW |
| max. film dimension (width x diameter) | 650 x 300 mm |
| compressed air | 4 - 6,5 bar |
| material - foil |
LDPE stretch |
| film thickness | 90 µm |
| machine length | 1350 mm |
| machine width | 1360 mm |
| machine height | 2150 mm |
| working desk height | 1000 mm |
| weight | 350 kg |
Standard modifications
Recommended accessories
HR-5023 HOLITERM - industrial shrink tunnel
- passage size - 500 x 230 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
HR-5040 HOLITERM - industrial shrink tunnel
- passage size - 500 x 400 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
HR-6823 HOLITERM - industrial shrink tunnel
- passage size - 680 x 230 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
HR-6840 HOLITERM - industrial shrink tunnel
- passage size - 680 x 400 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
