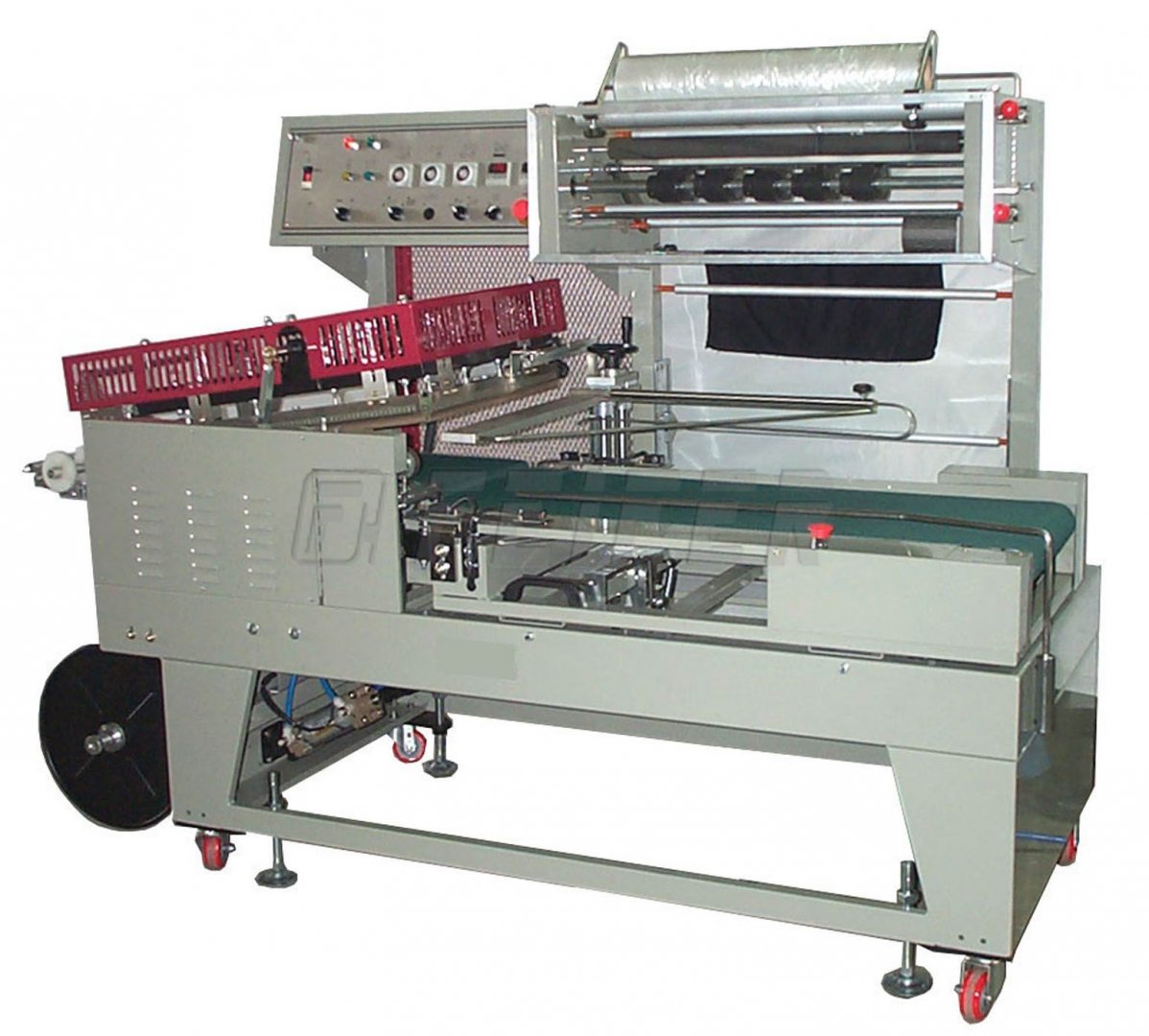

TY-701-120S - automatic film wrapping machine
Automatic wrapping machine TY-701-120A is designed for wrapping of consumer goods, printed materials, plastic, products, etc. with using of shrink foil (POF, PE, PP, PVC, half tube). This wrapping machine is suitable for medium or high capacity (up to 25 cycles/min.).
Among main advantages of this wrapping machine belong:
- pneumatically closing sealer (high service life) which is permanently heated
- fluently ajdustable welding time
- temperature control independently for the cross and longitudinal part
- foil perfotartor for subsequent easy shrinking in the tunnel
- fully adjustable conveyor speed
- optical scanning of packaged item lenght
- possibility of program option through temporal frequency
- machine control via PLC
Easy operation: An operator sets kind and dimensions of wrapped item and then put the item to the input conveyor. Then will be packaging automatically done. There are used optical sensors to check dimensions of wrapped item which by using of front and rear edge of the item will provide an accurate overlap of foil which will be most stretched and smoothed.
Technical parameters
Modification
Accessories
Inquiry
Technical parameters
| ordering code | 700 009362 |
| supply voltage | 240V/50Hz |
| power input | 1,5 kW |
| compressed air | 4 - 8 bar |
| material - foil |
PE PVC PP POF |
| film thickness | 35 µm |
| max. packing width | 60 - 300 mm |
| recommended length of wrapped object | 100 - 500 mm |
| roll type |
center folded foil |
| machine length | 2050 mm |
| machine width | 1000 mm |
| machine height | 1580 mm |
| weight | 450 kg |
Standard modifications
TY-701-3000L-06 LONG PACKER II. - automatic film wrapping machine
- for long objects (wooden boards..)
- for POF and PE films
- fully closed compact wrapping
- for high frequency jobs
Recommended accessories
Driven belt conveyor 4000x400 mm
- fluent speed regulation
- track width - 400 mm
- conveyor length - 4 m
